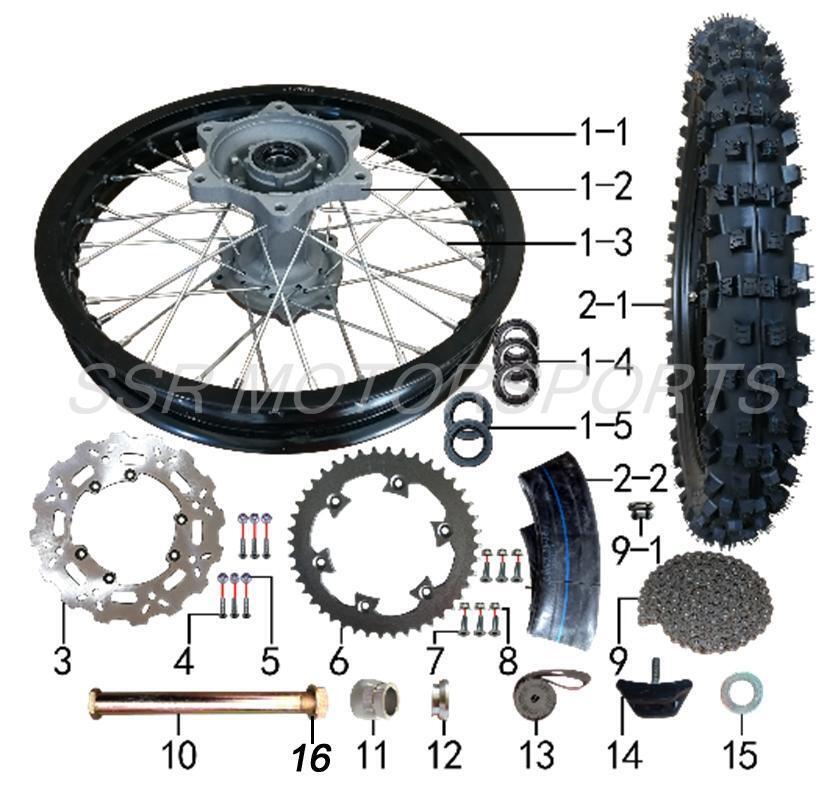

Rear Wheel
CLICK PARTS TO ADD
| NO. | PART # | DESCRIPTION | RETAIL | QTY |
|---|---|---|---|---|
| 1 | A00252-18-00 | REAR WHEEL ASSY 1.85-16 | $162.80 | 1 |
| 1-1 | A00253-18-00 | REAR RIM 1.85-16 | $82.30 | 1 |
| 1-2 | A00254-18-00 | REAR HUB | $106.80 | 1 |
| 1-3 | A00255-18-00 | REAR SPOKE W/ NIPPLE | $2.50 | 36 |
| 1-4 | A00110-28-00 | BEARING 6005 | $14.00 | 3 |
| 1-5 | A00076-26-00 | DUST SEAL 30X47X7 | $3.50 | 2 |
| 2-1 | A00601-18-00 | REAR TIRE 90/100-16 INNOVA | $105.00 | 1 |
| 2-2 | A00259-18-00 | REAR INNER TUBE | $19.30 | 1 |
| 3 | A00735-04-00 | REAR BRAKE ROTOR | $63.00 | 1 |
| 4 | A00489-19-03 | HEX BOLT M6X20 | $2.00 | 6 |
| 5 | A00005-22-04 | FLANGE LOCKNUT M6 | $2.00 | 6 |
| 6 | A00446-07-00 | REAR SPROCKET 45T | $45.50 | 1 |
| 7 | A00289-07-00 | CS ALLEN BOLT M8X35 | $2.00 | 6 |
| 8 | A00100-22-34 | FLANGE LOCKNUT M8 | $2.00 | 6 |
| 9 | A00447-07-00 | DRIVE CHAIN 520-110L | $72.50 | 1 |
| 9-1 | A00350-07-01 | DRIVE CHAIN LINK 520 | $4.40 | 1 |
| 10 | A00261-18-00 | REAR AXLE M25X242 | $40.30 | 1 |
| 11 | A00565-18-00 | REAR AXLE SPACER (L) | $4.40 | 1 |
| 12 | A00566-18-00 | REAR AXLE SPACER (R) | $4.40 | 1 |
| 13 | A00267-18-00 | REAR RIM STRIP 16" | $8.80 | 1 |
| 14 | A00264-18-00 | RIM LOCK 1.85 | $14.00 | 1 |
| 15 | A00109-21-01 | WASHER M25 | $2.00 | 1 |
| 16 | A00087-22-01 | REAR AXLE NUT M25 | $8.80 | 1 |
