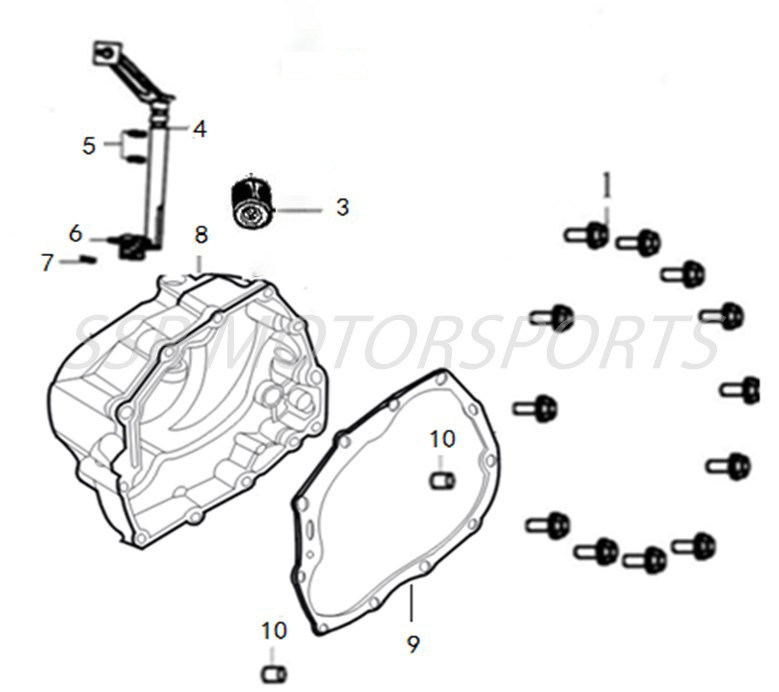

Right Crankcase Cover
CLICK PARTS TO ADD
| NO. | PART # | DESCRIPTION | RETAIL | QTY |
|---|---|---|---|---|
| 1 | A00426-19-08 | CASE FLANGE BOLT M6X40 | $2.00 | 10 |
| 3 | A02233-09-00 | OIL LEVEL WINDOW | $8.00 | 1 |
| 4 | A03089-09-00 | CLUTCH ACTUATOR LEVER | $3.50 | 1 |
| 5 | A00140-27-00 | O-RING 8.8X1.9 | $2.00 | 2 |
| 6 | A03090-09-00 | CLUTCH RELEASE SPRING | $2.50 | 1 |
| 7 | A00003-25-03 | ROLL PIN 3.2X16 | $2.00 | 1 |
| 8 | A03091-09-00 | CLUTCH COVER | $92.80 | 1 |
| 9 | A00313-13-00 | CLUTCH COVER GASKET | $24.50 | 1 |
| 10 | A00001-23-00 | DOWEL PIN M8X14 | $2.00 | 2 |
