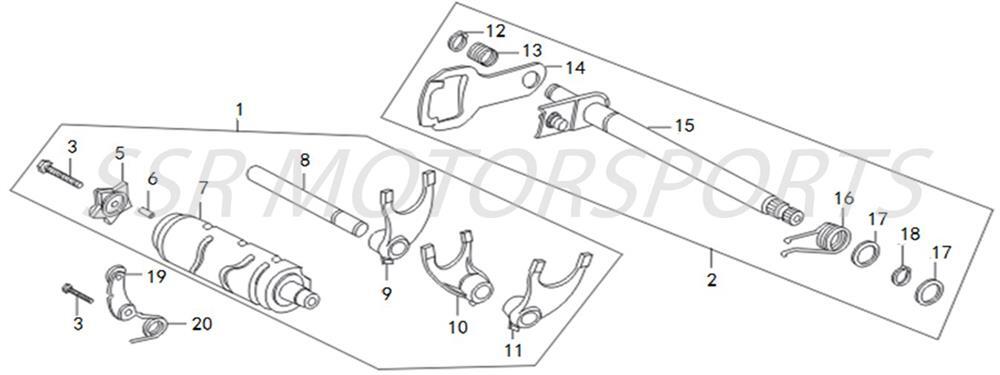

Shift Drum
CLICK PARTS TO ADD
| NO. | PART # | DESCRIPTION | RETAIL | QTY |
|---|---|---|---|---|
| 1 | A03146-09-00 | SHIFT DRUM ASSY | $173.30 | 1 |
| 2 | A03147-09-00 | SHIFT SHAFT ASSY | $78.80 | 1 |
| 3 | A00003-19-01 | FLANGE BOLT M6X25 | $2.00 | 2 |
| 5 | A03148-09-00 | GEAR SHIFT CAM | $19.30 | 1 |
| 6 | A00002-25-03 | PIN 4X10 | $2.00 | 1 |
| 7 | A03149-09-00 | SHIFT DRUM | $115.50 | 1 |
| 8 | A03150-09-00 | SHIFT FORK SHAFT | $12.30 | 1 |
| 9 | A03151-09-00 | RIGHT SHIFT FORK | $19.30 | 1 |
| 10 | A03152-09-00 | MIDDLE SHIFT FORK | $19.30 | 1 |
| 11 | A03153-09-00 | LEFT SHIFT FORK | $19.30 | 1 |
| 12 | A00003-24-07 | CIRCLIP 12 | $2.50 | 1 |
| 13 | A03154-09-00 | GEAR SHIFT RETURN SPRING | $2.50 | 1 |
| 14 | A03155-09-00 | GEAR SHIFT PLATE | $12.30 | 1 |
| 15 | A03156-09-00 | GEAR SHIFT SHAFT | $59.50 | 1 |
| 16 | A03157-09-00 | GEAR SHIFT PLATE SPRING | $4.40 | 1 |
| 17 | A00270-21-06 | THRUST WASHER 14X20X0.5 | $2.50 | 2 |
| 18 | A00005-24-07 | CIRCLIP 14 | $2.00 | 1 |
| 19 | A03158-09-00 | GEAR SHIFT STOPPER | $8.00 | 1 |
| 20 | A03159-09-00 | STOPPER SPRING | $2.50 | 1 |
