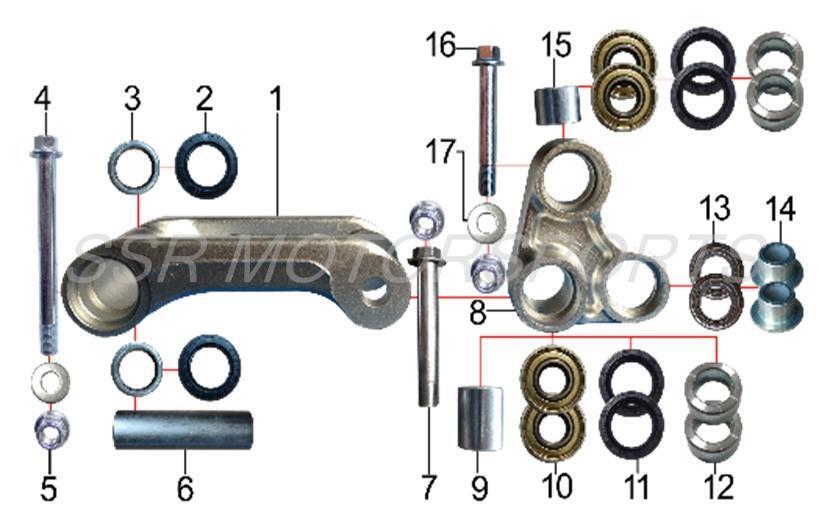

Suspension Linkage
CLICK PARTS TO ADD
| NO. | PART # | DESCRIPTION | RETAIL | QTY |
|---|---|---|---|---|
| 1 | A00695-16-00 | ROD LINK | $38.50 | 1 |
| 2 | A00034-26-00 | DUST SEAL 20X32X5 | $2.60 | 2 |
| 3 | A00064-28-00 | NEEDLE BEARING HK2012 | $26.30 | 2 |
| 4 | A00018-19-01 | FLANGE BOLT M12X120 | $6.10 | 1 |
| 5 | A00001-22-03 | FLANGE LOCKNUT M12 | $2.50 | 3 |
| 6 | A00709-16-00 | BEARING SPACER SLEEVE 20X12X82 | $4.40 | 1 |
| 7 | A00019-19-01 | FLANGE BOLT M12X95 | $6.10 | 1 |
| 8 | A00696-16-00 | PIVOT ARM | $59.50 | 1 |
| 9 | A00212-16-00 | BEARING SPACER SLEEVE 18X12.5X24MM | $2.60 | 1 |
| 10 | A00003-28-01 | BEARING 6001RS (SHIELDED) | $12.30 | 4 |
| 11 | A00035-26-00 | DUST SEAL 20X28X5 | $2.60 | 4 |
| 12 | A00067-21-01 | SPACER 19X12X9.5 | $2.00 | 8 |
| 13 | A00065-28-00 | BEARING 6902 | $14.00 | 2 |
| 14 | A00214-16-00 | COLLAR 20X10.2X11X15MM | $2.00 | 2 |
| 15 | A00215-16-00 | BEARING SPACER 18X12.5X13.5 | $2.60 | 1 |
| 16 | A00020-19-01 | FLANGE BOLT M12X83 | $3.50 | 1 |
| 17 | A00111-21-01 | WASHER 12X24X1.5 | $2.00 | 2 |
