Suspension
CLICK PARTS TO ADD
| NO. | PART # | DESCRIPTION | RETAIL | QTY |
|---|---|---|---|---|
| 1 | A00707-16-00 | LEFT FRONT FORK ASSY 830-53/58.5MM | $295.80 | 1 |
| 1A | A00708-16-00 | RIGHT FRONT FORK ASSY 830-53/58.5MM | $295.80 | 1 |
| 1-1 | A01032-02-01 | FORK GUARD SET WHITE | $45.50 | 1 |
| 1-2 | A00525-16-00 | FORK DUST SEAL 43X53.2X15 | $14.00 | 2 |
| 1-3 | A00552-16-00 | FORK SEAL 43X53.1X11MM | $14.00 | 2 |
| 2 | A00008-19-07 | STEPPED ALLEN BOLT M6X12 | $2.00 | 6 |
| 3 | A00273-21-01 | WASHER 10X16X1 | $2.00 | 6 |
| 4 | A00123-19-02 | BUTTON HEAD ALLEN BOLT M6X16 | $2.00 | 2 |
| 5 | A00005-22-04 | FLANGE LOCKNUT M6 | $2.00 | 2 |
| 6 | A00005-19-07 | SPECIAL BOLT M10X45 | $3.50 | 1 |

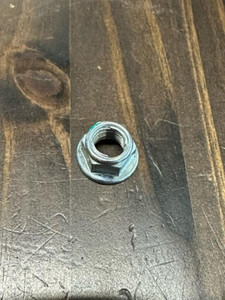

| 7 | A00004-22-03 | FLANGE NUT M10X1.25 | $2.00 | 2 |
| 8 | A00706-16-00 | REAR SHOCK ABSORBER 450MM 12.5 | $343.00 | 1 |
| 9 | A00010-19-01 | FLANGE BOLT M10X60 | $4.40 | 1 |
| 10 | A01033-02-00 | BRAKE LINE HOLDER SET | $2.60 | 1 |
| 11 | A00014-19-01 | FLANGE BOLT M8X40 | $2.50 | 4 |
