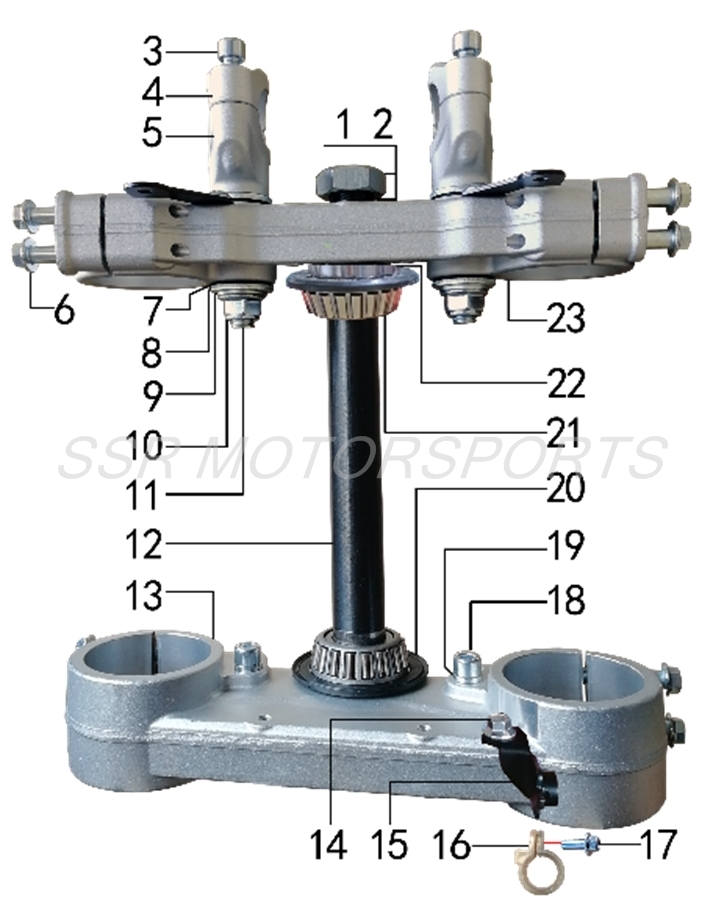

Triple Clamps
CLICK PARTS TO ADD
| NO. | PART # | DESCRIPTION | RETAIL | QTY |
|---|---|---|---|---|
| 1 | A00064-21-01 | WASHER 23X35 | $2.60 | 1 |
| 2 | A00086-22-01 | NUT M22 OPEN TOP | $6.10 | 1 |
| 3 | A00005-19-02 | ALLEN BOLT M8X30 | $2.00 | 4 |
| 4 | A00369-15-00 | UPPER HANDLEBAR CLAMP | $15.80 | 2 |
| 5 | A00370-15-00 | LOWER HANDLEBAR CLAMP | $24.50 | 2 |
| 6 | A00014-19-01 | FLANGE BOLT M8X40 | $2.50 | 8 |
| 7 | A00232-15-00 | HANDLEBAR VIBRATION DAMPER | $2.00 | 4 |
| 8 | A00110-21-01 | CONVEX WASHER 26X30X3 | $2.00 | 4 |
| 9 | A00111-21-01 | WASHER 12X24X1.5 | $2.00 | 2 |
| 10 | A00001-22-34 | FLANGE LOCKNUT M12 | $2.50 | 2 |
| 11 | A00127-19-04 | STUD M12X72 | $2.60 | 2 |
| 12 | A00419-15-00 | STEERING STEM 278MM | $28.00 | 1 |
| 13 | A00371-15-00 | LOWER TRIPLE CLAMP | $82.30 | 1 |
| 14 | A00461-19-01 | FLANGE BOLT M6X8 | $2.00 | 1 |
| 15 | A00372-15-00 | BRAKE HOSE GUIDE BRACKET | $8.00 | 1 |
| 16 | A00373-15-00 | BRAKE HOSE GUIDE | $2.60 | 1 |
| 17 | A00002-19-01 | FLANGE BOLT M6X16 | $2.00 | 1 |
| 18 | A00003-19-02 | ALLEN BOLT M8X16 | $2.00 | 2 |
| 19 | A00001-21-02 | LOCK WASHER 8X13X2 | $2.00 | 2 |
| 20 | A00077-26-00 | DUST SEAL | $4.40 | 2 |
| 21 | A00364-15-00 | STEERING STEM BEARING 25X52 (30205) | $21.00 | 2 |
| 22 | A00032-22-01 | STEERING STEM NUT M25X1X7 | $8.00 | 1 |
| 23 | A00363-15-00 | UPPER TRIPLE CLAMP | $72.50 | 1 |
