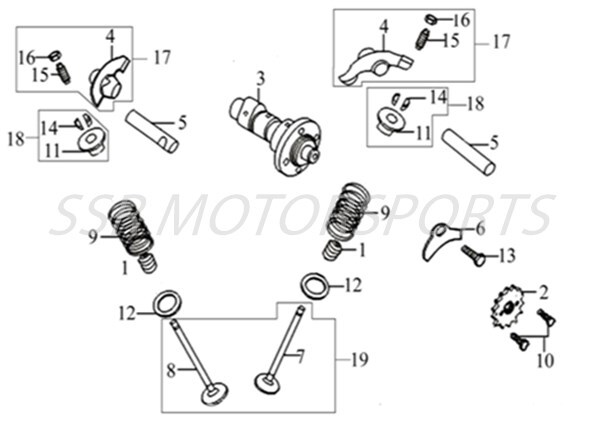

Valves
CLICK PARTS TO ADD
| NO. | PART # | DESCRIPTION | RETAIL | QTY |
|---|---|---|---|---|
| 1 | A03080-09-00 | VALVE STEM SEAL 5X10.6X8.4 | $3.50 | 2 |
| 2 | A03066-09-00 | CAMSHAFT SPROCKET 34T | $12.30 | 1 |
| 3 | A03067-09-00 | CAMSHAFT | $120.80 | 1 |
| 4 | A03068-09-00 | ROCKER ARM | $24.50 | 2 |
| 5 | A03069-09-00 | ROCKER ARM SHAFT 12X64 | $14.00 | 2 |
| 6 | A03070-09-00 | ROCKER ARM SHAFT RETAINER PLATE | $8.00 | 1 |
| 7 | A03071-09-00 | INTAKE VALVE | $35.00 | 1 |
| 8 | A03072-09-00 | EXHAUST VALVE | $35.00 | 1 |
| 9 | A03073-09-00 | OUTER VALVE SPRING | $8.80 | 2 |
| 10 | A00015-19-03 | HEX BOLT M6X10 | $2.00 | 2 |
| 11 | A03074-09-00 | UPPER VALVE SPRING RETAINER | $8.00 | 2 |
| 12 | A03075-09-00 | OUTER VALVE SPRING SEAT | $3.50 | 2 |
| 13 | A00006-19-07 | CSK HEAD BOLT M6X16 | $2.00 | 1 |
| 14 | A03076-09-00 | VALVE STEM COLLET | $2.50 | 4 |
| 15 | A03081-09-00 | ADJUSTER SCREW M6X21.5 | $2.50 | 2 |
| 16 | A03082-09-00 | ADJUSTER NUT M6 | $2.50 | 2 |
| 17 | A03077-09-00 | ROCKER ARM ASSY | $24.50 | 2 |
| 18 | A03078-09-00 | COLLET & RETAINER KIT | $8.80 | 2 |
| 19 | A03079-09-00 | INTAKE & EXHAUST VALVE SET | $62.00 | 1 |
