1. Frame

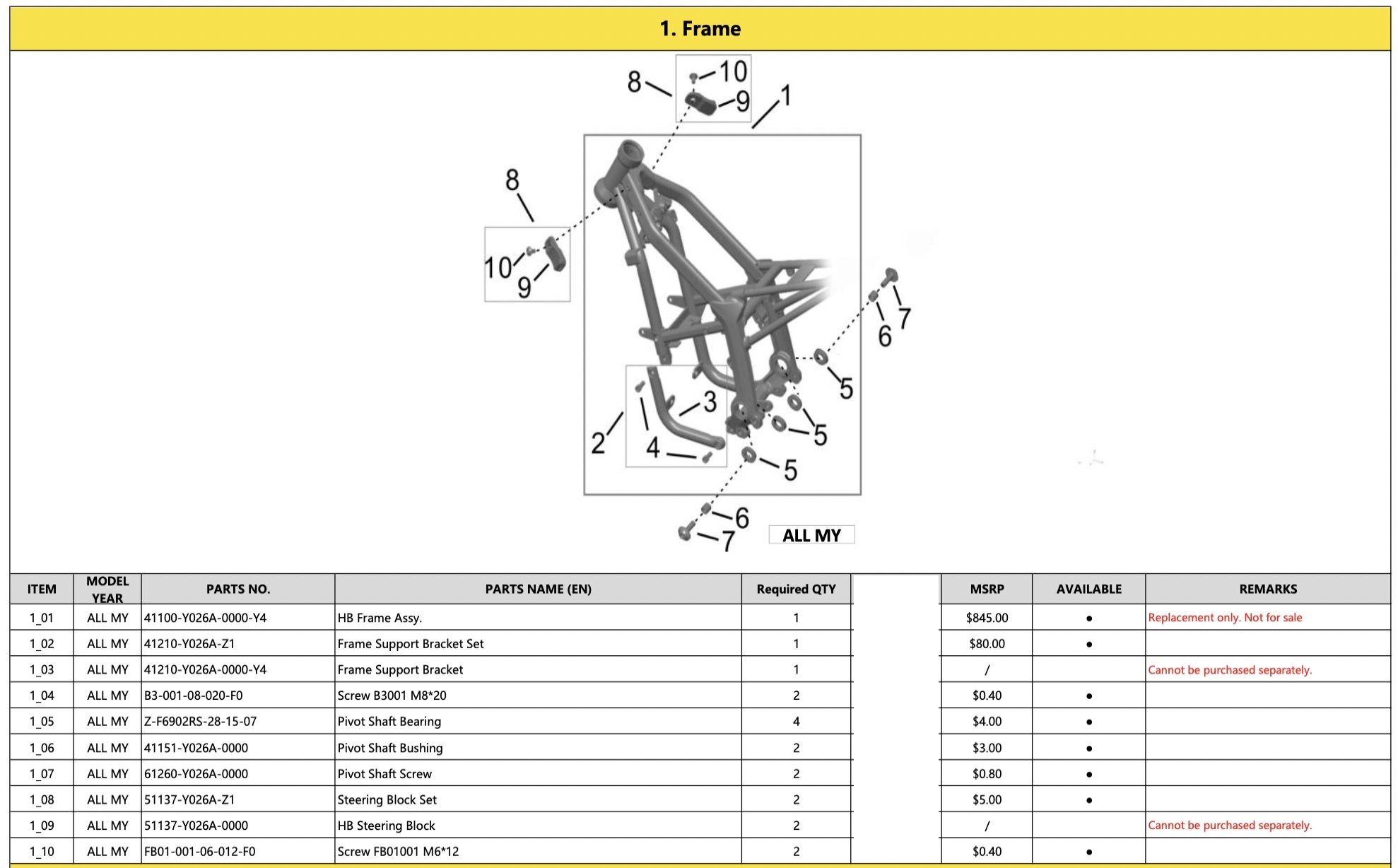

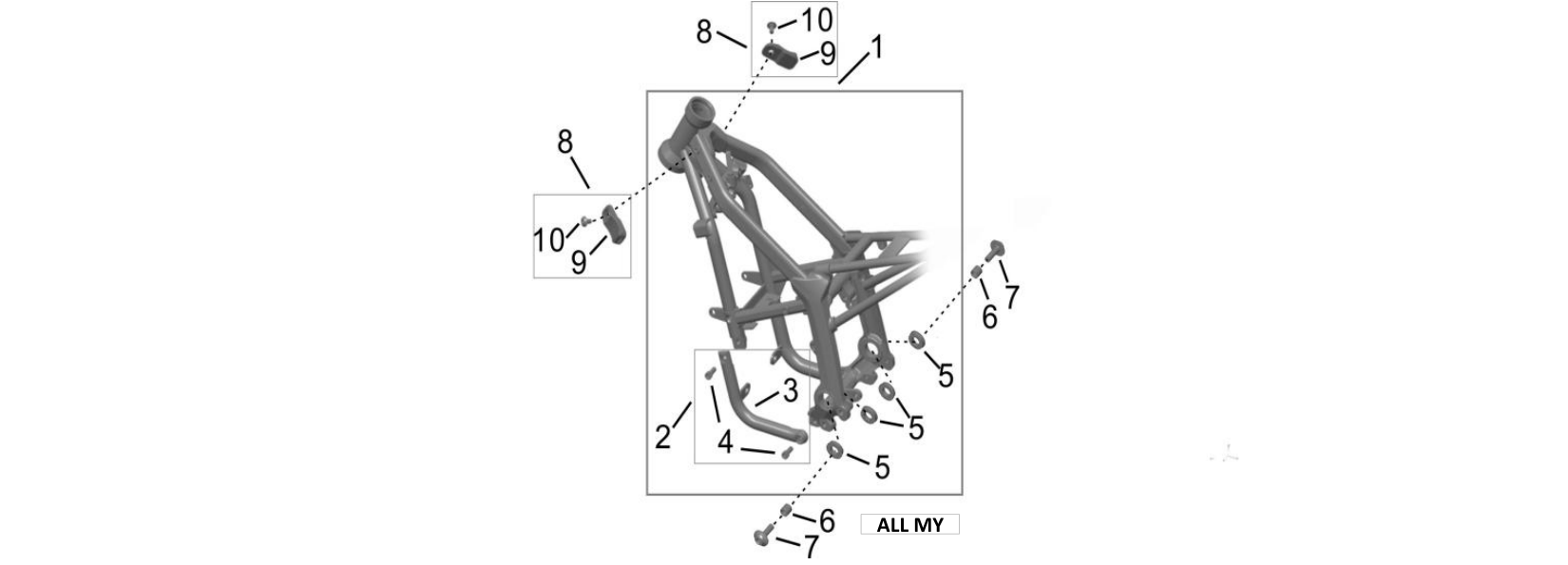

2026 Surron Hyper Bee - Frame Parts Diagram

Find your part number in the diagram, then click its Description to add or remove it from your Parts Request.

2026 Hyper Bee catalog includes MY25, MY26 and ALL MY parts. Match the year and variant shown on each row before requesting parts. MSRP is per part; pricing and availability are subject to confirmation.

FIND & SELECT YOUR PARTS
DESCRIPTION: Click to add/remove from your Parts Request.
QTY: Required assembly quantity listed in the catalog.
NO. PART # DESCRIPTION / YEAR MSRP QTY
1_01 41100-Y026A-0000-Y4 ALL MYReplacement only. Not for sale $845.00 1
1_02 41210-Y026A-Z1 ALL MY $80.00 1
1_03 41210-Y026A-0000-Y4 ALL MYCannot be purchased separately. Call for price 1
1_04 B3-001-08-020-F0 ALL MY $0.40 2
1_05 Z-F6902RS-28-15-07 ALL MY $4.00 4
1_06 41151-Y026A-0000 ALL MY $3.00 2
1_07 61260-Y026A-0000 ALL MY $0.80 2
1_08 51137-Y026A-Z1 ALL MY $5.00 2
1_09 51137-Y026A-0000 ALL MYCannot be purchased separately. Call for price 2
1_10 FB01-001-06-012-F0 ALL MY $0.40 2
