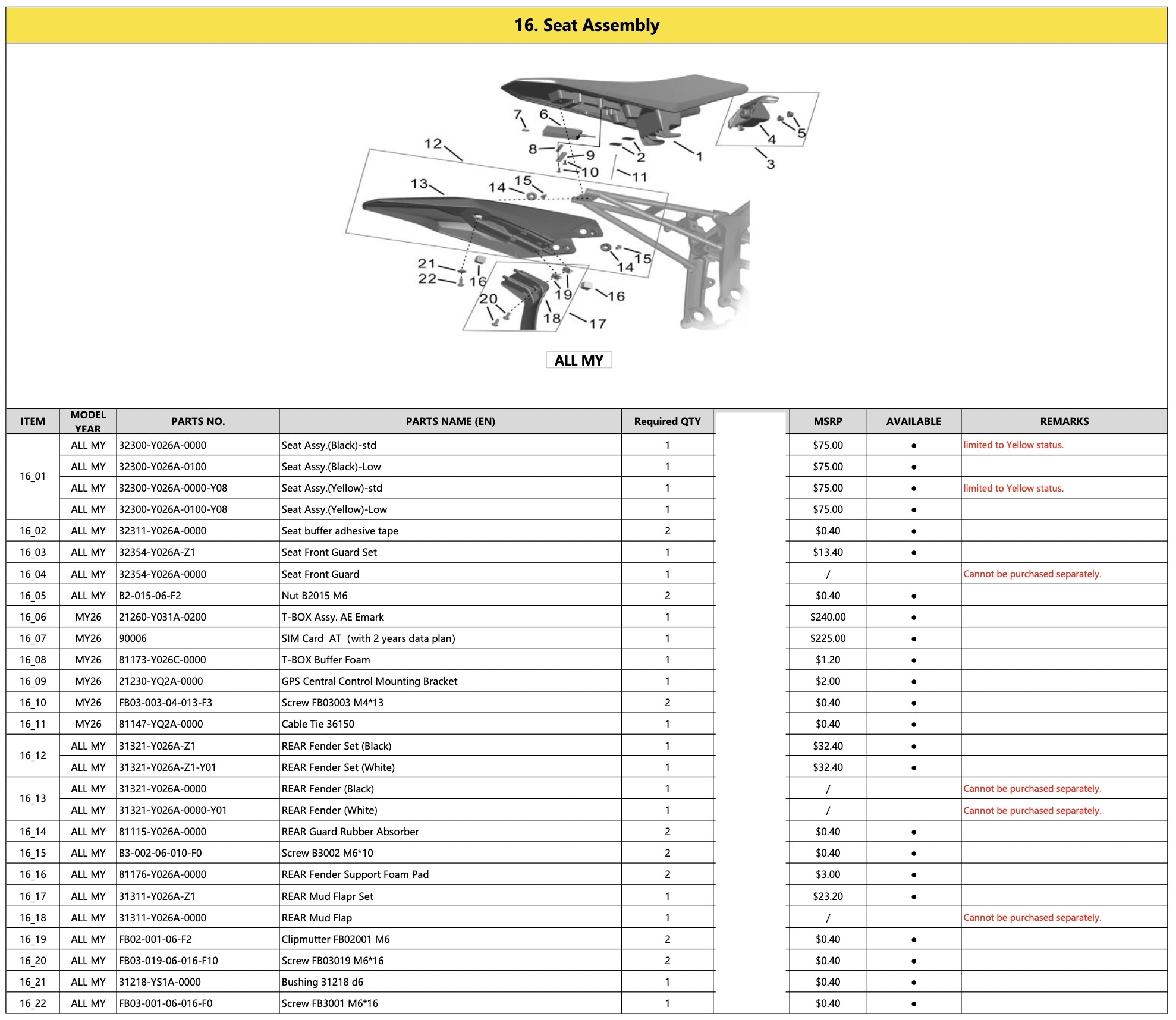

16. Seat Assembly

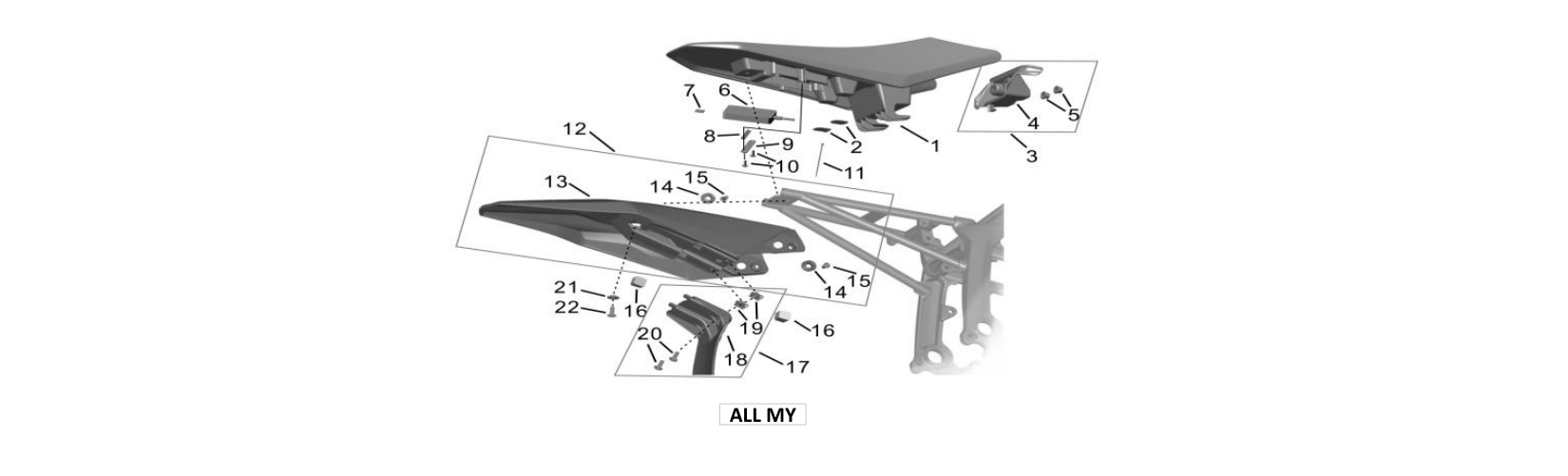

2026 Surron Hyper Bee - Seat Assembly Parts Diagram

Find your part number in the diagram, then click its Description to add or remove it from your Parts Request.

2026 Hyper Bee catalog includes MY25, MY26 and ALL MY parts. Match the year and variant shown on each row before requesting parts. MSRP is per part; pricing and availability are subject to confirmation.

FIND & SELECT YOUR PARTS
DESCRIPTION: Click to add/remove from your Parts Request.
QTY: Required assembly quantity listed in the catalog.
NO. PART # DESCRIPTION / YEAR MSRP QTY
16_01 32300-Y026A-0000 ALL MYlimited to Yellow status. $75.00 1
16_01 32300-Y026A-0100 ALL MY $75.00 1
16_01 32300-Y026A-0000-Y08 ALL MYlimited to Yellow status. $75.00 1
16_01 32300-Y026A-0100-Y08 ALL MY $75.00 1
16_02 32311-Y026A-0000 ALL MY $0.40 2
16_03 32354-Y026A-Z1 ALL MY $13.40 1
16_04 32354-Y026A-0000 ALL MYCannot be purchased separately. Call for price 1
16_05 B2-015-06-F2 ALL MY $0.40 2
16_06 21260-Y031A-0200 MY26 $165.00 1
16_07 90006 MY26 $150.00 1
16_08 81173-Y026C-0000 MY26 $1.20 1
16_09 21230-YQ2A-0000 MY26 $2.00 1
16_10 FB03-003-04-013-F3 MY26 $0.40 2
16_11 81147-YQ2A-0000 MY26 $0.40 1
16_12 31321-Y026A-Z1 ALL MY $32.40 1
16_12 31321-Y026A-Z1-Y01 ALL MY $32.40 1
16_13 31321-Y026A-0000 ALL MYCannot be purchased separately. Call for price 1
16_13 31321-Y026A-0000-Y01 ALL MYCannot be purchased separately. Call for price 1
16_14 81115-Y026A-0000 ALL MY $0.40 2
16_15 B3-002-06-010-F0 ALL MY $0.40 2
16_16 81176-Y026A-0000 ALL MY $3.00 2
16_17 31311-Y026A-Z1 ALL MY $23.20 1
16_18 31311-Y026A-0000 ALL MYCannot be purchased separately. Call for price 1
16_19 FB02-001-06-F2 ALL MY $0.40 2
16_20 FB03-019-06-016-F10 ALL MY $0.40 2
16_21 31218-YS1A-0000 ALL MY $0.40 1
16_22 FB03-001-06-016-F0 ALL MY $0.40 1
