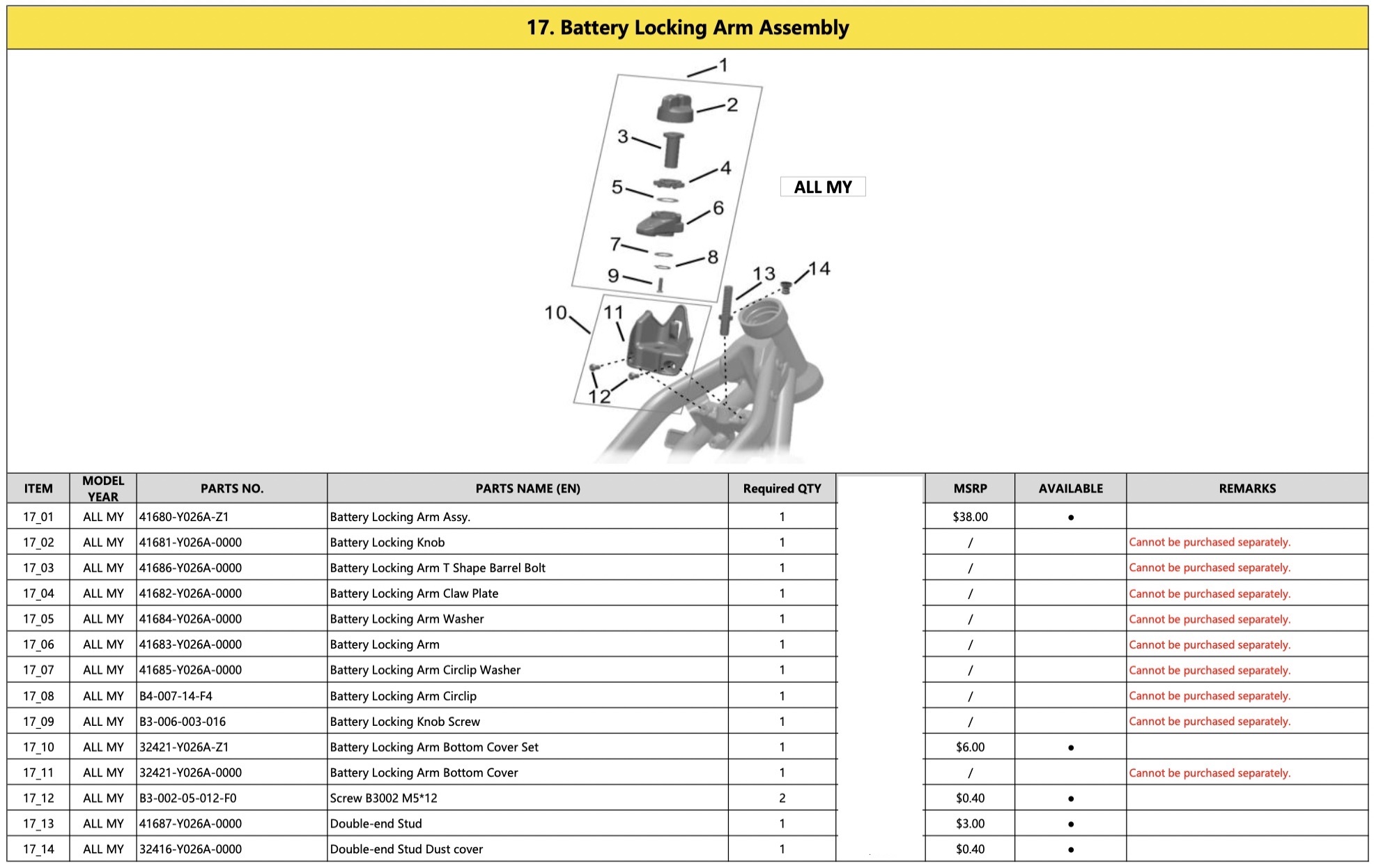

17. Battery Locking Arm Assembly

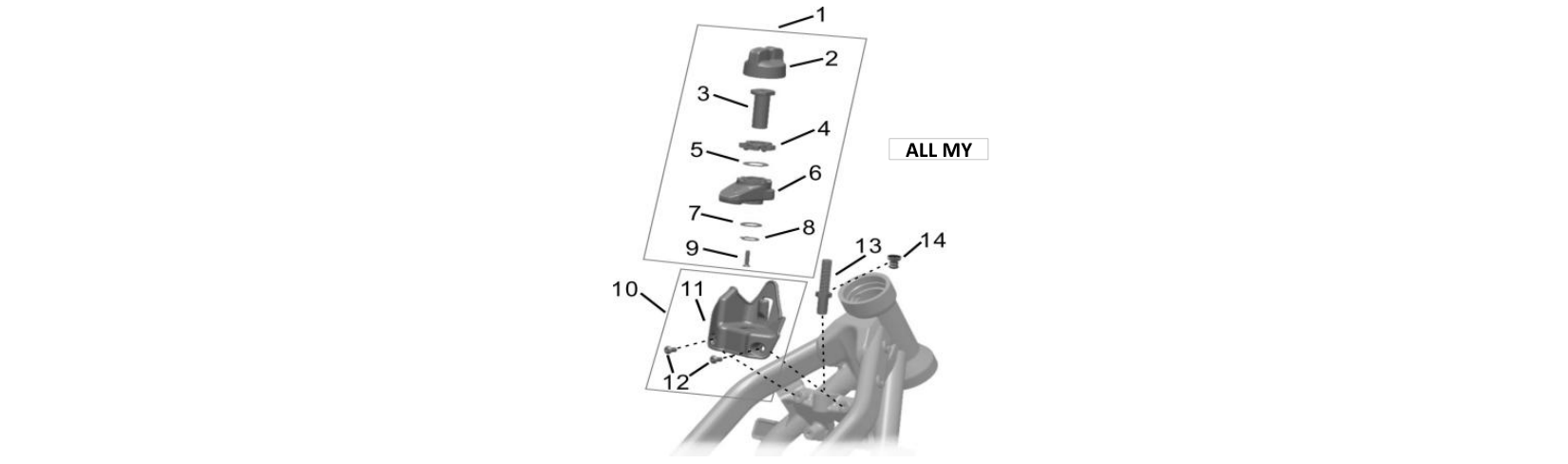

2026 Surron Hyper Bee - Battery Locking Arm Assembly Parts Diagram

Find your part number in the diagram, then click its Description to add or remove it from your Parts Request.

2026 Hyper Bee catalog includes MY25, MY26 and ALL MY parts. Match the year and variant shown on each row before requesting parts. MSRP is per part; pricing and availability are subject to confirmation.

FIND & SELECT YOUR PARTS
DESCRIPTION: Click to add/remove from your Parts Request.
QTY: Required assembly quantity listed in the catalog.
NO. PART # DESCRIPTION / YEAR MSRP QTY
17_01 41680-Y026A-Z1 ALL MY $38.00 1
17_02 41681-Y026A-0000 ALL MYCannot be purchased separately. Call for price 1
17_03 41686-Y026A-0000 ALL MYCannot be purchased separately. Call for price 1
17_04 41682-Y026A-0000 ALL MYCannot be purchased separately. Call for price 1
17_05 41684-Y026A-0000 ALL MYCannot be purchased separately. Call for price 1
17_06 41683-Y026A-0000 ALL MYCannot be purchased separately. Call for price 1
17_07 41685-Y026A-0000 ALL MYCannot be purchased separately. Call for price 1
17_08 B4-007-14-F4 ALL MYCannot be purchased separately. Call for price 1
17_09 B3-006-003-016 ALL MYCannot be purchased separately. Call for price 1
17_10 32421-Y026A-Z1 ALL MY $6.00 1
17_11 32421-Y026A-0000 ALL MYCannot be purchased separately. Call for price 1
17_12 B3-002-05-012-F0 ALL MY $0.40 2
17_13 41687-Y026A-0000 ALL MY $3.00 1
17_14 32416-Y026A-0000 ALL MY $0.40 1
