20. Dashboard / Head Cowl / Front Fender

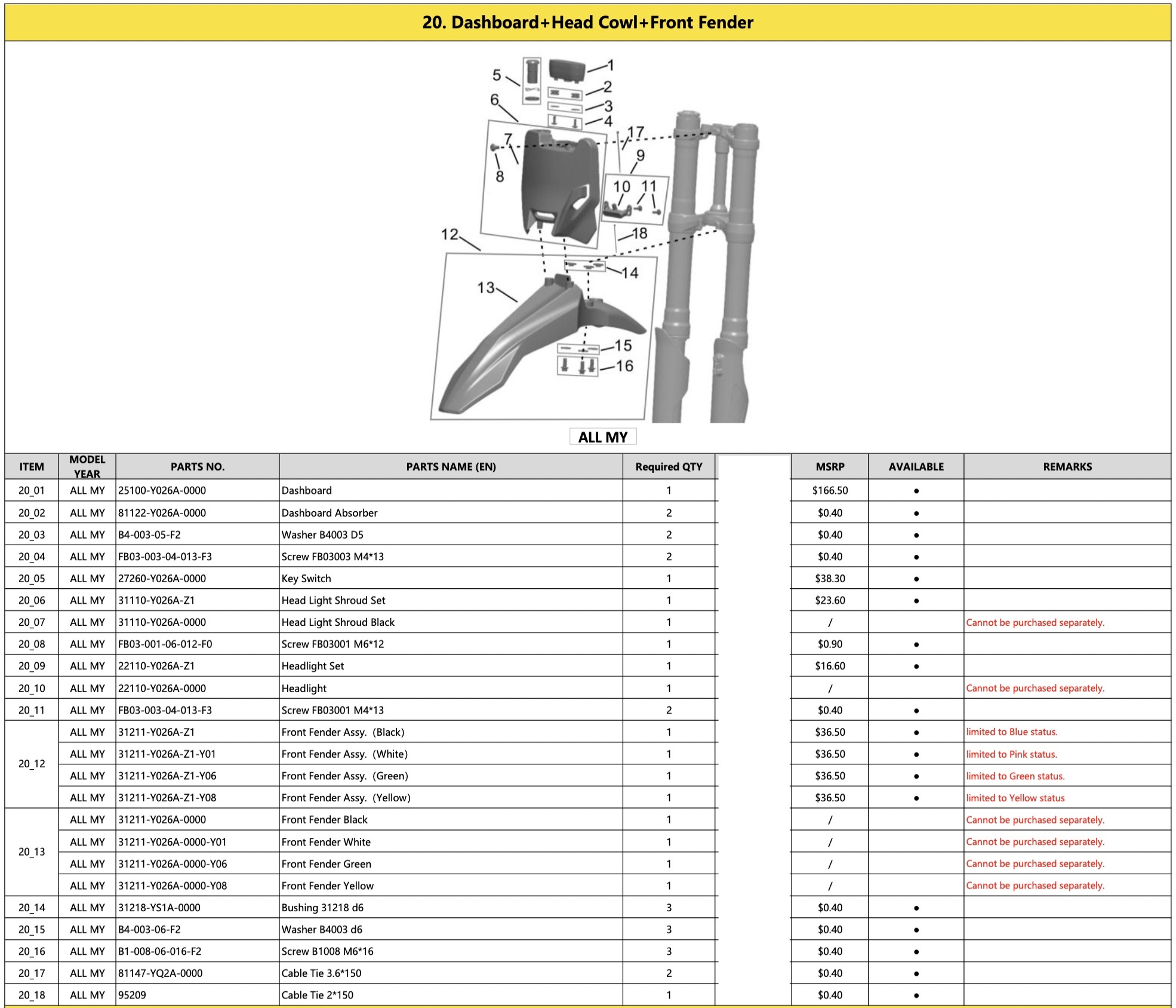

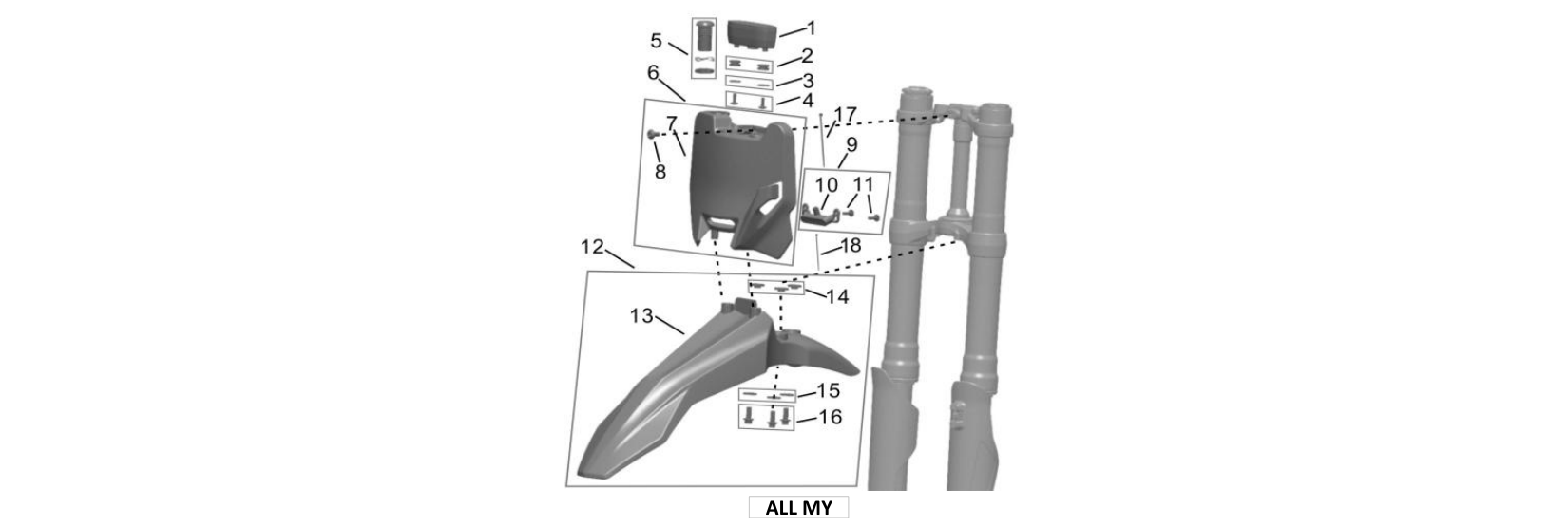

2026 Surron Hyper Bee - Dashboard / Head Cowl / Front Fender Parts Diagram

Find your part number in the diagram, then click its Description to add or remove it from your Parts Request.

2026 Hyper Bee catalog includes MY25, MY26 and ALL MY parts. Match the year and variant shown on each row before requesting parts. MSRP is per part; pricing and availability are subject to confirmation.

FIND & SELECT YOUR PARTS
DESCRIPTION: Click to add/remove from your Parts Request.
QTY: Required assembly quantity listed in the catalog.
NO. PART # DESCRIPTION / YEAR MSRP QTY
20_01 25100-Y026A-0000 ALL MY $166.50 1
20_02 81122-Y026A-0000 ALL MY $0.40 2
20_03 B4-003-05-F2 ALL MY $0.40 2
20_04 FB03-003-04-013-F3 ALL MY $0.40 2
20_05 27260-Y026A-0000 ALL MY $38.30 1
20_06 31110-Y026A-Z1 ALL MY $23.60 1
20_07 31110-Y026A-0000 ALL MYCannot be purchased separately. Call for price 1
20_08 FB03-001-06-012-F0 ALL MY $0.80 1
20_09 22110-Y026A-Z1 ALL MY $16.60 1
20_10 22110-Y026A-0000 ALL MYCannot be purchased separately. Call for price 1
20_11 FB03-003-04-013-F3 ALL MY $0.40 2
20_12 31211-Y026A-Z1 ALL MYlimited to Blue status. $36.50 1
20_12 31211-Y026A-Z1-Y01 ALL MYlimited to Pink status. $36.50 1
20_12 31211-Y026A-Z1-Y06 ALL MYlimited to Green status. $36.50 1
20_12 31211-Y026A-Z1-Y08 ALL MYlimited to Yellow status $36.50 1
20_13 31211-Y026A-0000 ALL MYCannot be purchased separately. Call for price 1
20_13 31211-Y026A-0000-Y01 ALL MYCannot be purchased separately. Call for price 1
20_13 31211-Y026A-0000-Y06 ALL MYCannot be purchased separately. Call for price 1
20_13 31211-Y026A-0000-Y08 ALL MYCannot be purchased separately. Call for price 1
20_14 31218-YS1A-0000 ALL MY $0.40 3
20_15 B4-003-06-F2 ALL MY $0.40 3
20_16 B1-008-06-016-F2 ALL MY $0.40 3
20_17 81147-YQ2A-0000 ALL MY $0.40 2
20_18 95209 ALL MY $0.40 1
