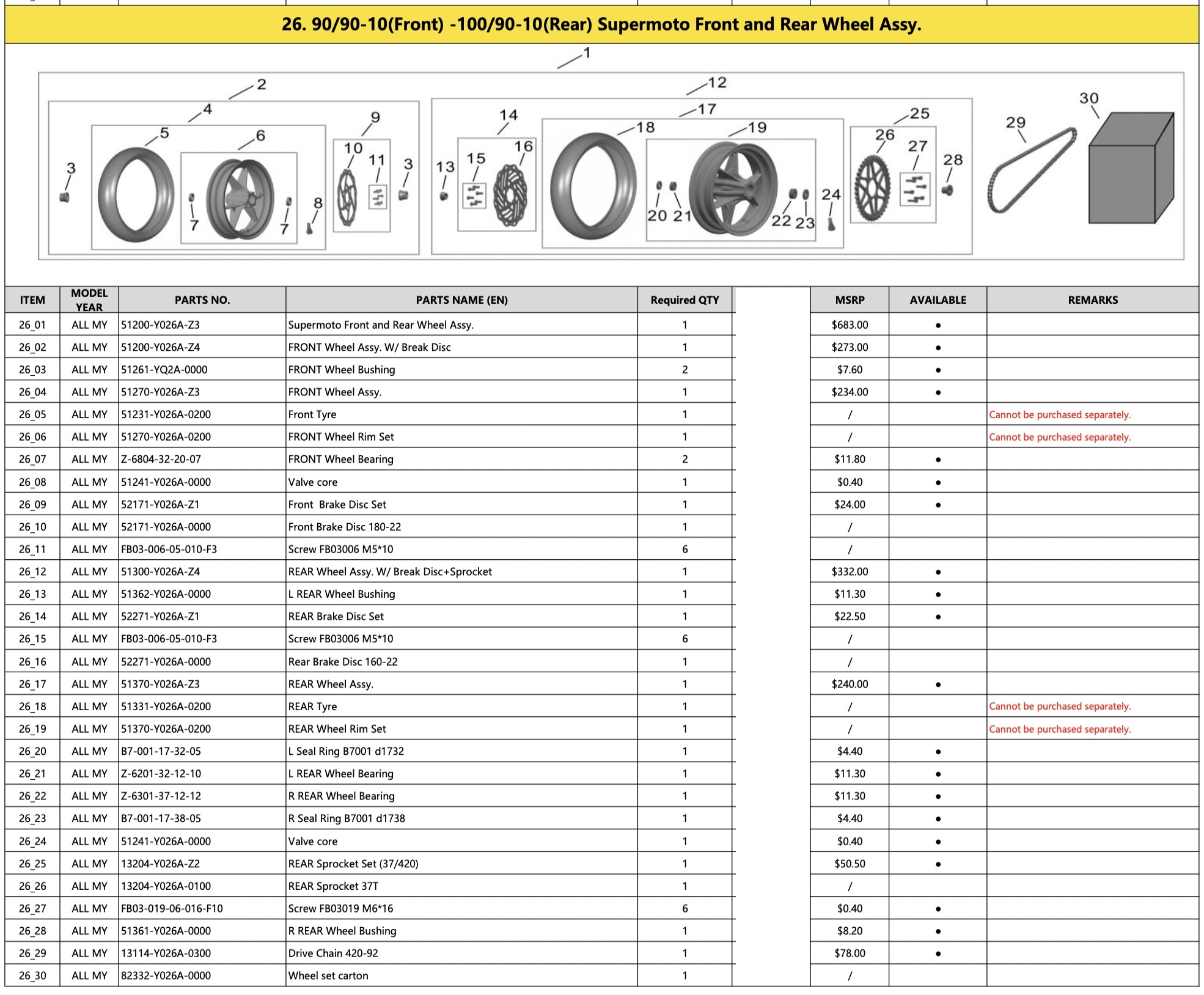

26. 90/90-10 (F) 100/90-10 (R) Supermoto F/R Wheel

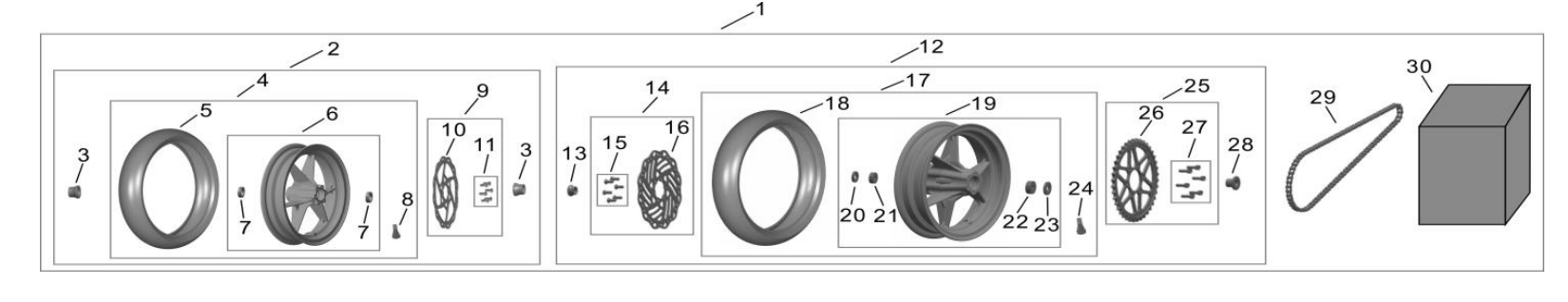

2026 Surron Hyper Bee - Supermoto Front & Rear Wheels (10-inch) Parts Diagram

Find your part number in the diagram, then click its Description to add or remove it from your Parts Request.

2026 Hyper Bee catalog includes MY25, MY26 and ALL MY parts. Match the year and variant shown on each row before requesting parts. MSRP is per part; pricing and availability are subject to confirmation.

Click diagram to enlarge

FIND & SELECT YOUR PARTS

DESCRIPTION: Click to add/remove from your Parts Request.
QTY: Required assembly quantity listed in the catalog.

NO.	PART #	DESCRIPTION / YEAR	MSRP	QTY
26_01	51200-Y026A-Z3	Supermoto Front and Rear Wheel Assy.+ ADDALL MY	$683.00	1
26_02	51200-Y026A-Z4	FRONT Wheel Assy. W/ Break Disc+ ADDALL MY	$273.00	1
26_03	51261-YQ2A-0000	FRONT Wheel Bushing+ ADDALL MY	$7.60	2
26_04	51270-Y026A-Z3	FRONT Wheel Assy.+ ADDALL MY	$234.00	1
26_05	51231-Y026A-0200	Front Tyre+ ADDALL MYCannot be purchased separately.	Call for price	1
26_06	51270-Y026A-0200	FRONT Wheel Rim Set+ ADDALL MYCannot be purchased separately.	Call for price	1
26_07	Z-6804-32-20-07	FRONT Wheel Bearing+ ADDALL MY	$11.80	2
26_08	51241-Y026A-0000	Valve core+ ADDALL MY	$0.40	1
26_09	52171-Y026A-Z1	Front Brake Disc Set+ ADDALL MY	$24.00	1
26_10	52171-Y026A-0000	Front Brake Disc 180-22+ ADDALL MY	Call for price	1
26_11	FB03-006-05-010-F3	Screw FB03006 M5*10+ ADDALL MY	Call for price	6
26_12	51300-Y026A-Z4	REAR Wheel Assy. W/ Break Disc+Sprocket+ ADDALL MY	$332.00	1
26_13	51362-Y026A-0000	L REAR Wheel Bushing+ ADDALL MY	$11.30	1
26_14	52271-Y026A-Z1	REAR Brake Disc Set+ ADDALL MY	$22.50	1
26_15	FB03-006-05-010-F3	Screw FB03006 M5*10+ ADDALL MY	Call for price	6
26_16	52271-Y026A-0000	Rear Brake Disc 160-22+ ADDALL MY	Call for price	1
26_17	51370-Y026A-Z3	REAR Wheel Assy.+ ADDALL MY	$240.00	1
26_18	51331-Y026A-0200	REAR Tyre+ ADDALL MYCannot be purchased separately.	Call for price	1
26_19	51370-Y026A-0200	REAR Wheel Rim Set+ ADDALL MYCannot be purchased separately.	Call for price	1
26_20	B7-001-17-32-05	L Seal Ring B7001 d1732+ ADDALL MY	$4.40	1
26_21	Z-6201-32-12-10	L REAR Wheel Bearing+ ADDALL MY	$11.30	1
26_22	Z-6301-37-12-12	R REAR Wheel Bearing+ ADDALL MY	$11.30	1
26_23	B7-001-17-38-05	R Seal Ring B7001 d1738+ ADDALL MY	$4.40	1
26_24	51241-Y026A-0000	Valve core+ ADDALL MY	$0.40	1
26_25	13204-Y026A-Z2	REAR Sprocket Set (37/420)+ ADDALL MY	$50.50	1
26_26	13204-Y026A-0100	REAR Sprocket 37T+ ADDALL MY	Call for price	1
26_27	FB03-019-06-016-F10	Screw FB03019 M6*16+ ADDALL MY	$0.40	6
26_28	51361-Y026A-0000	R REAR Wheel Bushing+ ADDALL MY	$8.20	1
26_29	13114-Y026A-0300	Drive Chain 420-92+ ADDALL MY	$78.00	1
26_30	82332-Y026A-0000	Wheel set carton+ ADDALL MY	Call for price	1
