3. Front Fork & Steering Stem System

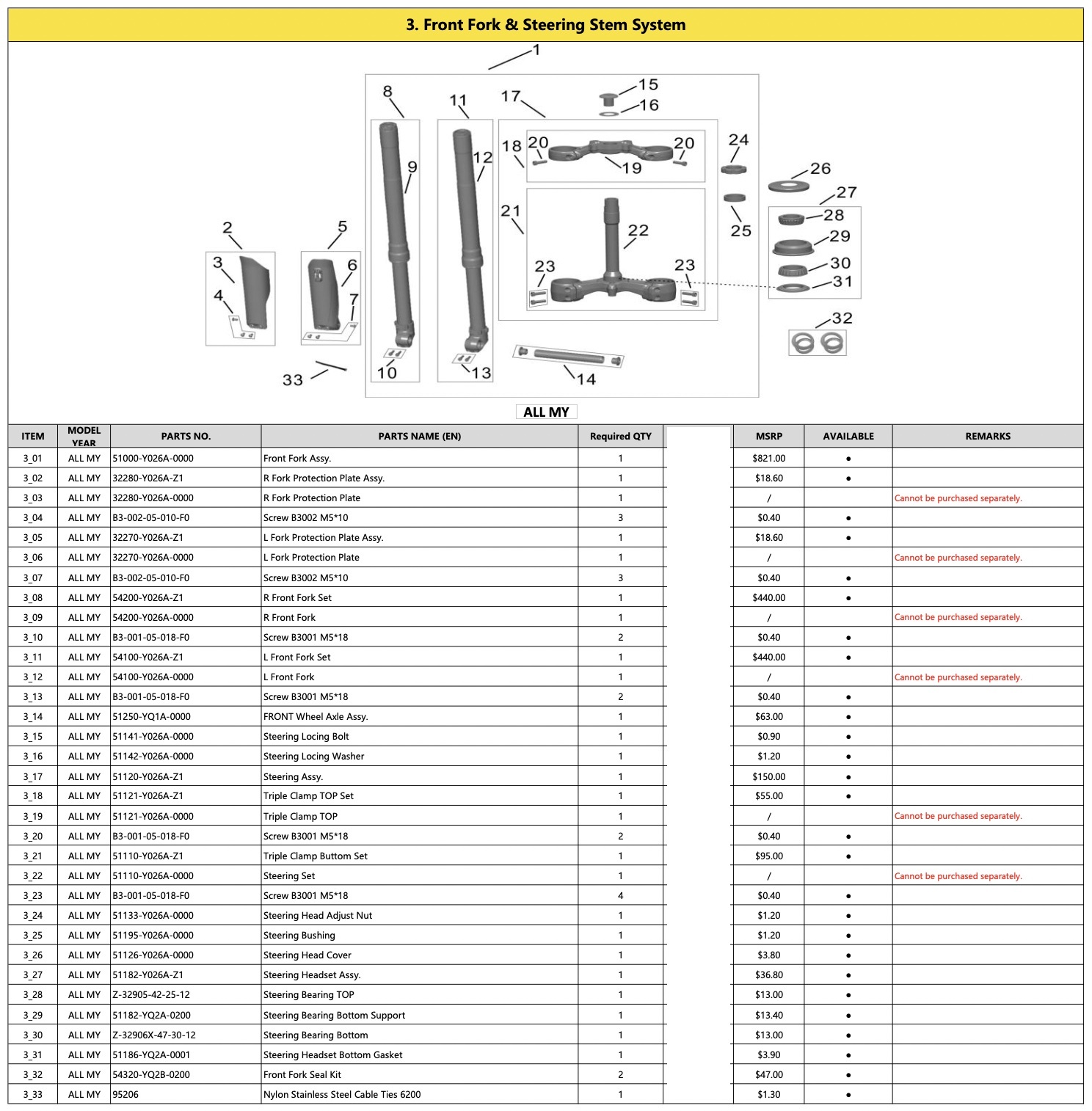

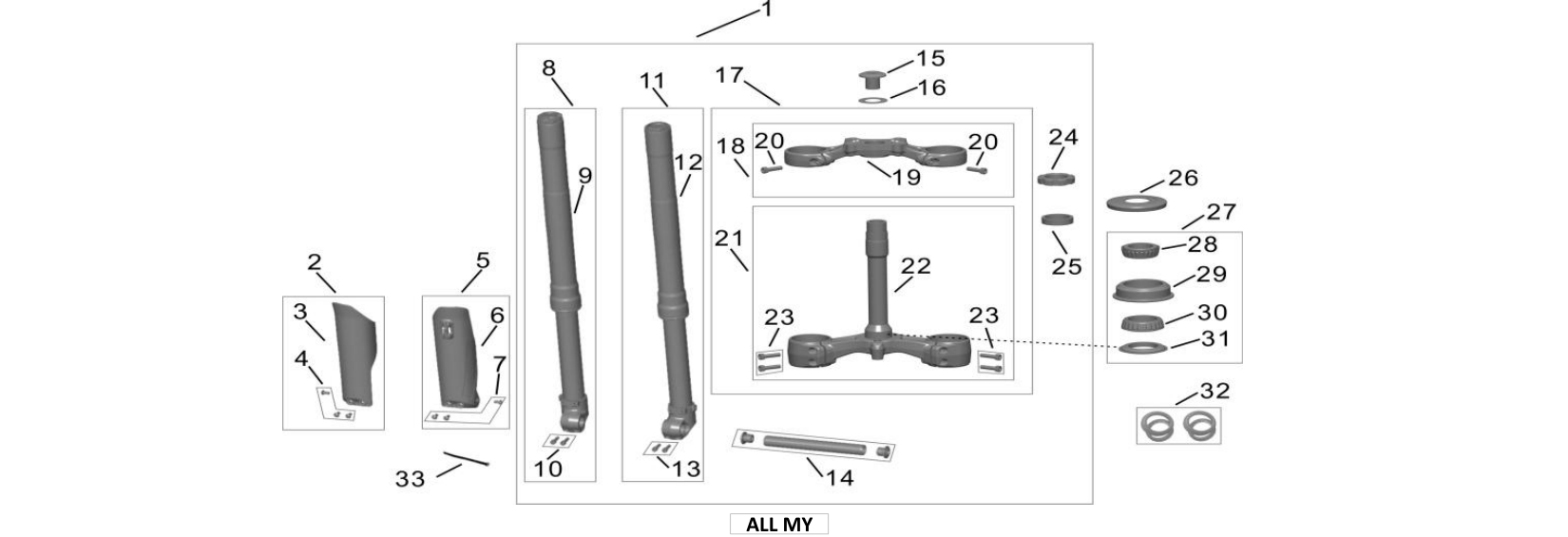

2026 Surron Hyper Bee - Front Fork & Steering Stem System Parts Diagram
Find your part number in the diagram, then click its Description to add or remove it from your Parts Request.
2026 Hyper Bee catalog includes MY25, MY26 and ALL MY parts. Match the year and variant shown on each row before requesting parts. MSRP is per part; pricing and availability are subject to confirmation.
DESCRIPTION: Click to add/remove from your Parts Request.
QTY: Required assembly quantity listed in the catalog.
QTY: Required assembly quantity listed in the catalog.
| NO. | PART # | DESCRIPTION / YEAR | MSRP | QTY |
|---|---|---|---|---|
| 3_01 | 51000-Y026A-0000 | ALL MY | $821.00 | 1 |
| 3_02 | 32280-Y026A-Z1 | ALL MY | $18.60 | 1 |
| 3_03 | 32280-Y026A-0000 | ALL MYCannot be purchased separately. | Call for price | 1 |
| 3_04 | B3-002-05-010-F0 | ALL MY | $0.40 | 3 |
| 3_05 | 32270-Y026A-Z1 | ALL MY | $18.60 | 1 |
| 3_06 | 32270-Y026A-0000 | ALL MYCannot be purchased separately. | Call for price | 1 |
| 3_07 | B3-002-05-010-F0 | ALL MY | $0.40 | 3 |
| 3_08 | 54200-Y026A-Z1 | ALL MY | $440.00 | 1 |
| 3_09 | 54200-Y026A-0000 | ALL MYCannot be purchased separately. | Call for price | 1 |
| 3_10 | B3-001-05-018-F0 | ALL MY | $0.40 | 2 |
| 3_11 | 54100-Y026A-Z1 | ALL MY | $440.00 | 1 |
| 3_12 | 54100-Y026A-0000 | ALL MYCannot be purchased separately. | Call for price | 1 |
| 3_13 | B3-001-05-018-F0 | ALL MY | $0.40 | 2 |
| 3_14 | 51250-YQ1A-0000 | ALL MY | $63.00 | 1 |
| 3_15 | 51141-Y026A-0000 | ALL MY | $0.90 | 1 |
| 3_16 | 51142-Y026A-0000 | ALL MY | $1.20 | 1 |
| 3_17 | 51120-Y026A-Z1 | ALL MY | $150.00 | 1 |
| 3_18 | 51121-Y026A-Z1 | ALL MY | $55.00 | 1 |
| 3_19 | 51121-Y026A-0000 | ALL MYCannot be purchased separately. | Call for price | 1 |
| 3_20 | B3-001-05-018-F0 | ALL MY | $0.40 | 2 |
| 3_21 | 51110-Y026A-Z1 | ALL MY | $95.00 | 1 |
| 3_22 | 51110-Y026A-0000 | ALL MYCannot be purchased separately. | Call for price | 1 |
| 3_23 | B3-001-05-018-F0 | ALL MY | $0.40 | 4 |
| 3_24 | 51133-Y026A-0000 | ALL MY | $1.20 | 1 |
| 3_25 | 51195-Y026A-0000 | ALL MY | $1.20 | 1 |
| 3_26 | 51126-Y026A-0000 | ALL MY | $3.80 | 1 |
| 3_27 | 51182-Y026A-Z1 | ALL MY | $36.80 | 1 |
| 3_28 | Z-32905-42-25-12 | ALL MY | $13.00 | 1 |
| 3_29 | 51182-YQ2A-0200 | ALL MY | $13.40 | 1 |
| 3_30 | Z-32906X-47-30-12 | ALL MY | $13.00 | 1 |
| 3_31 | 51186-YQ2A-0001 | ALL MY | $3.90 | 1 |
| 3_32 | 54320-YQ2B-0200 | ALL MY | $47.00 | 2 |
| 3_33 | 95206 | ALL MY | $1.30 | 1 |
