4. Swingarm Assembly

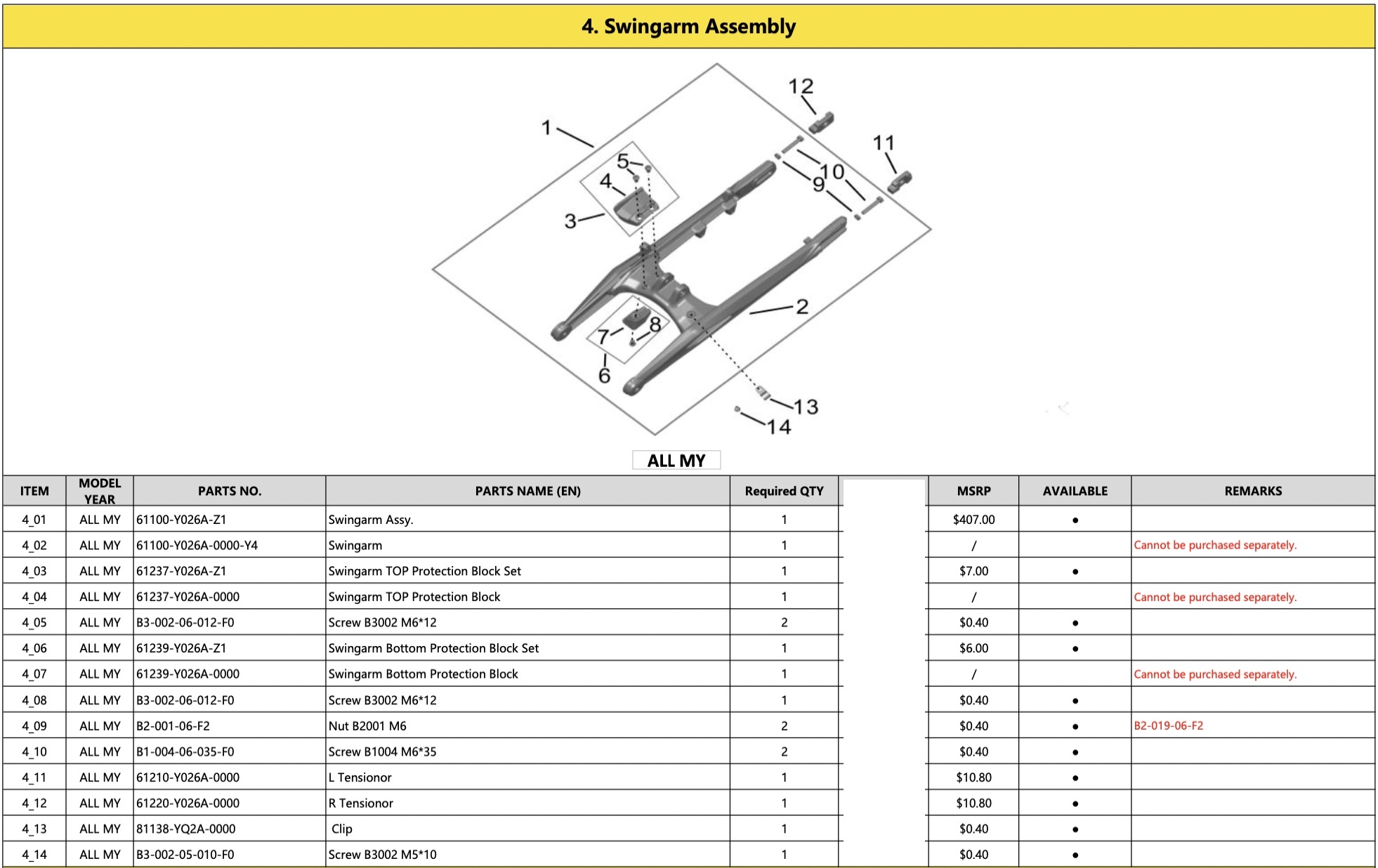

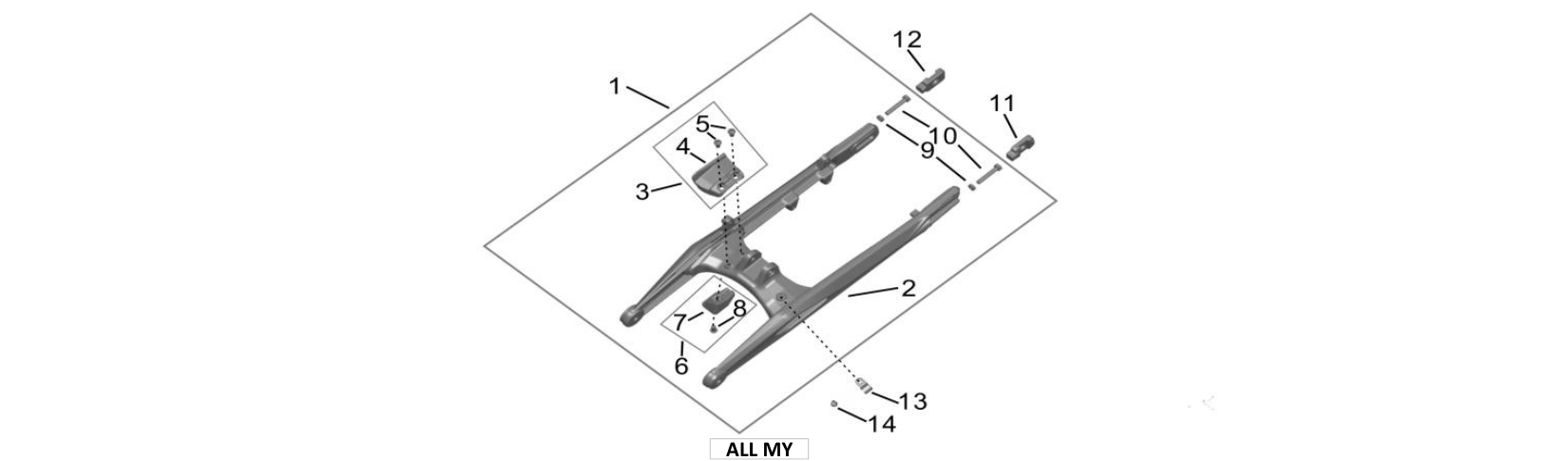

2026 Surron Hyper Bee - Swingarm Assembly Parts Diagram

Find your part number in the diagram, then click its Description to add or remove it from your Parts Request.

2026 Hyper Bee catalog includes MY25, MY26 and ALL MY parts. Match the year and variant shown on each row before requesting parts. MSRP is per part; pricing and availability are subject to confirmation.

FIND & SELECT YOUR PARTS
DESCRIPTION: Click to add/remove from your Parts Request.
QTY: Required assembly quantity listed in the catalog.
NO. PART # DESCRIPTION / YEAR MSRP QTY
4_01 61100-Y026A-Z1 ALL MY $407.00 1
4_02 61100-Y026A-0000-Y4 ALL MYCannot be purchased separately. Call for price 1
4_03 61237-Y026A-Z1 ALL MY $7.00 1
4_04 61237-Y026A-0000 ALL MYCannot be purchased separately. Call for price 1
4_05 B3-002-06-012-F0 ALL MY $0.40 2
4_06 61239-Y026A-Z1 ALL MY $6.00 1
4_07 61239-Y026A-0000 ALL MYCannot be purchased separately. Call for price 1
4_08 B3-002-06-012-F0 ALL MY $0.40 1
4_09 B2-001-06-F2 ALL MYB2-019-06-F2 $0.40 2
4_10 B1-004-06-035-F0 ALL MY $0.40 2
4_11 61210-Y026A-0000 ALL MY $10.80 1
4_12 61220-Y026A-0000 ALL MY $10.80 1
4_13 81138-YQ2A-0000 ALL MY $0.40 1
4_14 B3-002-05-010-F0 ALL MY $0.40 1
