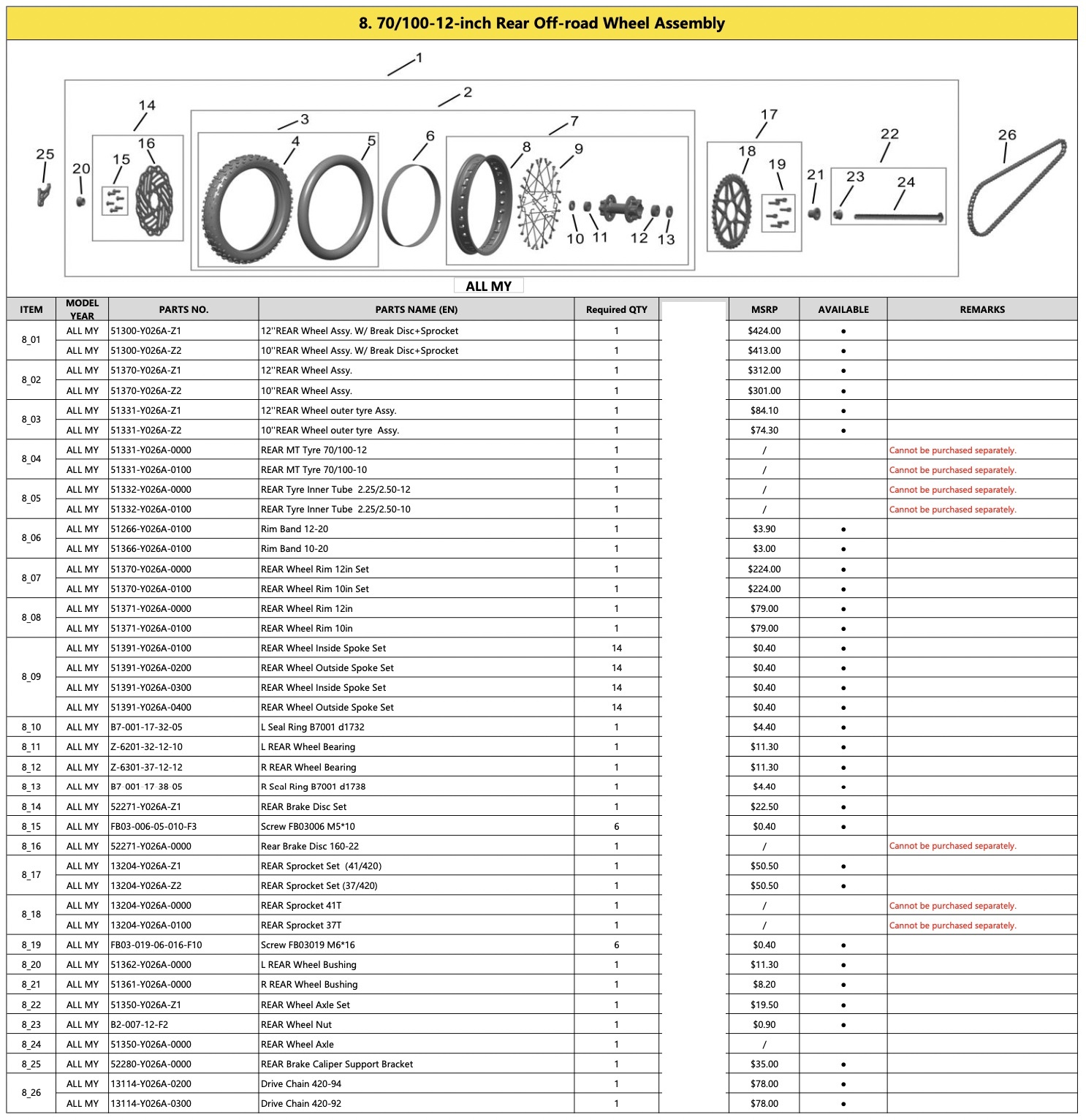

8. 70/100-12 inch Rear Off Road Wheel Assembly

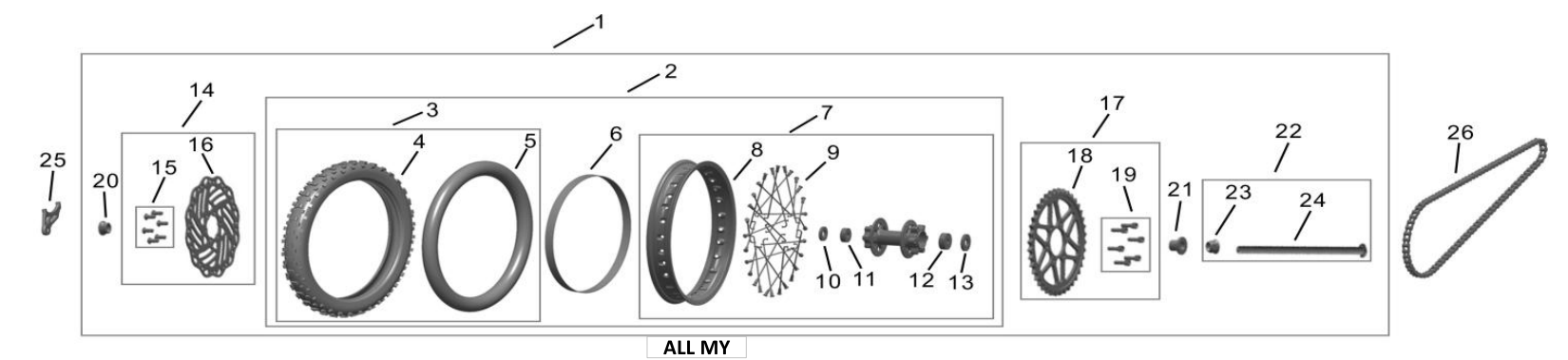

2026 Surron Hyper Bee - 70/100-12-inch Rear Off-road Wheel Assembly Parts Diagram

Find your part number in the diagram, then click its Description to add or remove it from your Parts Request.

2026 Hyper Bee catalog includes MY25, MY26 and ALL MY parts. Match the year and variant shown on each row before requesting parts. MSRP is per part; pricing and availability are subject to confirmation.

Click diagram to enlarge

FIND & SELECT YOUR PARTS

DESCRIPTION: Click to add/remove from your Parts Request.
QTY: Required assembly quantity listed in the catalog.

NO.	PART #	DESCRIPTION / YEAR	MSRP	QTY
8_01	51300-Y026A-Z1	12''REAR Wheel Assy. W/ Break Disc+Sprocket+ ADDALL MY	$424.00	1
8_01	51300-Y026A-Z2	10''REAR Wheel Assy. W/ Break Disc+Sprocket+ ADDALL MY	$413.00	1
8_02	51370-Y026A-Z1	12''REAR Wheel Assy.+ ADDALL MY	$312.00	1
8_02	51370-Y026A-Z2	10''REAR Wheel Assy.+ ADDALL MY	$301.00	1
8_03	51331-Y026A-Z1	12''REAR Wheel outer tyre Assy.+ ADDALL MY	$84.10	1
8_03	51331-Y026A-Z2	10''REAR Wheel outer tyre Assy.+ ADDALL MY	$74.30	1
8_04	51331-Y026A-0000	REAR MT Tyre 70/100-12+ ADDALL MYCannot be purchased separately.	Call for price	1
8_04	51331-Y026A-0100	REAR MT Tyre 70/100-10+ ADDALL MYCannot be purchased separately.	Call for price	1
8_05	51332-Y026A-0000	REAR Tyre Inner Tube 2.25/2.50-12+ ADDALL MYCannot be purchased separately.	Call for price	1
8_05	51332-Y026A-0100	REAR Tyre Inner Tube 2.25/2.50-10+ ADDALL MYCannot be purchased separately.	Call for price	1
8_06	51266-Y026A-0100	Rim Band 12-20+ ADDALL MY	$3.90	1
8_06	51366-Y026A-0100	Rim Band 10-20+ ADDALL MY	$3.00	1
8_07	51370-Y026A-0000	REAR Wheel Rim 12in Set+ ADDALL MY	$224.00	1
8_07	51370-Y026A-0100	REAR Wheel Rim 10in Set+ ADDALL MY	$224.00	1
8_08	51371-Y026A-0000	REAR Wheel Rim 12in+ ADDALL MY	$79.00	1
8_08	51371-Y026A-0100	REAR Wheel Rim 10in+ ADDALL MY	$79.00	1
8_09	51391-Y026A-0100	REAR Wheel Inside Spoke Set+ ADDALL MY	$0.40	14
8_09	51391-Y026A-0200	REAR Wheel Outside Spoke Set+ ADDALL MY	$0.40	14
8_09	51391-Y026A-0300	REAR Wheel Inside Spoke Set+ ADDALL MY	$0.40	14
8_09	51391-Y026A-0400	REAR Wheel Outside Spoke Set+ ADDALL MY	$0.40	14
8_10	B7-001-17-32-05	L Seal Ring B7001 d1732+ ADDALL MY	$4.40	1
8_11	Z-6201-32-12-10	L REAR Wheel Bearing+ ADDALL MY	$11.30	1
8_12	Z-6301-37-12-12	R REAR Wheel Bearing+ ADDALL MY	$11.30	1
8_13	B7-001-17-38-05	R Seal Ring B7001 d1738+ ADDALL MY	$4.40	1
8_14	52271-Y026A-Z1	REAR Brake Disc Set+ ADDALL MY	$22.50	1
8_15	FB03-006-05-010-F3	Screw FB03006 M5*10+ ADDALL MY	$0.40	6
8_16	52271-Y026A-0000	Rear Brake Disc 160-22+ ADDALL MYCannot be purchased separately.	Call for price	1
8_17	13204-Y026A-Z1	REAR Sprocket Set(41/420)+ ADDALL MY	$50.50	1
8_17	13204-Y026A-Z2	REAR Sprocket Set (37/420)+ ADDALL MY	$50.50	1
8_18	13204-Y026A-0000	REAR Sprocket 41T+ ADDALL MYCannot be purchased separately.	Call for price	1
8_18	13204-Y026A-0100	REAR Sprocket 37T+ ADDALL MYCannot be purchased separately.	Call for price	1
8_19	FB03-019-06-016-F10	Screw FB03019 M6*16+ ADDALL MY	$0.40	6
8_20	51362-Y026A-0000	L REAR Wheel Bushing+ ADDALL MY	$11.30	1
8_21	51361-Y026A-0000	R REAR Wheel Bushing+ ADDALL MY	$8.20	1
8_22	51350-Y026A-Z1	REAR Wheel Axle Set+ ADDALL MY	$19.50	1
8_23	B2-007-12-F2	REAR Wheel Nut+ ADDALL MY	$0.80	1
8_24	51350-Y026A-0000	REAR Wheel Axle+ ADDALL MY	Call for price	1
8_25	52280-Y026A-0000	REAR Brake Caliper Support Bracket+ ADDALL MY	$35.00	1
8_26	13114-Y026A-0200	Drive Chain 420-94+ ADDALL MY	$78.00	1
8_26	13114-Y026A-0300	Drive Chain 420-92+ ADDALL MY	$78.00	1
