1. Frame

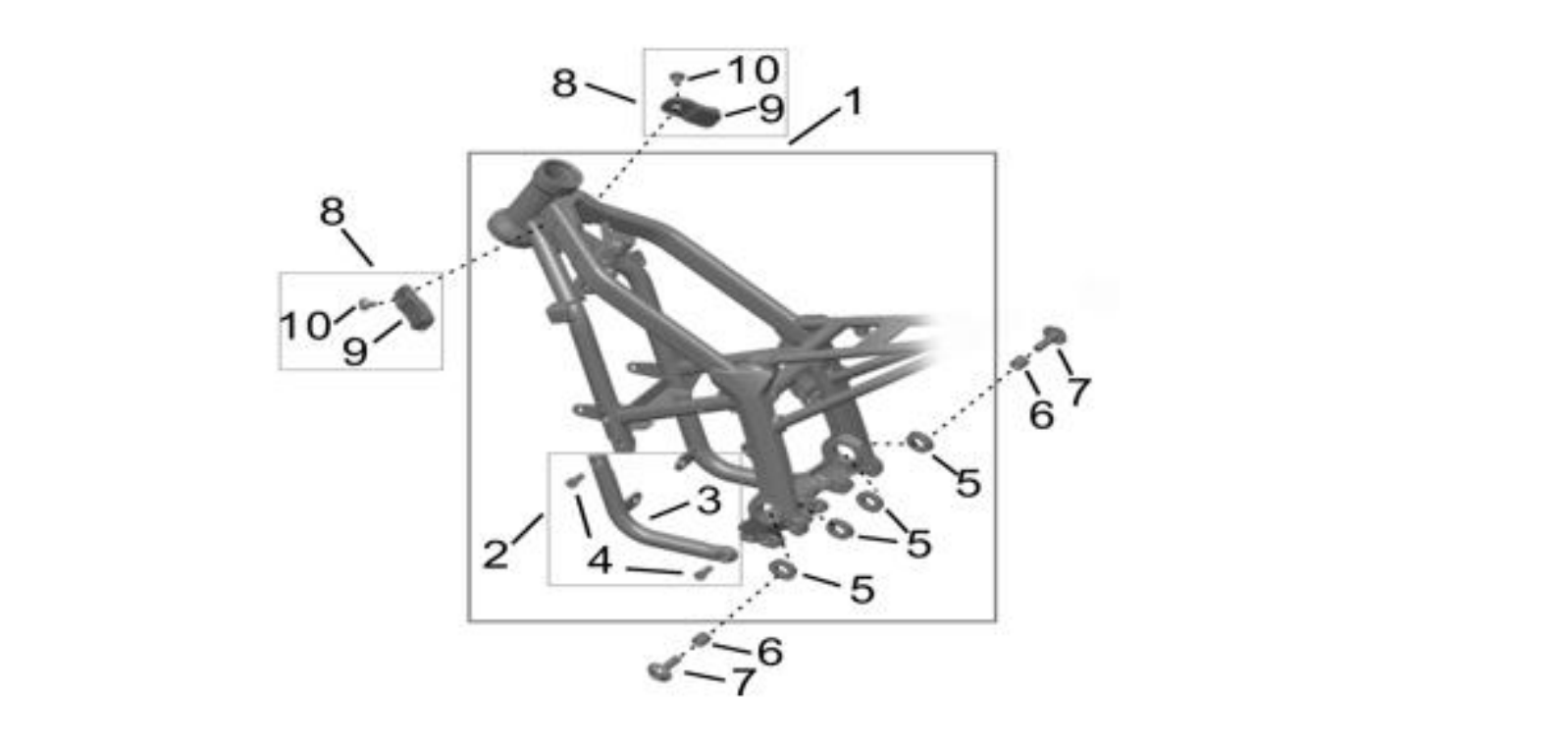

2025 Surron Hyper Bee - Frame Parts Diagram

Find your part number in the diagram, then click its Description to add or remove it from your Parts Request.

2025 Hyper Bee catalog, HB Version 032825. Match wheel size, color and other variants before requesting parts. MSRP is per part; pricing and availability are subject to confirmation.

FIND & SELECT YOUR PARTS
DESCRIPTION: Click to add/remove from your Parts Request.
QTY: Required assembly quantity listed in the catalog.
NO. PART # DESCRIPTION / YEAR MSRP QTY
1_01 41100-Y026A-0000-Y4 MY2025Replacement only. Not for sale $845.00 1
1_02 41210-Y026A-Z1 MY2025 $70.00 1
1_04 B3-001-08-020-F0 MY2025same as LBX's $0.60 2
1_05 Z-F6902RS-28-15-07 MY2025 $4.00 4
1_06 41151-Y026A-0000 MY2025 $3.00 2
1_07 61260-Y026A-0000 MY2025 $0.80 2
1_08 51137-Y026A-Z1 MY2025 $5.00 2
1_10 FB01-001-06-012-F0 MY2025same as UB's $0.40 2

Selected Parts (0)

Estimated Total: $0.00
