20. Cover 2 / Horn

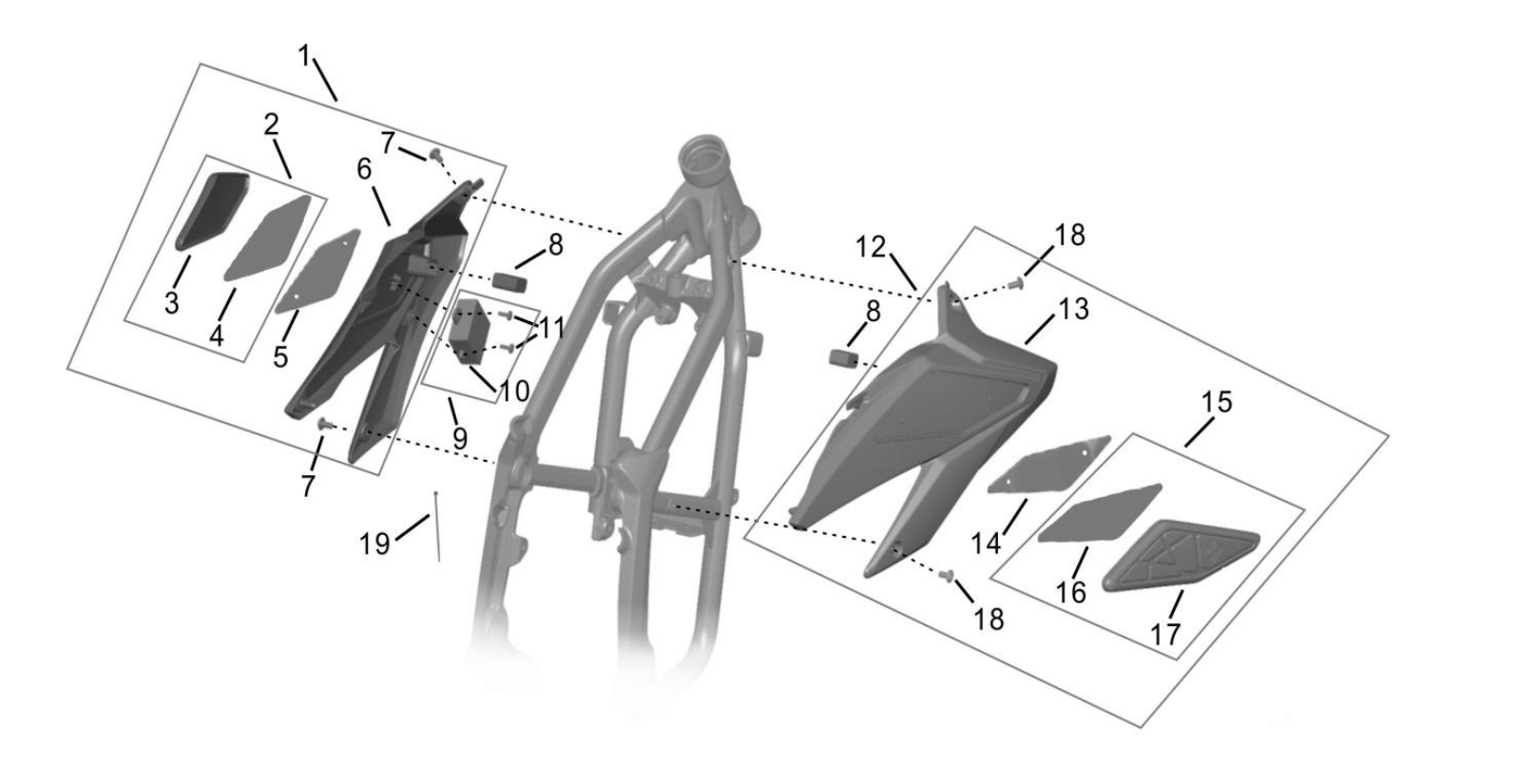

2025 Surron Hyper Bee - Cover (II) / Horn Parts Diagram

Find your part number in the diagram, then click its Description to add or remove it from your Parts Request.

2025 Hyper Bee catalog, HB Version 032825. Match wheel size, color and other variants before requesting parts. MSRP is per part; pricing and availability are subject to confirmation.

Click diagram to enlarge

FIND & SELECT YOUR PARTS

DESCRIPTION: Click to add/remove from your Parts Request.
QTY: Required assembly quantity listed in the catalog.

NO.	PART #	DESCRIPTION / YEAR	MSRP	QTY
20_01	32030-Y026A-Z1	L Front Shroud Set+ ADDMY2025	$37.20	1
20_02	32036-Y026A-Z1	L Front Shroud Cushion Set+ ADDMY2025	$15.50	1
20_05	32037-Y026A-0000	L Front Shroud Velcro Hook Surface+ ADDMY2025price is not available	Call for price	1
20_07	FB03-001-06-012-F0	Screw FB03001 M6*12+ ADDMY2025same as LBX and UB's	$0.80	2
20_08	32035-Y026A-0000	Front Shroud Inner Foam Pad+ ADDMY2025price is not available	Call for price	2
20_09	29340-Y026A-Z1	Horn Set+ ADDMY2025	$9.00	1
20_11	FB03-003-04-013-F3	Screw FB03003 M4*13+ ADDMY2025same as LBX and UB's	$0.40	2
20_12	32040-Y026A-Z1	R Front Shroud Assy.+ ADDMY2025	$37.20	1
20_14	32048-Y026A-0000	R Front Shroud Velcro Hook Surface+ ADDMY2025price is not available	Call for price	1
20_15	32046-Y026A-Z1	R Front Shroud Cushion Set+ ADDMY2025	$18.20	1
20_18	FB03-001-06-012-F0	Screw FB03001 M6*12+ ADDMY2025same as LBX and UB's	$0.80	2
20_19	81147-YQ2A-0000	Cable Tie 3.6*150+ ADDMY2025same as LBX's	$0.40	2
