25. Seat / Rear Fender

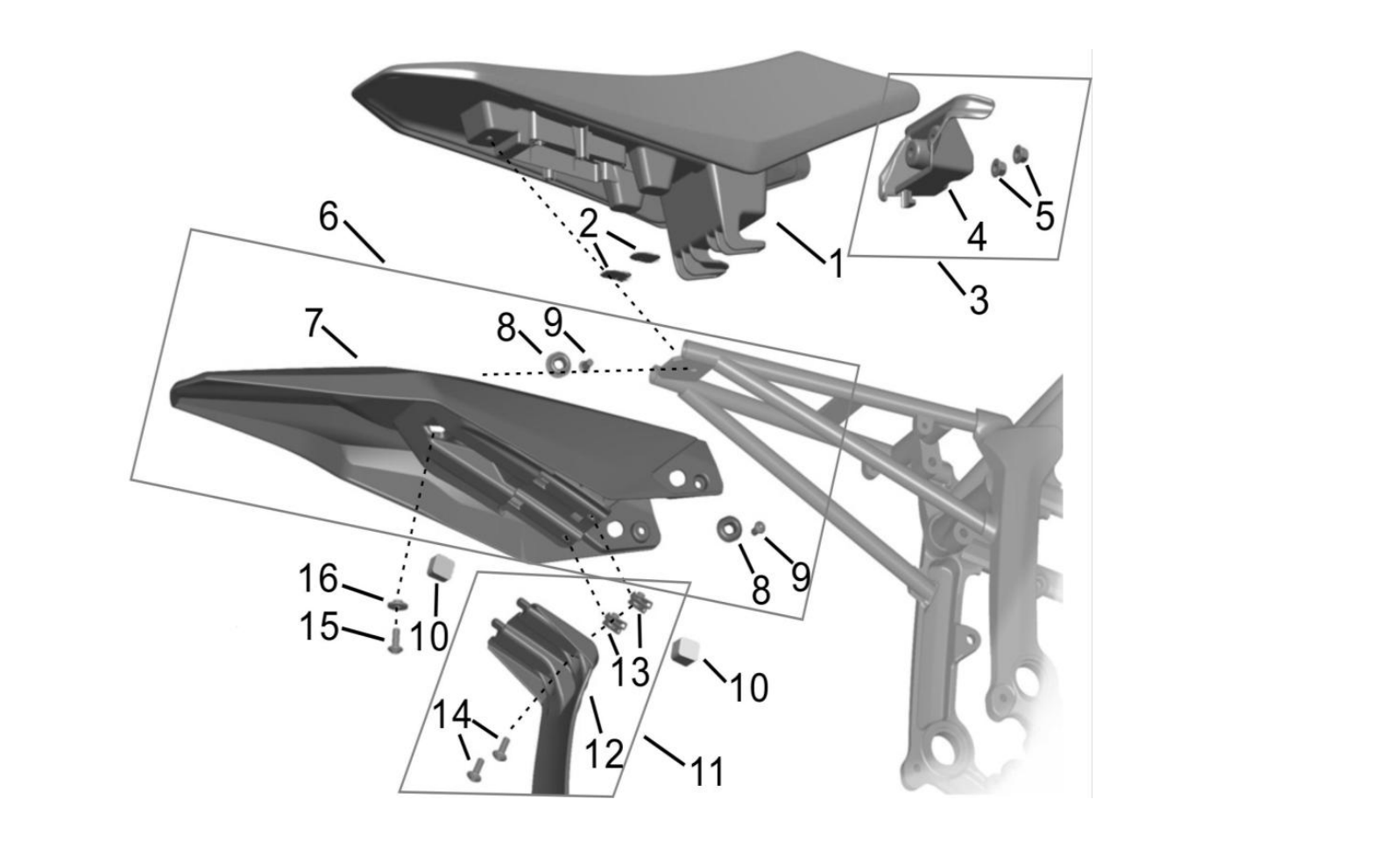

2025 Surron Hyper Bee - Seat / Rear Fender Parts Diagram

Find your part number in the diagram, then click its Description to add or remove it from your Parts Request.

2025 Hyper Bee catalog, HB Version 032825. Match wheel size, color and other variants before requesting parts. MSRP is per part; pricing and availability are subject to confirmation.

Click diagram to enlarge

FIND & SELECT YOUR PARTS

DESCRIPTION: Click to add/remove from your Parts Request.
QTY: Required assembly quantity listed in the catalog.

NO.	PART #	DESCRIPTION / YEAR	MSRP	QTY
25_01	32300-Y026A-0000	Seat Assy.(Black, STD)+ ADDMY2025	$75.00	1
25_01	32300-Y026A-0000-Y08	Seat Assy.(Yellow, STD)+ ADDMY2025	$75.00	1
25_01	32300-Y026A-0100	Seat Assy.(Black, Lower)+ ADDMY2025	$75.00	1
25_01	32300-Y026A-0100-Y08	Seat Assy.(Yellow, Lower)+ ADDMY2025	$75.00	1
25_02	32311-Y026A-0000	Seat buffer adhesive tape+ ADDMY2025	$0.40	2
25_03	32354-Y026A-Z1	Seat Front Guard Set+ ADDMY2025	$13.40	1
25_05	B2-015-06-F2	Nut B2015 M6+ ADDMY2025same as LBX and UB's	$0.40	2
25_06	31321-Y026A-Z1	REAR Fender Set (Black)+ ADDMY2025	$32.40	1
25_06	31321-Y026A-Z1-Y01	REAR Fender Set (White)+ ADDMY2025	$32.40	1
25_08	81115-Y026A-0000	REAR Guard Rubber Absorber+ ADDMY2025	$0.40	2
25_09	B3-002-06-010-F0	Screw B3002 M6*10+ ADDMY2025same as LBX and UB's	$0.40	2
25_10	81176-Y026A-0000	REAR Fender Support Foam Pad+ ADDMY2025	$3.00	2
25_11	31311-Y026A-Z1	REAR Mudguard Set+ ADDMY2025	$23.20	1
25_13	FB02-001-06-F2	Clip Nut M6+ ADDMY2025same as LBX and UB's	$0.40	2
25_14	FB03-019-06-016-F10	Screw B1008 M6*12+ ADDMY2025	$0.40	2
25_15	FB03-001-06-016-F0	Screw FB3001 M6*16+ ADDMY2025	$0.40	1
25_16	31218-YS1A-0000	REAR Fender Bushing+ ADDMY2025same as UB's	$0.40	1
