5. Front Fork

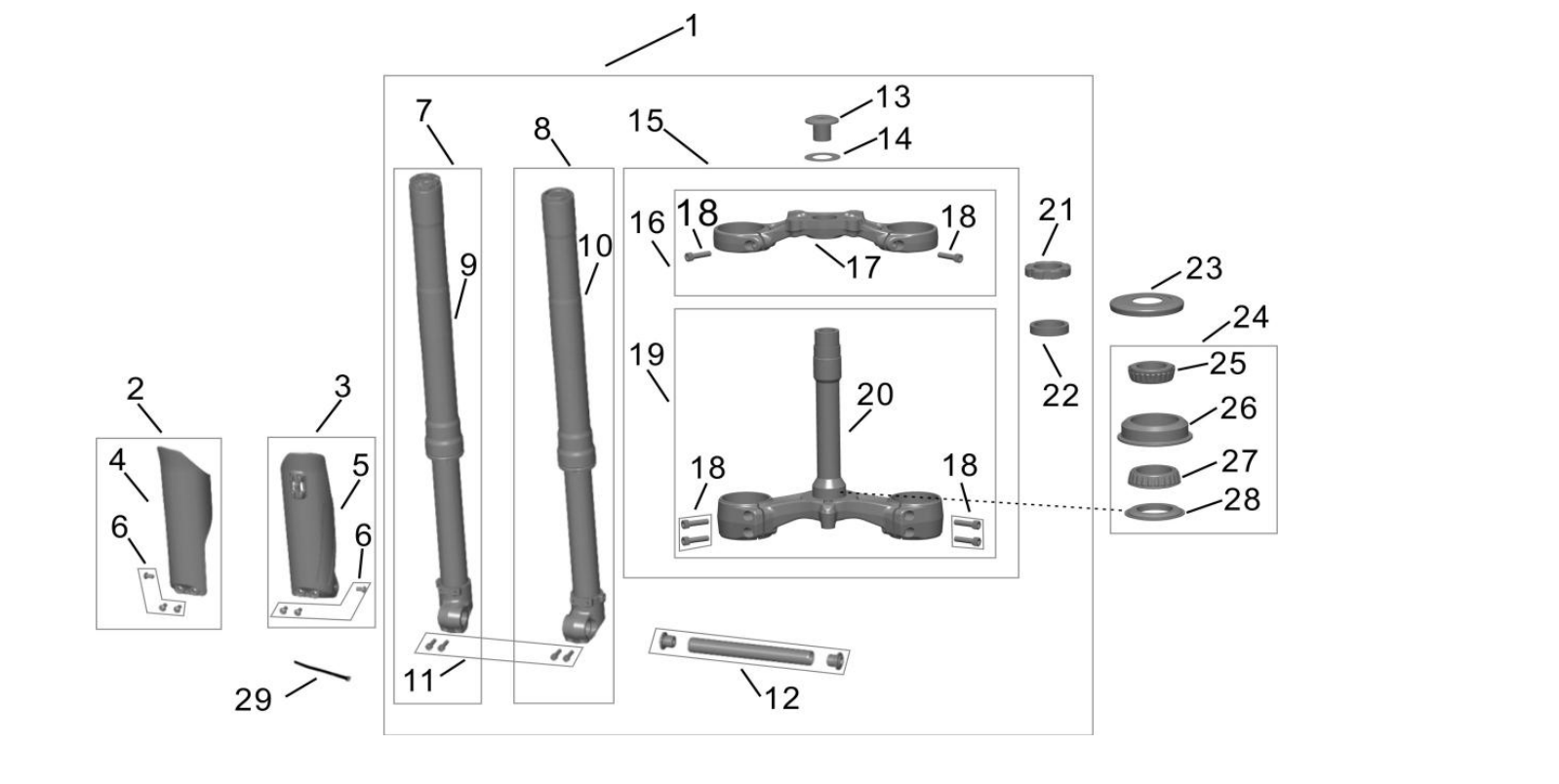

2025 Surron Hyper Bee - Front Fork Parts Diagram
Find your part number in the diagram, then click its Description to add or remove it from your Parts Request.
2025 Hyper Bee catalog, HB Version 032825. Match wheel size, color and other variants before requesting parts. MSRP is per part; pricing and availability are subject to confirmation.
DESCRIPTION: Click to add/remove from your Parts Request.
QTY: Required assembly quantity listed in the catalog.
QTY: Required assembly quantity listed in the catalog.
| NO. | PART # | DESCRIPTION / YEAR | MSRP | QTY |
|---|---|---|---|---|
| 5_01 | 51000-Y026A-0000 | MY2025 | $821.00 | 1 |
| 5_02 | 32280-Y026A-Z1 | MY2025 | $18.60 | 1 |
| 5_03 | 32270-Y026A-Z2 | MY2025 | $18.60 | 1 |
| 5_06 | B3-002-05-010-F0 | MY2025same as LBX and UB's | $0.40 | 6 |
| 5_07 | 54200-Y026A-Z1 | MY2025 | $210.00 | 1 |
| 5_08 | 54100-Y026A-Z2 | MY2025 | $440.00 | 1 |
| 5_11 | B3-001-05-018-F0 | MY2025 | $0.40 | 4 |
| 5_12 | 51250-YQ1A-0000 | MY2025 | $63.00 | 1 |
| 5_13 | 51141-Y026A-0000 | MY2025 | $0.90 | 1 |
| 5_14 | 51142-Y026A-0000 | MY2025 | $1.20 | 1 |
| 5_15 | 51120-Y026A-Z1 | MY2025 | $150.00 | 1 |
| 5_16 | 51121-Y026A-Z1 | MY2025 | $55.00 | 1 |
| 5_18 | B3-001-05-018-F0 | MY2025 | $0.40 | 6 |
| 5_19 | 51110-Y026A-Z2 | MY2025 | $95.00 | 1 |
| 5_21 | 51133-Y026A-0000 | MY2025 | $1.20 | 1 |
| 5_22 | 51195-Y026A-0000 | MY2025 | $1.20 | 1 |
| 5_23 | 51126-Y026A-0000 | MY2025 | $3.80 | 1 |
| 5_24 | 51182-Y026A-Z1 | MY2025 | $36.80 | 1 |
| 5_25 | Z-32905-42-25-12 | MY2025 | $13.00 | 1 |
| 5_26 | 51182-Y026A-0200 | MY2025 | $13.40 | 1 |
| 5_27 | Z-32906x-47-30-12 | MY2025same as LBX and UB's | $13.00 | 1 |
| 5_28 | 51186-YQ2A-0001 | MY2025 | $3.90 | 1 |
| 5_29 | 95206 | MY2025same as LBX's | $1.30 | 1 |
