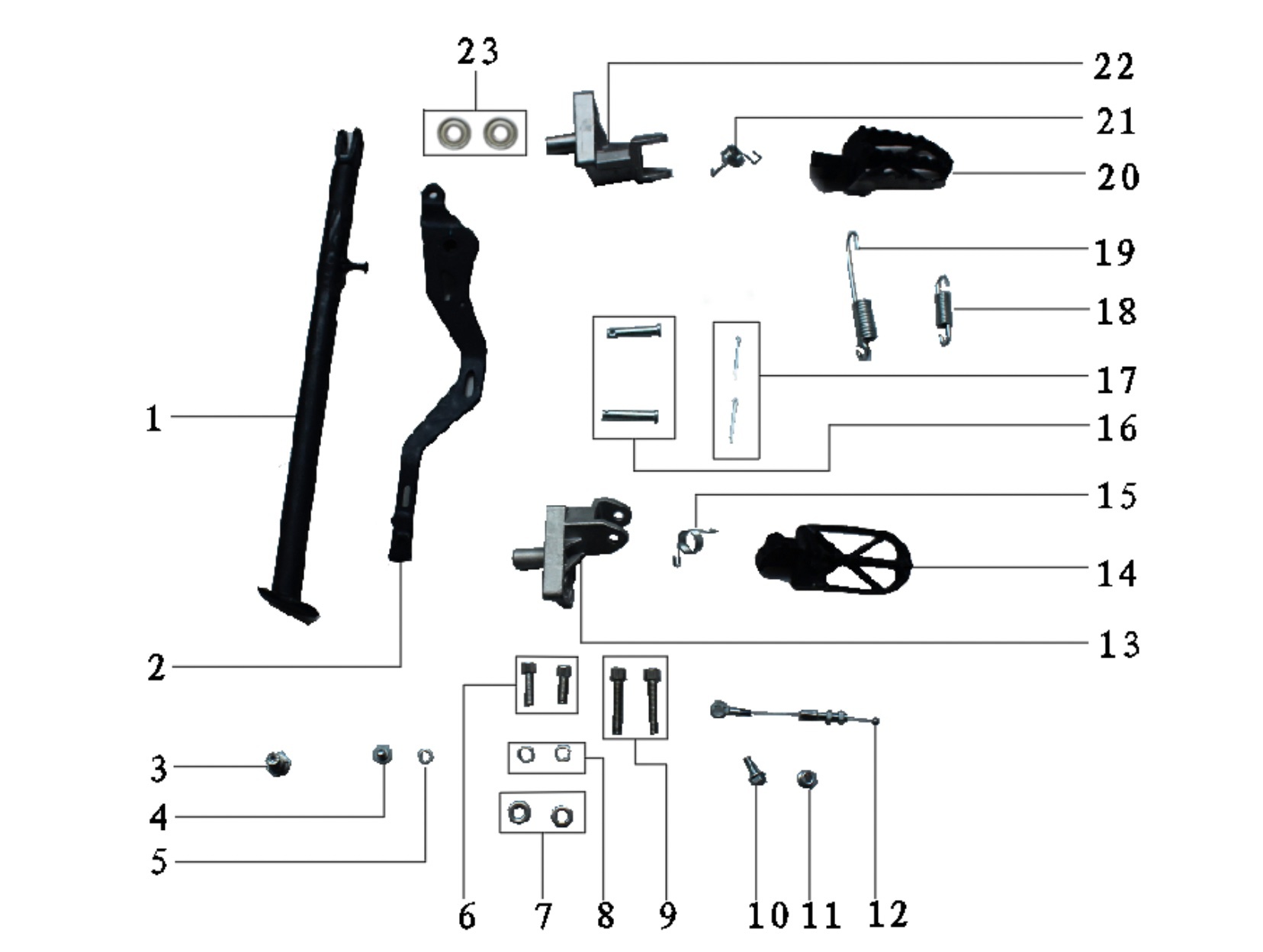

Kickstand & Foot Pegs
| Pedal | ||
| No. | Description | QTY |
| 1 | V2S SIDE STAND L=430 17/14 | 1 |
| 1-1 | 1 | |
| 2 | V ATTACHED TO THE UP-WALK BRAKE PEDAL ASSEMBLY | 1 |
| 2-1 | 1 | |
| 3 | FLANGE BOLT M10*25 S17 | 1 |
| 4 | FLANGE BOLT M6*12 | 1 |
| 5 | LOCK WASHERΦ6 | 1 |
| 6 | FLANGE BOLT M8*20 | 2 |
| 7 | WASHER Φ8*16*1.5 | 2 |
| 8 | LOCK WASHERΦ8*13*2 | 2 |
| 9 | FLANGE BOLT M8*40 | 2 |
| 10 | FLANGE BOLT M6*16 | 1 |
| 11 | FLANGE BOLT M6 | 1 |
| 12 | V1S REAR BRAKE PEDAL PULL CABLE L=115 M6*25 | 2 |
| 13 | SY LEFT FOOT TREADER | 1 |
| 14 | RIGHT FOOTPEG | 1 |
| 15 | RIGHT FOOT SPRING Φ18.8*Φ1.8*H7.5*4 | 1 |
| 16 | AXIS PIN Φ8*42.5+Φ3*39 | 2 |
| 17 | SPLIT COTTER 2.5*30 | 2 |
| 17 | REAR BRAKE TENSION SPRING Φ12*Φ2*H27 L=62 | 1 |
| 19 | SIDE STAND SPRING Φ15*Φ2.5*H40 L=110 | 1 |
| 20 | LEFT RIGHT FOOTPEG | 1 |
| 21 | LEFT FOOT STEP SPRING Φ18.8*Φ1.8*H7.5*4 | 1 |
| 22 | SY RIGHT-SIDE FOOT TREADER | 1 |
| 23 | BRAKE PEDAL BEARING | 2 |
