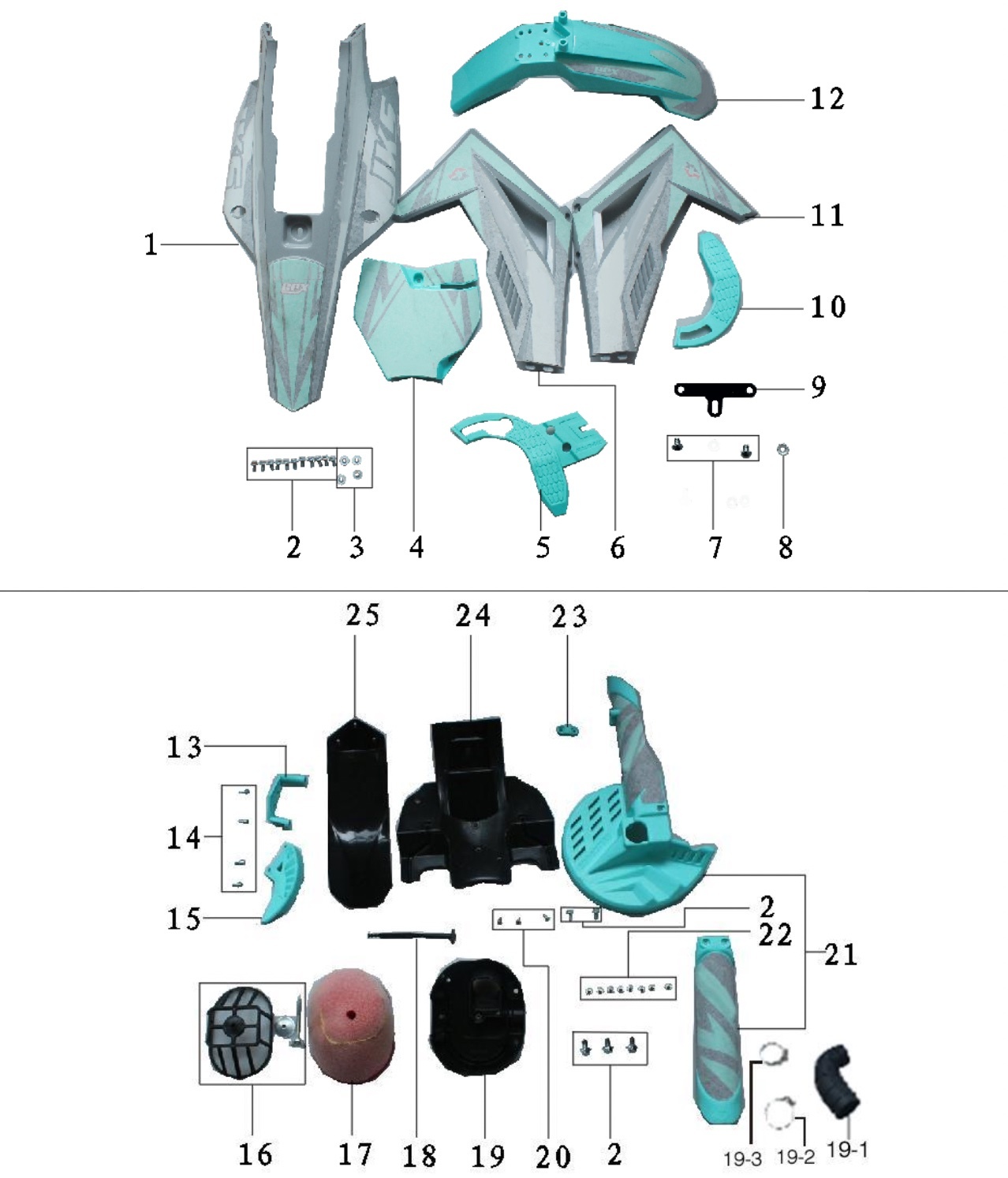

| 1 |
GREY KTM65 REAR FENDER |
1 |
| 1-1 |
GREY KTM65 REAR FENDER |
1 |
| 2 |
FLANGE BOLT M6*12 |
16 |
| 3 |
SHIM Φ6.3*16.5*H4 |
1 |
| 4 |
GREY KTM65 FRONT FENDER |
1 |
| 4-1 |
GREY KTM65 FRONT FENDER |
1 |
| 5 |
GREY V2S FRONT RIGHT FENDER |
1 |
| 5-1 |
GREY V2S FRONT RIGHT FENDER |
1 |
| 6 |
GREY V2S FRONT LEFT FENDER |
1 |
| 6-1 |
GREY V2S FRONT LEFT FENDER |
1 |
| 7 |
FLANGE BOLT M6*12 |
2 |
| 8 |
FLANGE BOLT M6 |
1 |
| 9 |
K1 PANEL BRACKET 2-Φ7 |
1 |
| 10 |
GREY V2S FRAME LEFT GUARD PLATE |
1 |
| 10-1 |
GREY V2S FRAME LEFT GUARD PLATE |
1 |
| 11 |
GREY V2S FRONT RIGHT GUARD |
8 |
| 11-1 |
GREY V2S FRONT RIGHT GUARD |
8 |
| 12 |
GREY KTM65 FRONT FENDER |
2 |
| 12-1 |
GREY KTM65 FRONT FENDER |
2 |
| 13 |
GREY V2S REAR BRAKE ON THE PUMP COVER |
2 |
| 13-1 |
GREY V2S REAR BRAKE ON THE PUMP COVER |
2 |
| 14 |
FLANGE BOLT M6*12 |
4 |
| 15 |
GREY V2S REAR DISC BRAKE COVER |
2 |
| 15-1 |
GREY V2S REAR DISC BRAKE COVER |
2 |
| 16 |
BLACK V2S AIR FILTER FIXING BRACKET |
1 |
| 17 |
V2S AIR FILTER SPONGE |
5 |
| 18 |
V2S SINGLE BRACE LANYARD L=140 |
1 |
| 19 |
WHITE V2S AIR FILTER BOX Φ50 |
1 |
| 19-1 |
V2S AIR FILTER PIPE |
1 |
| 19-2 |
Stainless steel hoop φ27-51 |
1 |
| 19-3 |
Stainless steel hoop φ27-51 |
1 |
| 20 |
FLANGE BOLT ST4.2*12 Φ8 |
3 |
| 21 |
GREY FRONT PROTECTION PLATE ASSEMBLY SY |
1 |
| 21-1 |
GREY FRONT PROTECTION PLATE ASSEMBLY SY |
1 |
| 22 |
FLANGE BOLT M6*12 |
8 |
| 23 |
GREY FRONT CUT GUARD BUCKLE SY |
1 |
| 23-1 |
GREY FRONT CUT GUARD BUCKLE SY |
1 |
| 24 |
BLACK V2S DYCUB |
1 |
| 25 |
BLACK V2S SMALL DYCUB |
1 |

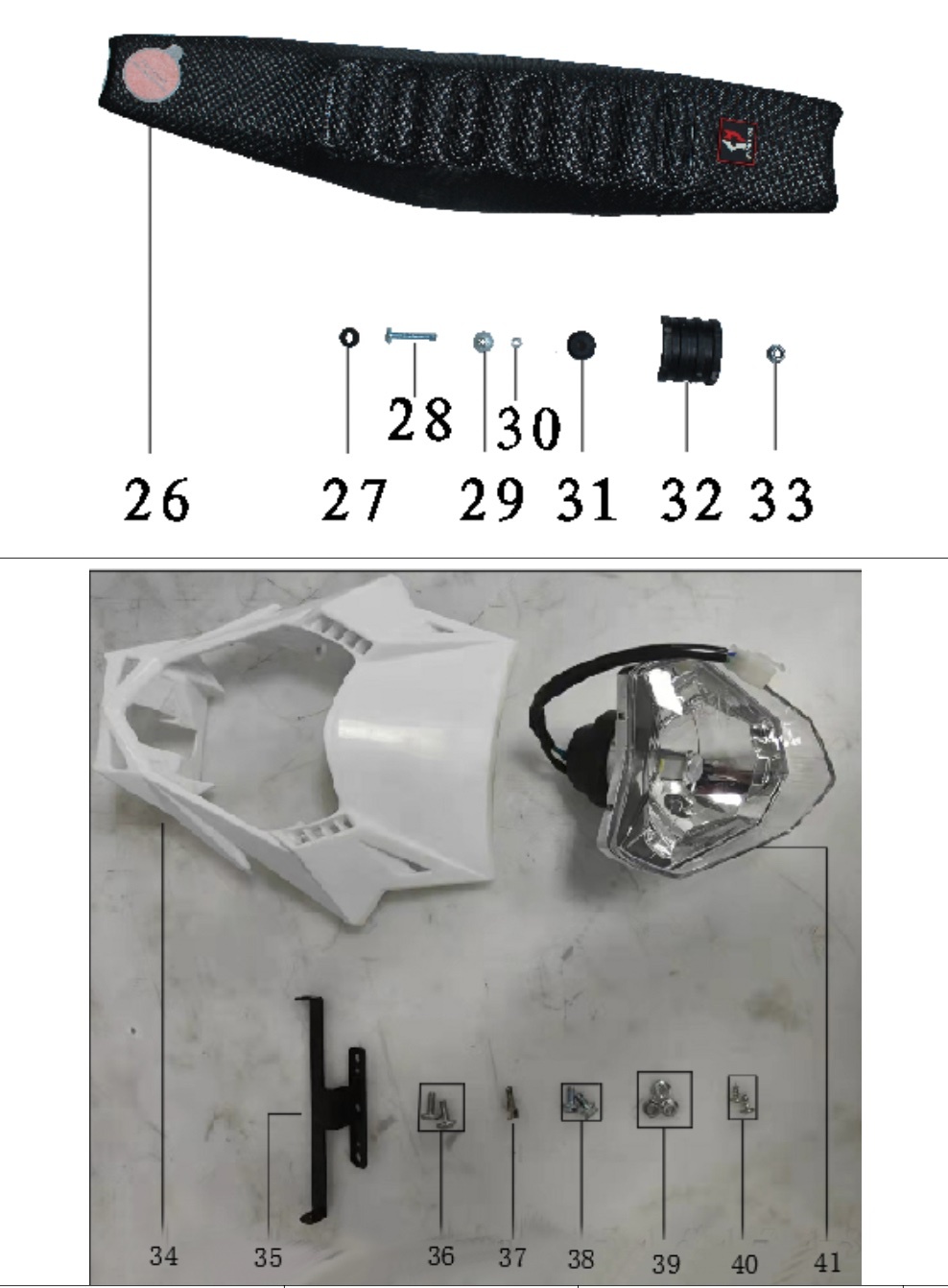

| 26 |
|
1 |
| 26-1 |
|
|
| 27 |
RUBBER O RING Φ10*18*H7 |
1 |
| 28 |
FLANGE BOLT M6*60 Φ13.5 |
1 |
| 29 |
TANK T JACKET Φ7*9*H11+Φ20*T2 |
1 |
| 30 |
ALUMINIUM BUSHING Φ6*12*L25 |
1 |
| 31 |
RUBBER T CZL |
1 |
| 32 |
|
1 |
| 33 |
FLANGE BOLT M8 |
1 |
| 34 |
WHITE LAMP SCREEN SY |
1 |
| 35 |
FRONT HEAD LAMP SUPPORT L166mm，L90MM |
1 |
| 36 |
FLANGE BOLT M6*16 |
2 |
| 37 |
FLANGE BOLT M6*16 |
1 |
| 38 |
FLANGE BOLT M6*12 |
2 |
| 39 |
FLANGE BOLT M6 |
3 |
| 40 |
FLANGE BOLT ST5*12 Φ12 |
2 |
| 41 |
HEAD LED LIGHT |
1 |
