Swingarm
|
Swingarm
|
||

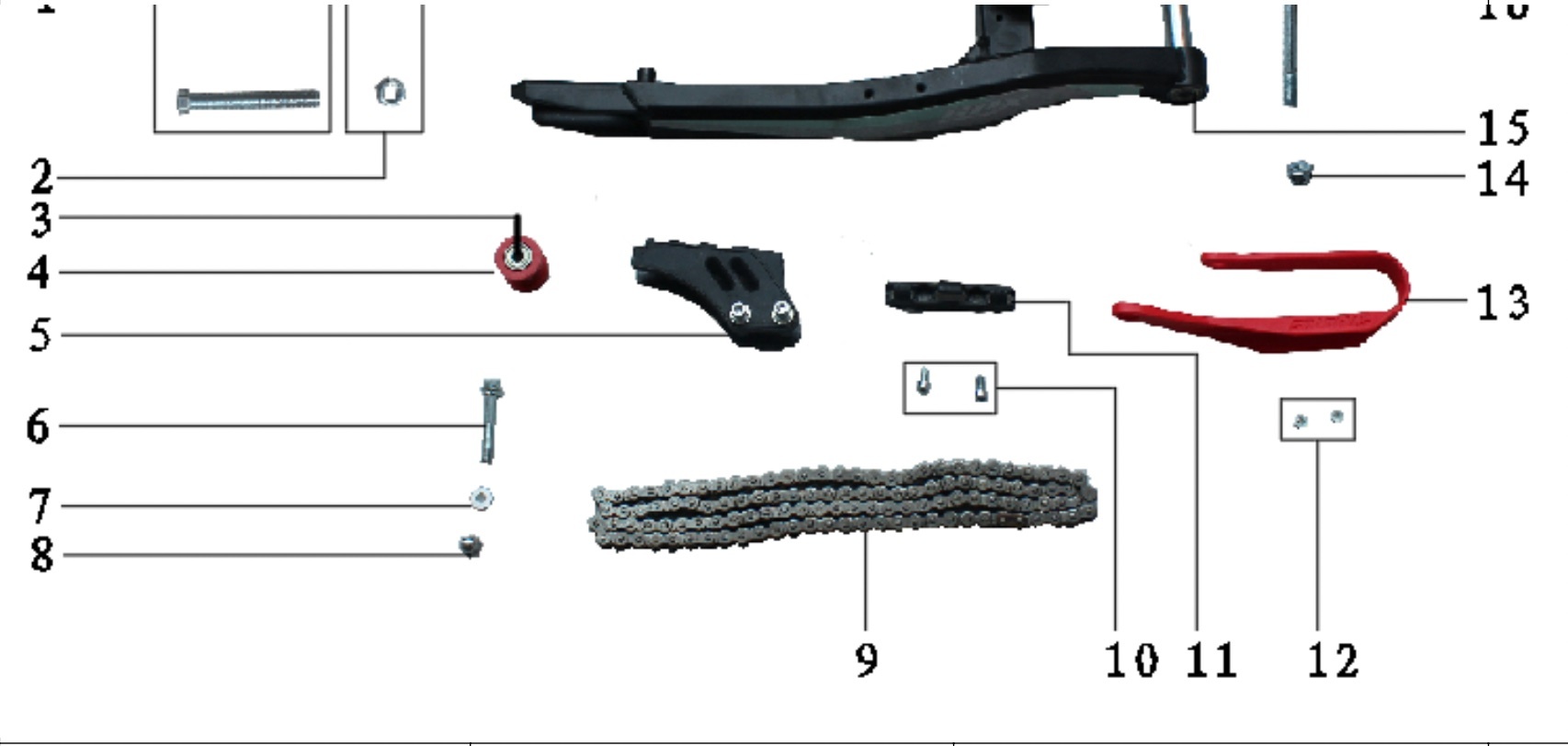

| No. | DESCRIPTION | QTY |
| 1 | FLANGE BOLT M8*40 S12 | 1 |
| 2 | FLANGE NUT M8 | 1 |
| 3 | BALL BEARING Φ8*22*H7 | 2 |
| 4 | BLACK CONCAVE GUIDE SPROCKET | 1 |
| 5 | BLACK CHAIN STOPPER ASSEMBLY | 1 |
| 6 | FLANGE BOLT M8*55 | 1 |
| 7 | BUSHING Φ8*10*L3.5 | 1 |
| 8 | FLANGE BOLT M8 | 1 |
| 9 | CHAIN SF 428H 116L | 1 |
| 10 | FLANGE BOLT M6*16 | 2 |
| 11 | BLACK REAR BRAKE TUBING SEAT | 1 |
| 12 | FLANGE BOLT M6*12 | 2 |
| 13 | FRONT CHAIN SLIDER SY | 1 |
| 14 | FLANGE BOLT M12*1.25 | 1 |
| 15 | BALL BEARING 6200Z Φ12*30*H9 | 2 |
| 16 | SWINGARM AXLE Φ12*220*M12*1.25MM | 1 |
| 17 | FLAT FORK TUBESΦ12*22*L160 | 1 |
| 18 | STEEL STRAIGHT FORK L=550 Φ15 | 1 |
| 18-1 | 1 |
