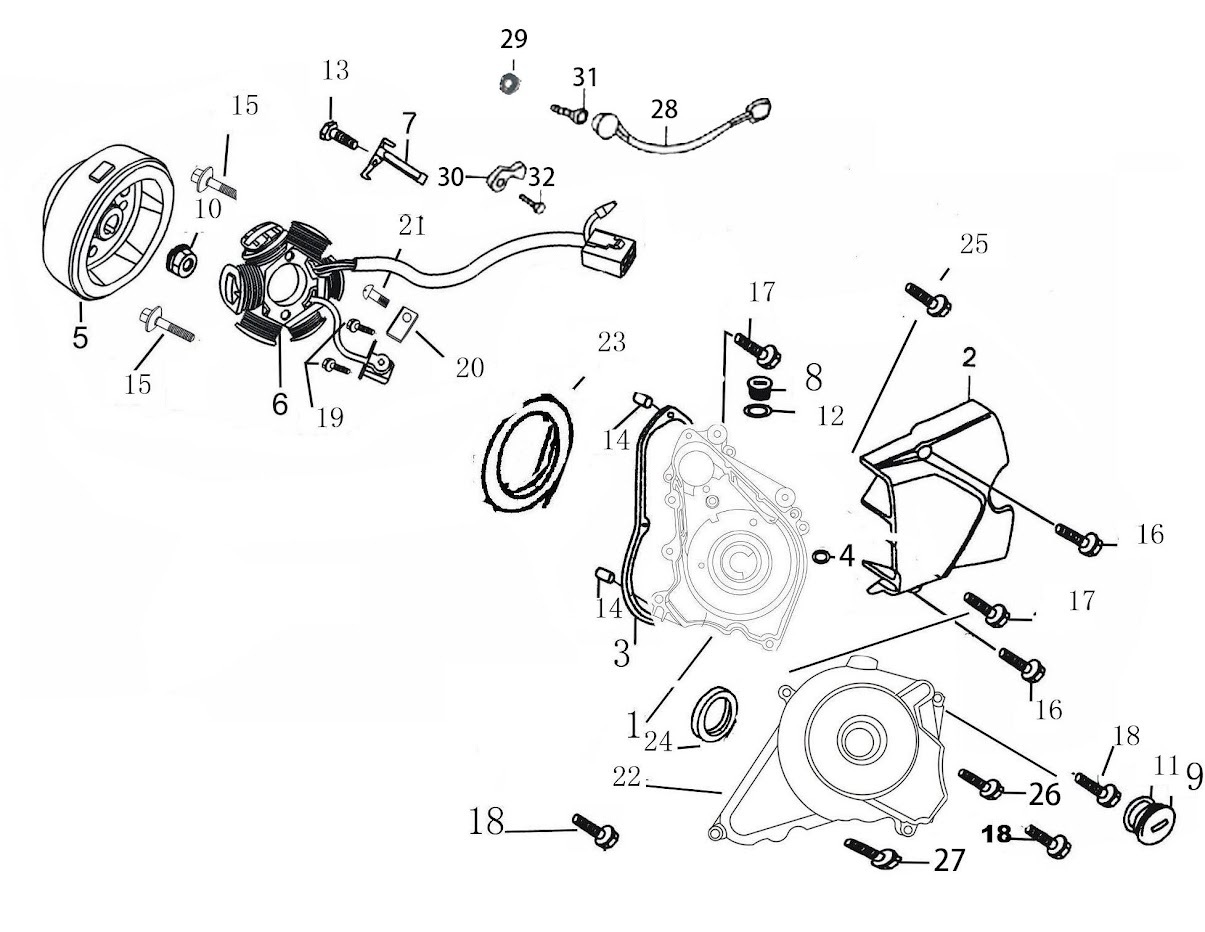

Left Crankcase Cover & Magnetic Motor
| Ref.No. | Part No. |
Description
|
Quantity |
| 1 | E08A048PW | Left Crankcase Cover Plate | 1 |
| 2 | L00WG370PW | Rear Cober.LH | 1 |
| 3 | E08B001 | Gasket,Crankcase,LH | 1 |
| 4 | D00C055 | O-ring | 1 |
| 5 | D0033D060 | Rotor,Magneto | 1 |
| 6 | D0061D070 | Stator,Magneto | 1 |
| 7 | E08L011 | Wire Clamp | 1 |
| 8 | D00A042PW | A.c generator cap | 1 |
| 9 | D00A043PW | hole plug | 1 |
| 10 | 617710000LBX-3 | Lock Nut | 1 |
| 11 | D00C051 | O-ring | 1 |
| 12 | D00C052 | O-ring | 1 |
| 13 | 96006014LBX | Bolt | 1 |
| 14 | 97008012 | Set Pin | 3 |
| 15 | 96006022LBX | Bolt | 2 |
| 16 | 96006028LBX | Bolt | 2 |
| 17 | 96006032LBX | Bolt | 3 |
| 18 | 96006035LBX | Bolt | 1 |
| 19 | 578305012LBX-1 | Screw | 2 |
| 20 | D00L024 | Wire Clamp | 1 |
| 21 | 81805006LBX | Screw | 2 |
| 22 | Crankcase Cover,LH | 1 | |
| 23 | D002C062 | O-ring | 1 |
| 24 | D00C019 | Oil seal | 1 |
| 25 | 96006105LBX | Bolt | 1 |
| 26 | 96006025LBX | Bolt | 1 |
| 27 | 96006050LBX | Bolt | 1 |
| 28 | A00C003 | Rubber plug | 1 |
| 29 | A00K062 | Washer, gearshift drum | 1 |
| 30 | 219L028 | Baffle, valve camshaft | 1 |
| 31 | 578306016LBX | Hexagon head bolt （Full-thread） | 1 |
| 32 | 96006012LBX | Bolt | 1 |
