- PAD125-1F "Roost" (2024)
- Frame
Frame
| No. | ERP No. | QTY | retail price | ||
| 1 | PAD125-1F-EPA-D-001 | 45100-019-03 | C2S Double beam frame assembly | 1 | $425.00 |
| 2 | PAD125-1F-EPA-D-002 | 40601-006-01 | C2S Thick straight pole footrest | 1 | $34.00 |
| 3 | PAD125-1F-EPA-D-003 | 32300-002-04 | C-series up walking brake pedal assembly | 1 | $30.60 |
| 4 | PAD125-1F-EPA-D-004 | 45400-002-01 | KB60 Single support | 1 | $17.00 |
| 5 | PAD125-1F-EPA-D-005 | 45200-009-01 | C2S Rear attached beam assembly | 1 | $93.50 |
| 6 | PAD125-1F-EPA-D-006 | 40603-001-01 | Left cast steel foot pedal | 1 | $17.00 |
| 6-1 | PAD125-1F-EPA-D-006-1 | 40603-002-01 | Right cast steel foot pedal | 1 | $17.00 |
| 7 | PAD125-1F-EPA-D-007 | 45500-024-01 | C2S Engine rear suspension bracket | 1 | $3.40 |
| 8 | PAD125-1F-EPA-D-008 | 32401-001 | Left foot pedal spring | 1 | $1.70 |
| 9 | PAD125-1F-EPA-D-009 | 32401-002 | Right foot pedal spring | 1 | $1.70 |
| 10 | PAD125-1F-EPA-D-010 | 80401-002 | Pin shaft Φ8*42.5+Φ3*39 | 2 | $3.40 |
| 11 | PAD125-1F-EPA-D-011 | 80402-003 | cotter pin 2.5*30 | 2 | $3.40 |
| 12 | PAD125-1F-EPA-D-012 | 80309-003 | Hexagonal cap nut M8 | 1 | $3.40 |
| 13 | PAD125-1F-EPA-D-013 | 80701-001 | Ball bearings Φ8*22*H7 | 1 | $3.40 |
| 14 | PAD125-1F-EPA-D-014 | 30304-011-05 | Concave guide sprocket | 1 | $17.00 |
| 15 | PAD125-1F-EPA-D-015 | 80320-015 | Outer hexagon small head flange bolt M8*55 | 1 | $3.40 |
| 16 | PAD125-1F-EPA-D-016 | 80301-003 | Elastic pad Φ8*13*2 | 1 | $3.40 |
| 17 | PAD125-1F-EPA-D-017 | 80201-015 | Aluminum flat bushing Φ8*10*L3.5 | 1 | $1.70 |
| 18 | PAD125-1F-EPA-D-018 | 80804-002 | Flat fork plug Φ21*30*H15 | 2 | $5.10 |
| 19 | PAD125-1F-EPA-D-019 | 32403-001 | Rear brake spring | 1 | $5.10 |
| 20 | PAD125-1F-EPA-D-020 | 80302-016 | Flat cushion Φ15*28*2 | 1 | $1.70 |
| 21 | PAD125-1F-EPA-D-021 | 80201-089 | Plain bush Φ15*22*L5 | 1 | $1.70 |
| 22 | PAD125-1F-EPA-D-022 | 32402-001 | Single stay spring Φ15*Φ2.5*H40 | 1 | $5.10 |
| 23 | PAD125-1F-EPA-D-023 | 80322-001 | Outer hexagon step bolt M10*22 | 1 | $3.40 |

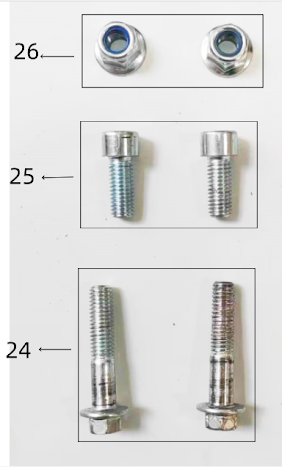

| 24 | PAD125-1F-EPA-D-024 | 80320-012 | Outer hexagon small head flange bolt M8*40 | 2 | $1.70 |
| 25 | PAD125-1F-EPA-D-025 | 80314-020 | Hex socket cylindrical head screw M8*20 | 2 | $3.40 |
| 26 | PAD125-1F-EPA-D-026 | 80308-007 | Hexagonal flange nylon locking nut M8 | 2 | $3.40 |
