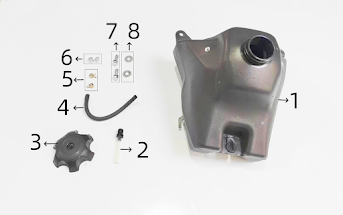

Fuel Tank Assembly

No.   ERP No.   QTY retail price
1 PAD125-1F-EPA-L-001 70501-009-01 Fuel tank assembly 1 $51.00
2 PAD125-1F-EPA-L-002 70505-002-07 Bidirectional aluminum vent valve 1 $5.10
3 PAD125-1F-EPA-L-003 70503-001 CRF50 Plastic fuel tank cover 1 $8.50
4 PAD125-1F-EPA-L-004 80802-001 Oil pipe Φ4.5*8.5 1 $3.43
5 PAD125-1F-EPA-L-005 80602-008 Fuel pipe buckle Φ8 2 $3.40
6 PAD125-1F-EPA-L-006 80201-021 Plain bush Φ8*11*L10 2 $3.40
7 PAD125-1F-EPA-L-007 80320-009 Outer hexagon small head flange bolt M8*25 2 $3.40
8 PAD125-1F-EPA-L-008 80302-007 Flat cushion Φ8*22*1.5 2 $3.40
9 PAD125-1F-EPA-L-009 80802-011 Oil pipe Φ4.5*8.5 1 $3.43
10 PAD125-1F-EPA-L-010 11701-007 fuel filte 1 $3.40
11 PAD125-1F-EPA-L-011 80802-011 Oil pipe Φ4.5*8.5 1 $3.43
12 PAD125-1F-EPA-L-012 80602-008 Fuel pipe buckle Φ8 3 $3.40
13 PAD125-1F-EPA-L-013 80602-011 Fuel pipe buckle Φ8 1 $1.70
14 PAD125-1F-EPA-L-014 70504-001 Oil tank switch 1 $13.60
15 PAD125-1F-EPA-L-015 45600-092 Oil tank switch bracket 1 $6.80
16 PAD125-1F-EPA-L-016 80314-010 Hex socket cylindrical head screws 1 $1.70
17 PAD125-1F-EPA-L-017 80306-001 Hexagon flange with tooth nut 1 $3.40
