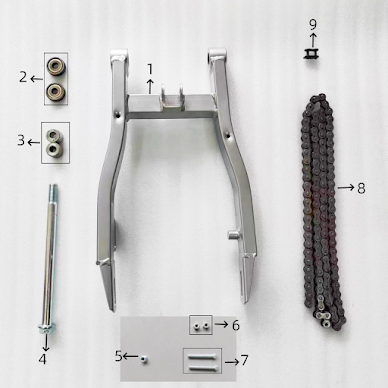

Swingarm
| No. | ERP No. | QTY | retail price | ||
| 1 | PAD125-1F-EPA-E-001 | 45300-005-01 | C2S Steel straight cross L=410 | 1 | $68.00 |
| 2 | PAD125-1F-EPA-E-002 | 80701-007 | Ball bearings Φ12*30*H9 | 2 | $6.80 |
| 3 | PAD125-1F-EPA-E-003 | 80201-069 | Plain bush Φ12*20*H17 | 2 | $5.10 |
| 4 | PAD125-1F-EPA-E-004 | 80101-016 | Hexagonal flange shaft Φ12*210*M12*1.25mm | 1 | $13.60 |
| 5 | PAD125-1F-EPA-E-005 | 80308-009 | Hexagonal flange nylon locking nut M12*1.25 | 1 | $13.60 |
| 6 | PAD125-1F-EPA-E-006 | 80305-006 | Hexagonal opposite side nut M8 | 2 | $3.40 |
| 7 | PAD125-1F-EPA-E-007 | 80319-010 | Hexagonal opposite side bolt M8 | 2 | $6.80 |
| 8 | PAD125-1F-EPA-E-008 | 30300-017 | Chain SF 420 104L | 1 | $34.00 |
| 9 | PAD125-1F-EPA-E-009 | 30301-007 | chain joint | 1 | $1.70 |
