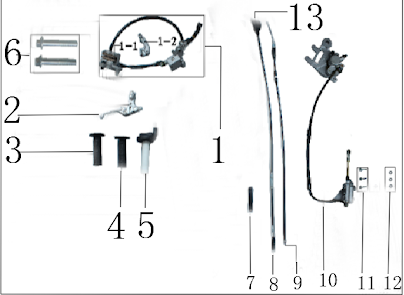

Brake System
| # | Part# | Description | QTY | retail price | |
| 1 | PAD140-V2/PAD125-V2-H-001 | 32100-122 | Front double disc brake assembly Anjie | 1 | $64.70 |
| 1-1 | PAD140-V2/PAD125-V2-H-001-1 | Disc brake shoe block | 2 | $7.61 | |
| 1-2 | PAD140-V2/PAD125-V2-H-001-2 | Disc brake bracket | 1 | $7.61 | |
| 2 | PAD140-V2/PAD125-V2-H-002 | 50207-001-02 | Clutch lever assembly | 1 | $9.13 |
| 3 | PAD140-V2/PAD125-V2-H-003 | 50206-010-07 | Left handlebar sleeve with small inner hole | 1 | $2.28 |
| 4 | PAD140-V2/PAD125-V2-H-004 | 50206-011-07 | Right handlebar sleeve | 1 | $2.28 |
| 5 | PAD140-V2/PAD125-V2-H-005 | 50211-001 | Daytona throttle seat | 1 | $13.36 |
| 6 | PAD140-V2 EPA-H-006 | 80320-011 | Outer hexagonal small head flange bolt M8*40 | 2 | $1.70 |
| 7 | PAD140-V2/PAD125-V2-H-007 | 80808-003-03 | Rubber wire harness strap | 2 | $1.70 |
| 8 | PAD140-V2/PAD125-V2-H-008 | 50213-001 | V1S front clutch line | 1 | $4.11 |
| 9 | PAD140-V2/PAD125-V2-H-009 | 50214-031 | V1S throttle cable | 1 | $3.08 |
| 10 | PAD140-V2/PAD125-V2-H-010 | 32200-072 | Rear single disc brake assembly Anjie | 1 | $54.81 |
| 11 | PAD140-V2/PAD125-V2-H-011 | 80321-005 | Outer hexagonal large head flange bolt M6*25 | 3 | $1.70 |
| 12 | PAD140-V2/PAD125-V2-H-012 | 80308-001 | Hex nylon locknut M6 | 3 | $1.70 |
| 13 | PAD140-V2/PAD125-V2-H-013 | 50213-020 | Clutch handle sheath | 1 | $3.40 |
