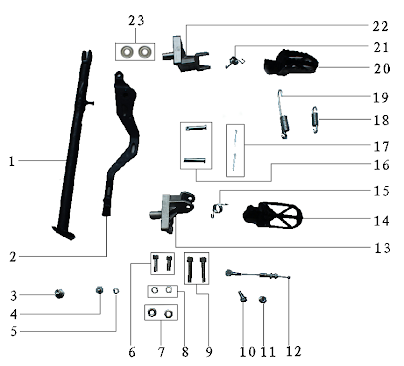

Kickstand & Foot Pegs

Pedal

No.   ERP No.   QTY retail price
1 PAD140-V2/PAD125-V2-E-001 45400-037-01 V2S single support (2021 model) 1 $27.40
2 PAD140-V2/PAD125-V2-E-002 32300-001-04 V-series upward walking brake pedal assembly 1 $21.69
3 PAD140-V2/PAD125-V2-E-003 80322-001 Outer hexagonal step bolt M10*25 1 $1.70
4 PAD140-V2/PAD125-V2-E-004 80321-002 Outer hexagonal large head flange bolt M6*12 1 $1.70
5 PAD140-V2/PAD125-V2-E-005 80301-002 Spring washer Φ6 1 $1.70
6 PAD140-V2/PAD125-V2-E-006 80314-020 Hex socket cylindrical head screw M8*20 2 $1.70
7 PAD140-V2/PAD125-V2-E-007 80302-005 Flat washer Φ8*16*1.5 2 $1.70
8 PAD140-V2/PAD125-V2-E-008 80301-003 Spring washer Φ8*13*2 2 $1.70
9 PAD140-V2/PAD125-V2-E-009 80314-024-02 Hex socket cylindrical head screw M8*40 2 $1.70
10 PAD140-V2/PAD125-V2-E-010 80321-003 Outer hexagonal large head flange bolt M6*16 1 $1.70
11 PAD140-V2/PAD125-V2-E-011 80308-006 Hexagonal flange nylon locking nut M6 1 $1.70
12 PAD140-V2/PAD125-V2-E-012 50216-005 V1S rear brake pedal cable 2 $3.08
13 PAD140-V2/PAD125-V2-E-013 45500-056-01 SY new left foot pedal bracket 1 $17.89
14 PAD140-V2/PAD125-V2-E-014 40603-002-01 Right stainless steel foot pedal 1 $16.18
15 PAD140-V2/PAD125-V2-E-015 32401-002 Right foot step spring 1 $1.70
16 PAD140-V2/PAD125-V2-E-016 80401-002 Pin shaft Φ8*42.5+Φ3*39 2 $1.70
17 PAD140-V2/PAD125-V2-E-017 80402-003 Split pin 2.5*30 2 $1.70
17 PAD140-V2/PAD125-V2-E-018 32403-001 Rear brake tension spring 1 $1.70
19 PAD140-V2/PAD125-V2-E-019 32402-003 Single support spring 1 $3.40
20 PAD140-V2/PAD125-V2-E-020 40603-001-01 Left stainless steel foot pedal 1 $16.18
21 PAD140-V2/PAD125-V2-E-021 32401-001 Left foot step spring 1 $1.70
22 PAD140-V2/PAD125-V2-E-022 45500-057-01 SY New Right Foot Step Support 1 $17.89
23 PAD140-V2/PAD125-V2-E-023 80701-002 Ball bearings Φ10*22*H6 2 $3.40
