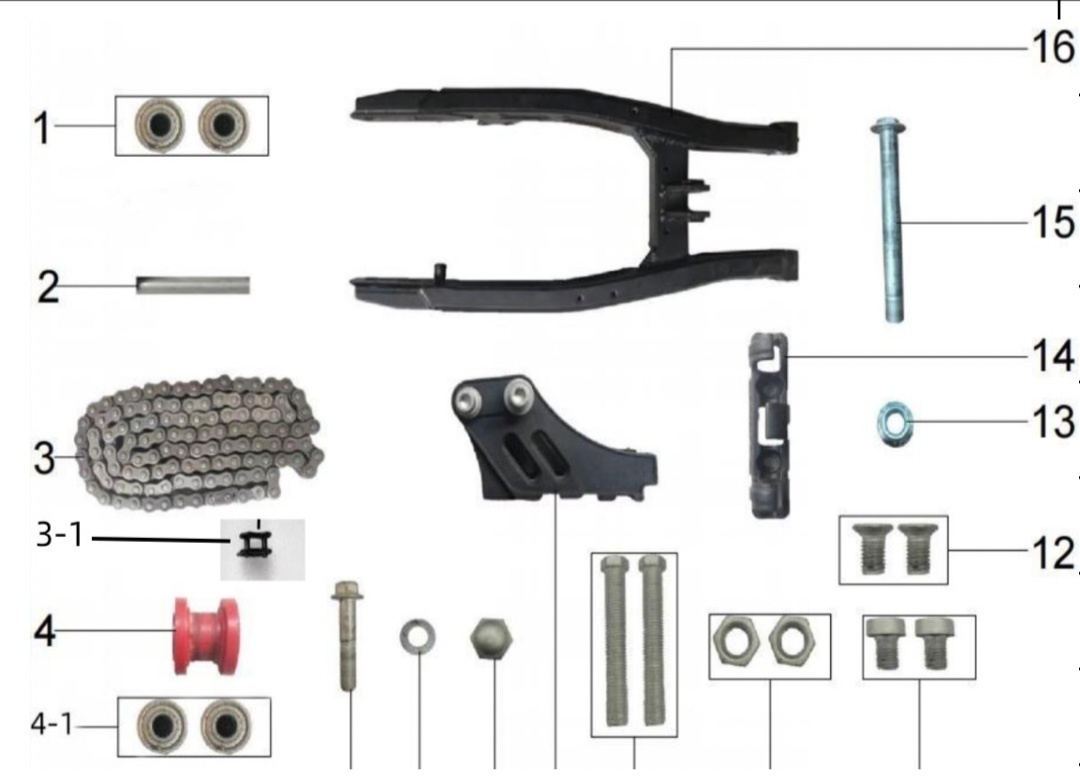

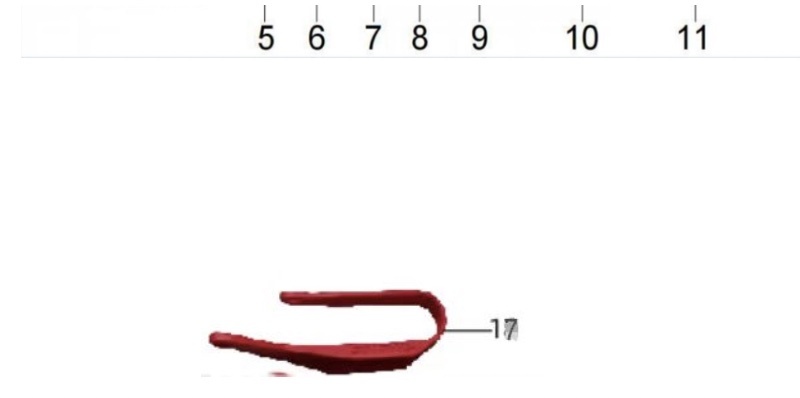

Swingarm

No.   ERP No. Description QTY retail price
1 PAD140-V2/PAD125-V2-F-001 80701-005 Ball bearings 2 $3.40
2 PAD140-V2/PAD125-V2-F-002 45304-001 Flat fork tube 1 $3.43
3 PAD140-V2/PAD125-V2-F-003 30300-111 Chain SF 1 $16.29
3-1 PAD140-V2/PAD125-V2-F-003-1 30301-008 chain joint 1 $1.70
4 PAD140-V2/PAD125-V2-F-004 30304-011-06 Concave guide sprocket 1 $3.40
4-1 PAD140-V2/PAD125-V2-F-004-1 80701-001 Ball bearings 2 $1.70
5 PAD140-V2/PAD125-V2-F-005 80320-015 Outer hexagonal small head flange bolt 1 $1.70
6 PAD140-V2/PAD125-V2-F-006 80201-029 flat liner 1 $1.70
7 PAD140-V2/PAD125-V2-F-007 80309-003 Hexagonal cap nut M8 1 $1.70
8 PAD140-V2/PAD125-V2-F-008 30304-004 chain stopper assembly 1 $11.42
9 PAD140-V2/PAD125-V2-F-009 80319-010 Hexagonal opposite side bolt M8 1 $1.70
10 PAD140-V2/PAD125-V2-F-010 80305-006 Hexagonal opposite side nut M8 1 $1.70
11 PAD140-V2/PAD125-V2-F-011 80314-010 Hex socket cylindrical head screw M6*16 2 $1.70
12 PAD140-V2/PAD125-V2-F-012 80316-005 Hex socket half-round head screws 2 $1.70
13 PAD140-V2/PAD125-V2-F-013 80308-009 Hexagonal flange nylon locking nut M12*1.25 1 $1.70
14 PAD140-V2/PAD125-V2-F-014 32210-002 Rear brake oil pipe seat 1 $1.70
15 PAD140-V2/PAD125-V2-F-015 80101-018 Hexagonal flange shaft 1 $7.10
16 PAD140-V2/PAD125-V2-F-016 45300-076-02 V1 steel flat fork 1 $88.30
17 PAD140-V2/PAD125-V2-F-017 30304-037 Guide chain sleeve/SY style 1 $2.88
