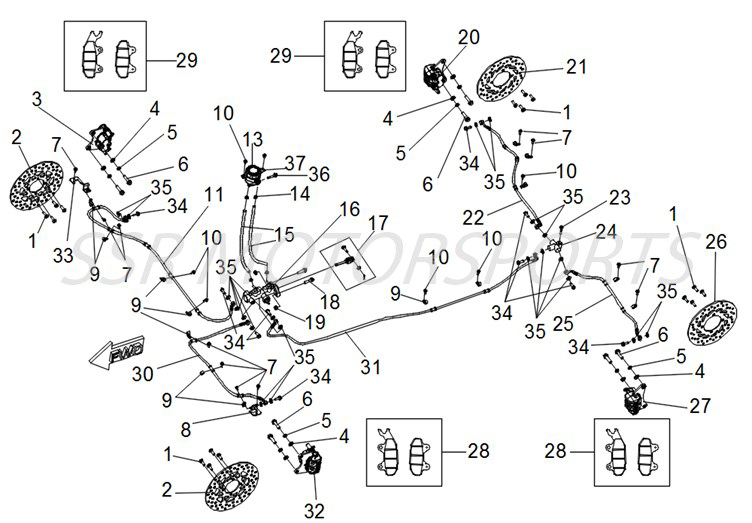

Brake System
| BRAKE SYSTEM | ||||||
 |
||||||
| NO. | PART NUMBER | DESCRIPTION | SPECIFICATION | QTY. | UNIT | RETAIL |
| 1 | 3MU5631Q00 | ROTOR BOLT | M8 | 16 | Pcs. | $4.00 |
| 2 | 3MU5631R00 | FRONT BRAKE ROTOR | 2 | Pcs. | $59.00 | |
| 3 | 3MU5631600 | RIGHT FRONT BRAKE CALIPER | 1 | Pc. | $77.00 | |
| 4 | 9401310000031300 | WASHER | M10 | 8 | Pcs. | $1.50 |
| 5 | 9403110000000000 | LOCK WASHER | M10 | 8 | Pcs. | $1.50 |
| 6 | 9186310025281300 | FLANGE BOLT | M10X1.25X25 | 8 | Pcs. | $2.50 |
| 7 | 9184306012161300 | FLANGE BOLT | M6X12 | 10 | Pcs. | $1.50 |
| 8 | 3MU6041010 | LEFT BRAKE HOSE HOLDER | 1 | Pc. | $5.00 | |
| 9 | 3MU5631F00 | BRAKE HOSE CLAMP 2 | 14 | Pcs. | $4.00 | |
| 10 | 9184306016102300 | CASE FLANGE BOLT | M6X16 | 7 | Pcs. | $1.50 |
| 11 | 3MU5631500 | RIGHT FRONT BRAKE HOSE | 1 | Pc. | $41.00 | |
| 13 | 3MU5631G00 | BRAKE FLUID RESERVOIR | 1 | Pc. | $23.00 | |
| 14 | 9673311500005300 | HOSE CLAMP | 11.5 | 4 | Pcs. | $1.50 |
| 15 | 3MU5631H00 | BRAKE FLUID RESERVOIR HOSE | 2 | Pcs. | $13.00 | |
| 16 | 3MU5631300 | BRAKE MASTER CYLINDER | 1 | Pc. | $96.00 | |
| 17 | 3MU5631J00 | BRAKE CYLINDER PLUNGER | 1 | Pc. | $8.00 | |
| 18 | 9184308030261300 | FLANGE BOLT | M8X30 | 2 | Pcs. | $1.50 |
| 19 | 9330308013241300 | FLANGE LOCKNUT | M8 | 2 | Pcs. | $2.00 |
| 20 | 3MU5631D00 | RIGHT REAR BRAKE CALIPER | 1 | Pc. | $77.00 | |
| 21 | 3MU5631K00 | RIGHT REAR BRAKE ROTOR | 1 | Pc. | $59.00 | |
| 22 | 3MU5631A00 | RIGHT REAR BRAKE HOSE | 1 | Pc. | $27.00 | |
| 23 | 9184308032261300 | FLANGE BOLT | M8X32 | 1 | Pc. | $1.50 |
| 24 | 3MU5631900 | BRAKE HOSE T FITTING | 1 | Pc. | $14.00 | |
| 25 | 3MU5631800 | LEFT REAR BRAKE HOSE | 1 | Pc. | $18.00 | |
| 26 | 3MU5631L00 | LEFT REAR BRAKE ROTOR | 1 | Pc. | $59.00 | |
| 27 | 3MU5631700 | LEFT REAR BRAKE CALIPER | 1 | Pc. | $77.00 | |
| 28 | 3MU5631N00 | LEFT FRONT/REAR BRAKE PAD SET | 2 | Set | $24.00 | |
| 29 | 3MU5631M00 | RIGHT FRONT/REAR BRAKE PAD SET | 2 | Set | $24.00 | |
| 30 | 3MU5631200 | LEFT FRONT BRAKE HOSE | 810MM | 1 | Pc. | $39.00 |
| 31 | 3MU5631400 | FRONT TO REAR BRAKE HOSE | 1 | Pc. | $42.00 | |
| 32 | 3MU5631100 | LEFT FRONT BRAKE CALIPER | 1 | Pc. | $77.00 | |
| 33 | 3MU6042010 | RIGHT BRAKE HOSE HOLDER | 1 | Pc. | $5.00 | |
| 34 | 3MU5631S00 | BANJO BOLT | 10 | Pcs. | $4.00 | |
| 35 | 3MU5631T00 | SEALING WASHER | 20 | Pcs. | $3.50 | |
| 36 | 9218460300160000 | CASE FLANGE BOLT | M6X30 | 1 | Pc. | $1.50 |
| 37 | 3MUX5631G10 | BRAKE FLUID RESERVOIR HOLDER | 1 | Pc. | $10.00 | |
| 38 | 1MU563250001 | BRAKE LIGHT SWITCH | NOT PICTURED | 1 | Pc. | $42.00 |
