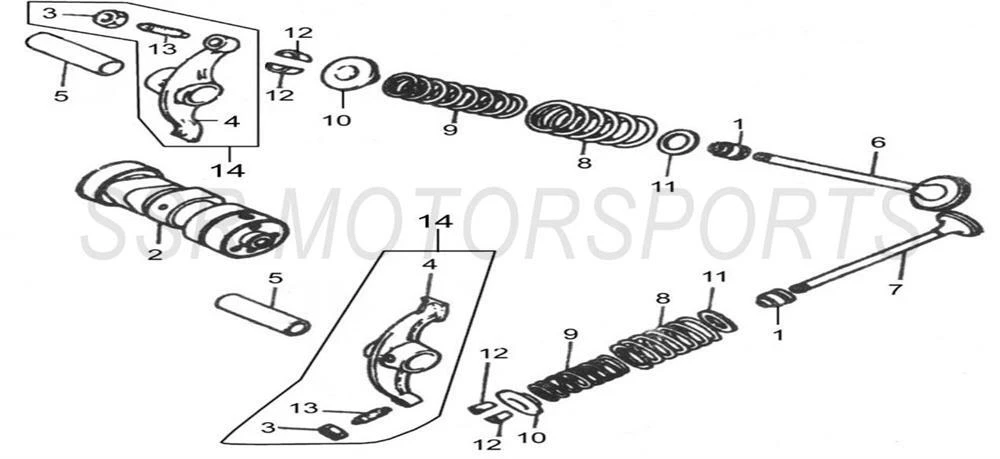

Camshaft and Valves
| NO. | PART NUMBER | DESCRIPTION | SPECIFICATION | QTY. | UNIT | RETAIL |
| 1 | A02858-09-00 | VALVE STEM SEAL | 2 | Pcs. | $2.50 | |
| 2 | A02859-09-00 | CAMSHAFT | 1 | Pc. | $63.00 | |
| 3 | A02860-09-00 | TAPPET ADJUSTER NUT | 2 | Pcs. | $2.00 | |
| 4 | A02861-09-00 | ROCKER ARM | 2 | Pcs. | $18.00 | |
| 5 | A02862-09-00 | ROCKER ARM SHAFT | 2 | Pcs. | $6.00 | |
| 6 | A02863-09-00 | INTAKE VALVE | 1 | Pc. | $13.00 | |
| 7 | A02864-09-00 | EXHAUST VALVE | 1 | Pc. | $13.00 | |
| 8 | A02865-09-00 | OUTER VALVE SPRING | 2 | Pcs. | $6.00 | |
| 9 | A02866-09-00 | INNER VALVE SPRING | 2 | Pcs. | $6.00 | |
| 10 | A02867-09-00 | UPPER VALVE SPRING RETAINER | 2 | Pcs. | $7.00 | |
| 11 | A02868-09-00 | LOWER VALVE SPRING RETAINER | 2 | Pcs. | $7.00 | |
| 12 | A02869-09-00 | COLLET | 4 | Pcs. | $2.00 | |
| 13 | A02870-09-00 | VALVE ADJUSTING SCREW | 2 | Pcs. | $2.00 | |
| 14 | A02871-09-00 | ROCKER ARM ASSY | 2 | Assy. | $21.00 |
