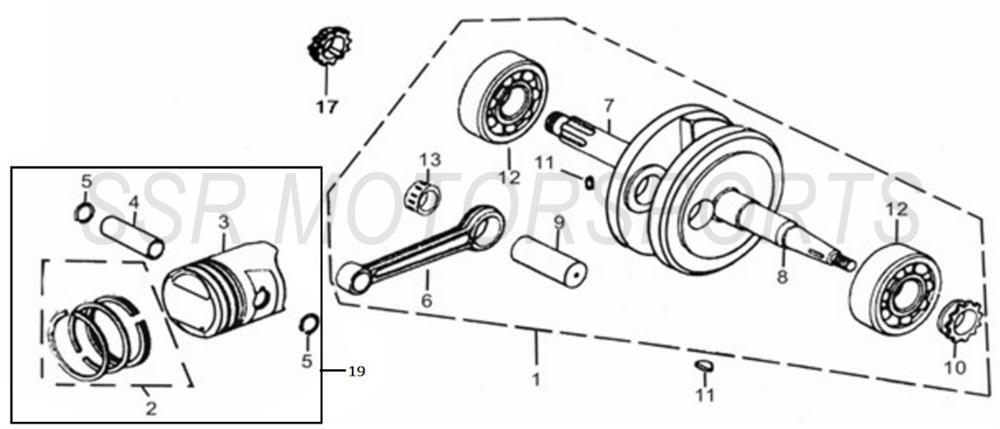

Crankshaft and Piston
| NO. | PART NUMBER | DESCRIPTION | SPECIFICATION | QTY. | UNIT | RETAIL |
| 1 | A01103-09-00 | CRANKSHAFT ASSY | 1 | Assy. | $115.00 | |
| 2 | A01104-09-00 | PISTON RING SET | 1 | Set | $42.00 | |
| 3 | A01105-09-00 | PISTON | 1 | Pc. | $42.00 | |
| 4 | A01106-09-00 | PISTON PIN | 1 | Pc. | $6.00 | |
| 5 | A01107-09-00 | PISTON PIN CIRCLIP | 2 | Pcs. | $1.50 | |
| 6 | A01108-09-00 | CONNECTING ROD | 1 | Pc. | $10.00 | |
| 7 | A01109-09-00 | RIGHT CRANKSHAFT HALF | 1 | Pc. | $51.00 | |
| 8 | A01110-09-00 | LEFT CRANKSHAFT HALF | 1 | Pc. | $51.00 | |
| 9 | A01111-09-00 | CRANKSHAFT PIN | 1 | Pc. | $6.00 | |
| 10 | A01112-09-00 | TIMING SPROCKET | 16T | 1 | Pc. | $8.00 |
| 11 | A01113-09-00 | WOODRUFF KEY | 4X14X4 | 2 | Pcs. | $1.50 |
| 12 | A00001-28-00 | BEARING | 6304 | 2 | Pcs. | $11.00 |
| 13 | A01114-09-00 | BEARING | 1 | Pc. | $8.00 | |
| 17 | A01268-09-00 | OIL PUMP DRIVE GEAR | 1 | Pc. | $10.00 | |
| 19 | A02521-09-00 | PISTON KIT | 1 | Kit | $79.00 |
