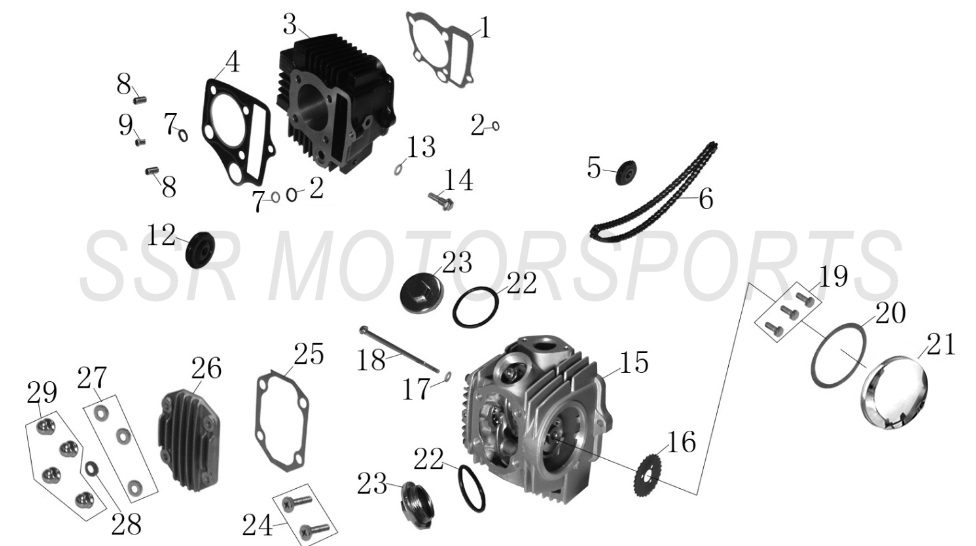

Cylinder Head & Cylinder (Semi)
Click parts on table to add
| # | Part # | Description | Price | Qty |
|---|---|---|---|---|
| 1 | A00289-13-00 | CYLINDER BASE GASKET | $12.30 | 1 |
| 2 | A00008-27-00 | O-RING 14.5X18.5X2.4 | $2.00 | 1 |
| 3 | A01253-09-00 | CYLINDER | $117.30 | 1 |
| 4 | A00113-13-00 | CYLINDER HEAD GASKET BANGEN | $12.30 | 1 |
| 5 | A01257-09-00 | CAM CHAIN TENSIONER ROLLER RUBBER | $10.50 | 1 |
| 6 | A01255-09-00 | TIMING CHAIN 84L | $35.00 | 1 |
| 7 | A00042-27-00 | O-RING 9X1.6 | $2.00 | 2 |
| 8 | A00001-23-00 | DOWEL PIN M8X14 | $2.00 | 2 |
| 9 | A00118-23-00 | SPECIAL PIN 8X11 | $2.60 | 1 |
| 12 | A01300-09-00 | CHAIN ROLLER RUBBER | $15.80 | 1 |
| 13 | A00094-21-01 | WASHER M8X14X2 | $2.00 | 1 |
| 14 | A01303-09-00 | ROLLER GUIDE BOLT | $2.00 | 1 |
| 15 | A01180-09-00 | CYLINDER HEAD ASSY W/ VALVES | $154.00 | 1 |
| 16 | A01329-09-00 | CAMSHAFT SPROCKET 28T | $24.50 | 1 |
| 17 | A01177-09-00 | ALUMINUM WASHER M6 | $2.00 | 1 |
| 18 | A00439-19-07 | TIMING COVER FLANGE BOLT M6x110 | $2.60 | 1 |
| 19 | A00025-19-03 | HEX BOLT M5X12 | $2.00 | 3 |
| 20 | A00112-13-00 | LEFT CYLINDER HEAD COVER GASKET | $8.80 | 1 |
| 21 | A01173-09-00 | LEFT CYLINDER HEAD COVER CHROME | $21.00 | 1 |
| 22 | A00004-27-00 | O-RING 30.8X3.2 | $3.50 | 2 |
| 23 | A01174-09-00 | TAPPET COVER CHROME | $8.80 | 2 |
| 24 | A00002-19-03 | BOLT M6X23 - HEX / PHILLIPS | $2.00 | 2 |
| 25 | A00110-13-00 | CYLINDER HEAD COVER GASKET | $8.80 | 1 |
| 26 | A01171-09-00 | CYLINDER HEAD COVER | $24.50 | 1 |
| 27 | A00008-21-01 | WASHER M7 | $2.00 | 3 |
| 28 | A00269-21-01 | COPPER WASHER M7 | $2.00 | 1 |
| 29 | A00328-22-36 | FLANGE CAP NUT M7 | $2.00 | 4 |
| 30 | A00293-14-00 | INTAKE MANIFOLD YX-02 | $42.00 | 1 |
| 31 | A00292-14-00 | INTAKE MANIFOLD GASKET | $4.40 | 1 |
| 32 | A00272-13-00 | INTAKE INSULATOR M4.7 | $6.10 | 1 |
| 33 | A00274-13-00 | CARBURETOR GASKET | $4.40 | 1 |
