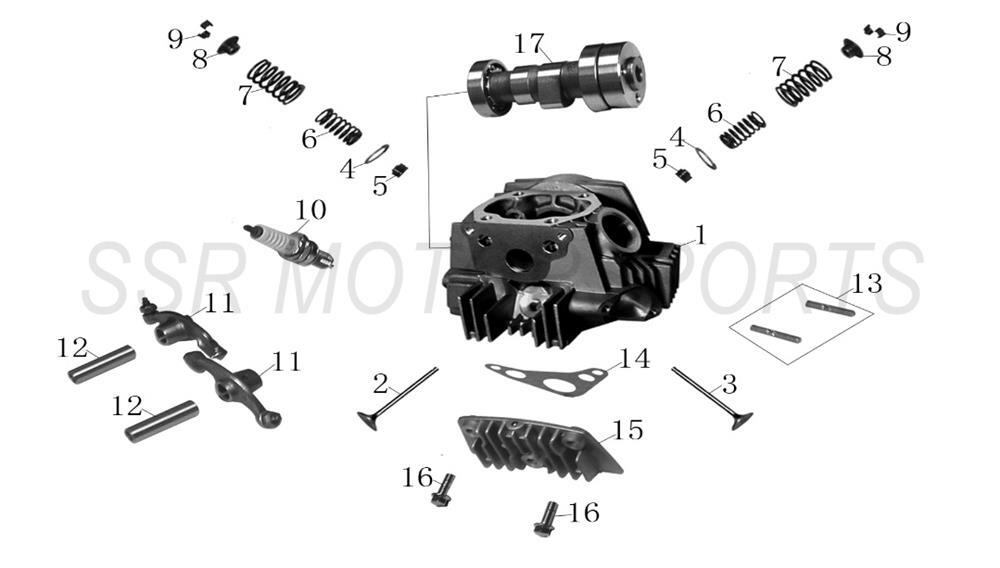

Cylinder Head & Valves (Semi)
Click parts on table to add
| # | Part # | Description | Price | Qty |
|---|---|---|---|---|
| 1 | A01180-09-00 | CYLINDER HEAD ASSY W/ VALVES | $154.00 | 1 |
| 2 | A02863-09-00 | INTAKE VALVE | $14.00 | 1 |
| 3 | A02864-09-00 | EXHAUST VALVE | $14.00 | 1 |
| 4 | A02868-09-00 | LOWER VALVE SPRING RETAINER YX | $8.00 | 2 |
| 5 | A02858-09-00 | VALVE STEM SEAL | $2.60 | 2 |
| 6 | A02866-09-00 | INNER VALVE SPRING YX | $6.10 | 2 |
| 7 | A02865-09-00 | OUTER VALVE SPRING YX | $6.10 | 2 |
| 8 | A02867-09-00 | UPPER VALVE SPRING RETAINER YX | $8.00 | 4 |
| 9 | A02869-09-00 | COLLET YX | $2.50 | 4 |
| 10 | D8EA | SPARK PLUG D8EA | $10.50 | 1 |
| 11 | A02861-09-00 | ROCKER ARM YX | $19.30 | 2 |
| 12 | A02862-09-00 | ROCKER ARM SHAFT YX | $6.10 | 2 |
| 13 | A00001-19-04 | STUD M6X32 | $2.00 | 2 |
| 14 | A00128-13-00 | SUPERSEDED TO : A00233-13-00 | $8.80 | 1 |
| 15 | A01172-09-00 | RIGHT CYLINDER HEAD COVER | $21.00 | 1 |
| 16 | A00419-19-08 | CASE FLANGE BOLT M6X20 | $2.00 | 2 |
| 17 | A02859-09-00 | CAMSHAFT YX | $75.30 | 1 |
