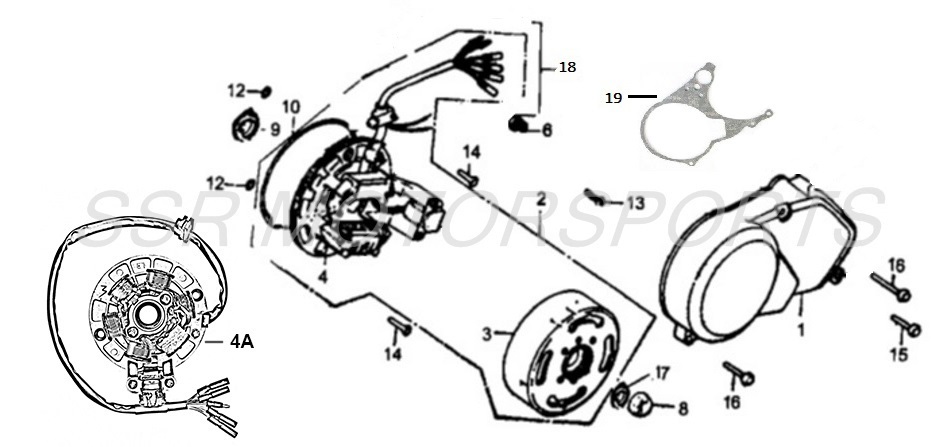

Left Crankcase Cover and Magneto
Click parts on table to add
| # | Part # | Description | Price | Qty |
|---|---|---|---|---|
| 1 | A02760-09-00 | STATOR COVER | $66.50 | 1 |
| 2 | A02712-09-00 | STATOR W/ FLYWHEEL ASSY BANGEN | $161.00 | 1 |
| 2 | A02922-09-00 | STATOR W/ FLYWHEEL ASSY YX 5 POLE | $161.00 | 1 |
| 3 | A02770-09-00 | FLYWHEEL BANGEN | $75.30 | 1 |
| 3 | A02921-09-00 | FLYWHEEL YX 5 POLE STATOR | $75.30 | 1 |
| 4 | A02711-09-00 | STATOR PLATE ASSY BANGEN | $101.50 | 1 |
| 4A | A02910-09-00 | STATOR PLATE ASSY (YX) 5 POLE | $101.50 | 1 |
| 6 | A02920-09-00 | RUBBER PLUG | $4.40 | 1 |
| 8 | A00005-22-08 | SPECIAL NUT M10X1.25 TALL FLANGE | $2.00 | 1 |
| 9 | A00003-26-00 | OIL SEAL 18.9X30X5 | $4.40 | 1 |
| 10 | A00010-27-00 | O-RING 107X2 | $8.80 | 1 |
| 12 | A00012-27-00 | O-RING 6.5X1.9 | $2.00 | 2 |
| 13 | A00008-19-03 | FLANGE BOLT M6X12 | $2.00 | 1 |
| 14 | A00006-20-12 | CS SCREW M6X12 | $2.00 | 2 |
| 15 | A00422-19-08 | CASE FLANGE BOLT M6X28 | $2.00 | 1 |
| 16 | A00425-19-08 | CASE FLANGE BOLT M6X35 | $2.00 | 2 |
| 17 | A00002-21-01 | WASHER M10 | $2.00 | 1 |
| 18 | A01338-09-00 | STATOR W/ FLYWHEEL ASSY + SEALS YX 5 POLE | $169.80 | 1 |
| 18 | A02923-09-00 | STATOR W/ FLYWHEEL ASSY + SEALS BANGEN | $169.80 | 1 |
| 19 | A00258-13-00 | STATOR COVER GASKET | $10.50 | 1 |
