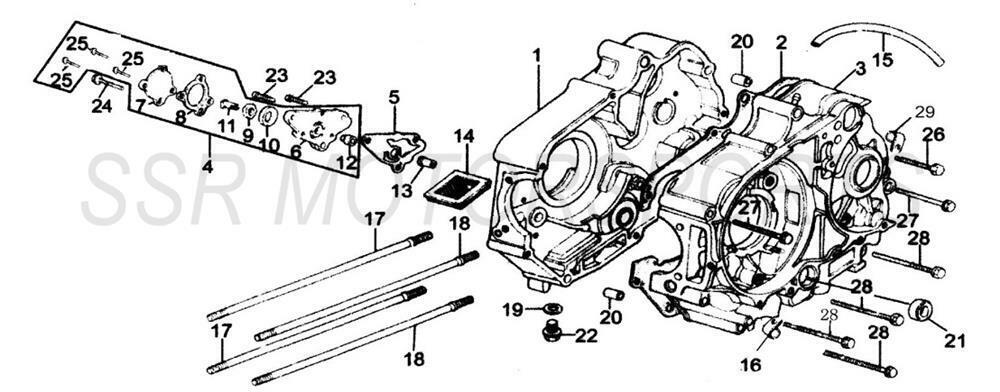

Crankcase and Oil Pump
| NO. | PART NUMBER | DESCRIPTION | SPECIFICATION | QTY. | UNIT | RETAIL |
| 1 | A02767-09-00 | RIGHT CRANKCASE HALF | 1 | Pc. | $85.00 | |
| 2 | A00122-13-00 | CENTER CASE GASKET | 1 | Pc. | $14.00 | |
| 3 | A02769-09-00 | LEFT CRANKCASE HALF | 1 | Pc. | $90.00 | |
| 4 | A01221-09-00 | OIL PUMP ASSY | 1 | Assy. | $42.00 | |
| 5 | A00123-13-00 | OIL PUMP GASKET | 1 | Pc. | $6.00 | |
| 6 | A01222-09-00 | OIL PUMP BODY | 1 | Pc. | $18.00 | |
| 7 | A01225-09-00 | OIL PUMP COVER | 1 | Pc. | $8.00 | |
| 8 | A00124-13-00 | OIL PUMP COVER GASKET | 1 | Pc. | $4.00 | |
| 9 | A01226-09-00 | OIL PUMP INNER ROTOR | 1 | Pc. | $8.00 | |
| 10 | A01227-09-00 | OIL PUMP OUTER ROTOR | 1 | Pc. | $8.00 | |
| 11 | A01228-09-00 | OIL PUMP SHAFT | 1 | Pc. | $8.00 | |
| 12 | A01229-09-00 | OIL PUMP SHAFT BUSHING | 1 | Pc. | $2.00 | |
| 13 | A01230-09-00 | SPROCKET SLEEVE | 1 | Pc. | $2.00 | |
| 14 | A01098-09-00 | OIL SCREEN | 1 | Pc. | $10.00 | |
| 15 | A02356-09-00 | CRANKCASE VENT HOSE | 1 | Pc. | $10.00 | |
| 16 | A01100-09-00 | PIPE CLAMP | 1 | Pc. | $1.50 | |
| 17 | A00491-19-04 | CYLINDER STUD A | M6X202MM | 2 | Pcs. | $8.00 |
| 18 | A00128-19-04 | CYLINDER STUD B | M6X196MM | 2 | Pcs. | $8.00 |
| 19 | A00012-21-04 | CRUSH WASHER | 12X20X1.5 | 1 | Pc. | $1.50 |
| 20 | A00002-23-00 | DOWEL PIN | 10X14 | 2 | Pcs. | $1.50 |
| 21 | A00002-26-00 | OIL SEAL | 11.6X24X10 | 1 | Pc. | $4.00 |
| 22 | A01102-09-00 | OIL DRAIN BOLT | 1 | Pc. | $4.00 | |
| 23 | A00001-19-03 | BOLT | M6X16 | 2 | Pcs. | $1.50 |
| 24 | A00024-19-01 | FLANGE BOLT | M6X22 | 1 | Pc. | $1.50 |
| 25 | A00037-19-01 | FLANGE BOLT | M5X10 | 3 | Pcs. | $1.50 |
| 26 | A00428-19-08 | CASE FLANGE BOLT | M6X50 | 1 | Pc. | $1.50 |
| 27 | A00429-19-08 | CASE FLANGE BOLT | M6X60 | 2 | Pcs. | $2.00 |
| 28 | A00430-19-08 | CASE FLANGE BOLT | M6X65 | 4 | Pcs. | $2.00 |
| 29 | A02576-09-00 | VENT HOSE CLAMP | 1 | Pc. | $1.50 |
