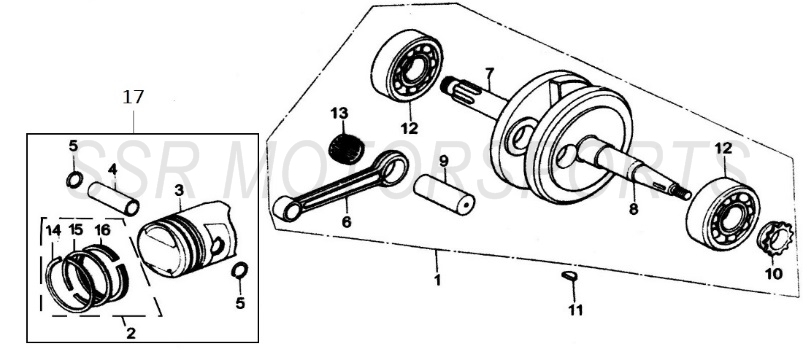

Crankshaft and Piston
| NO. | PART NUMBER | DESCRIPTION | SPECIFICATION | QTY. | UNIT | RETAIL |
| 1 | A02774-09-00 | CRANKSHAFT ASSY | 1 | Assy. | $98.00 | |
| 2 | A02792-09-00 | PISTON RING SET | 1 | Set | $32.00 | |
| 3 | A02776-09-00 | PISTON | 1 | Pc. | $32.00 | |
| 4 | A02777-09-00 | PISTON PIN | 1 | Pc. | $6.00 | |
| 5 | A02778-09-00 | PISTON PIN CIRCLIP | 2 | Pcs. | $1.50 | |
| 6 | A02779-09-00 | CONNECTING ROD | 1 | Pc. | $10.00 | |
| 7 | A02780-09-00 | RIGHT CRANKSHAFT HALF | 1 | Pc. | $33.00 | |
| 8 | A02781-09-00 | LEFT CRANKSHAFT HALF | 1 | Pc. | $33.00 | |
| 9 | A02782-09-00 | CRANKSHAFT PIN | 1 | Pc. | $6.00 | |
| 10 | A02783-09-00 | CAM CHAIN SPROCKET | 1 | Pc. | $8.00 | |
| 11 | A01113-09-00 | WOODRUFF KEY | 2 | Pc. | $1.50 | |
| 12 | A02785-09-00 | BEARING | 6304 | 2 | Pcs. | $11.00 |
| 13 | A02786-09-00 | BEARING | 1 | Pc. | $8.00 | |
| 14 | A02787-09-00 | UPPER PISTON RING | NO. 1 | 1 | Pc. | $11.00 |
| 15 | A02788-09-00 | MIDDLE PISTON RING | NO. 2 | 1 | Pc. | $11.00 |
| 16 | A02789-09-00 | 3-PIECE OIL CONTROL RING SET | NO. 3 | 1 | Set | $11.00 |
| 17 | A02790-09-00 | PISTON KIT | 2,3,4,5 | 1 | Kit | $63.00 |
