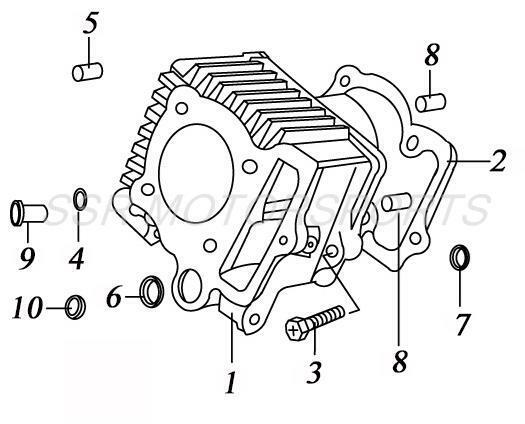

Cylinder
| NO. | PART NUMBER | DESCRIPTION | SPECIFICATION | QTY. | UNIT | RETAIL |
| 1 | A02325-09-00 | CYLINDER | 1 | Pc. | $98.00 | |
| 2 | A00259-13-00 | CYLINDER BASE GASKET | 1 | Pc. | $11.00 | |
| 3 | A00002-19-03 | BOLT | M6X23 | 1 | Pc. | $1.50 |
| 4 | A00042-27-00 | O-RING | 9X1.6 | 1 | Pc. | $1.50 |
| 5 | A00001-23-00 | DOWEL PIN | M8X14 | 2 | Pcs. | $1.50 |
| 6 | A00008-27-00 | O-RING | 14.5X2.5 | 1 | Pc. | $1.50 |
| 7 | A00009-27-00 | O-RING | 11.5X2.6 | 1 | Pc. | $1.50 |
| 8 | A00003-23-00 | DOWEL PIN | M8X12 | 2 | Pcs. | $1.50 |
| 9 | A00118-23-00 | SPECIAL PIN | 8X11 | 1 | Pc. | $2.50 |
| 10 | A00000-21-01 | WASHER | 11.5X15X1.5 | 1 | Pc. | $1.50 |
