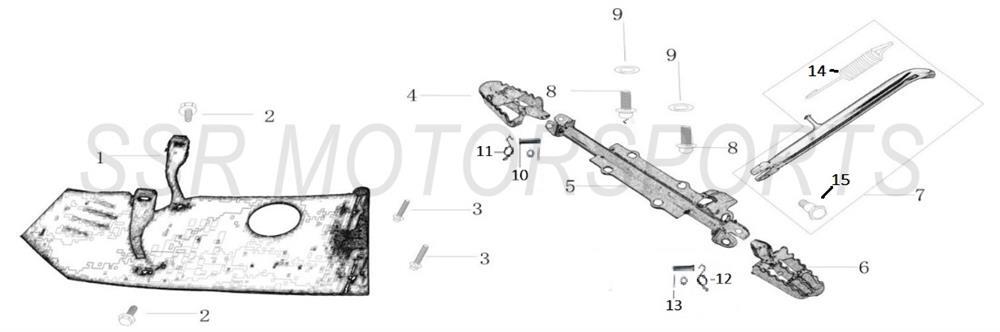

NO. | PART NUMBER | DESCRIPTION | SPECIFICATION | QTY. | UNIT | RETAIL |
1 | A00372-11-00 | SKID PLATE | STEEL | 1 | Pc. | $42.00 |
1 | A00425-11-00 | SKID PLATE | ALUMINUM (SR110DX) | 1 | Pc. | $63.00 |
2 | A00418-19-08 | CASE FLANGE BOLT | M6X16 S10 | 2 | Pcs. | $1.50 |
3 | A00426-19-08 | CASE FLANGE BOLT | GB5787-86 M8X40 | 2 | Pcs. | $1.50 |
4 | A00324-05-00 | RIGHT FOOTPEG | 1 | Pc. | $18.00 | |
5 | A00325-05-00 | FOOTPEG BRACKET | 1 | Pc. | $27.00 | |
6 | A00326-05-00 | LEFT FOOTPEG | 1 | Pc. | $18.00 | |
7 | A00507-05-00 | SIDE STAND ASSY | L=265 | 1 | Assy. | $27.00 |
8 | A00015-19-01 | FLANGE BOLT | GB5789-86 M8X20 S12 | 4 | Pcs. | $1.50 |
9 | A00004-21-01 | WASHER | 4 | Pcs. | $1.50 | |
10 | A00336-05-00 | FOOTPEG PIVOT PIN | 2 | Pcs. | $1.50 | |
11 | A00505-05-00 | RIGHT FOOTPEG SPRING | 1 | Pc. | $1.50 | |
12 | A00506-05-00 | LEFT FOOTPEG SPRING | 1 | Pc. | $1.50 | |
13 | A00019-28-01 | COTTER PIN | 2.5X24 | 2 | Pcs. | $1.50 |
14 | A00455-05-00 | SIDE STAND SPRING | 1 | Pc. | $2.50 | |
15 | A00456-19-07 | SIDE STAND BOLT | M10X26 | 1 | Pc. | $1.50 |
