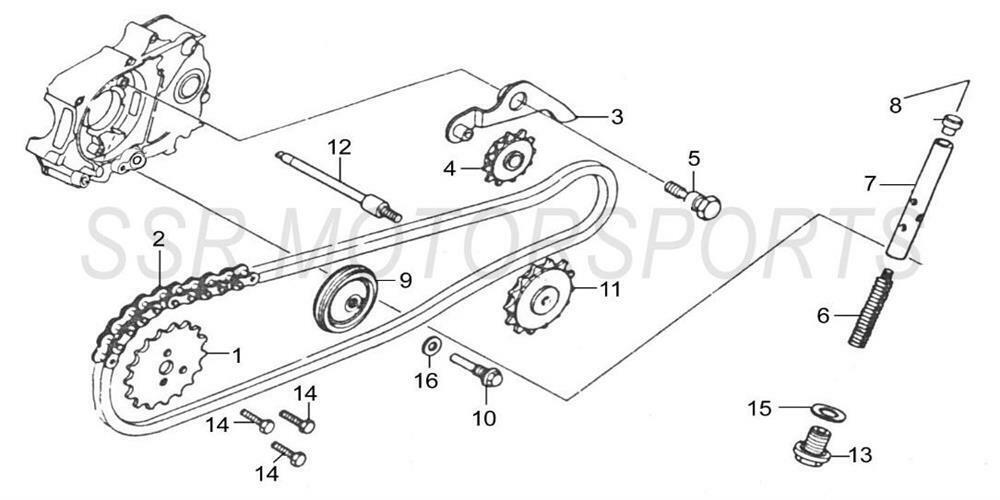

Timing Chain and Tensioner
| NO. | PART NUMBER | DESCRIPTION | SPECIFICATION | QTY. | UNIT | RETAIL |
| 1 | A01329-09-00 | CAMSHAFT SPROCKET | 28T | 1 | Pc. | $21.00 |
| 2 | A02442-09-00 | TIMING CHAIN | 82 | 1 | Pc. | $18.00 |
| 3 | A02444-09-00 | CAM CHAIN TENSIONER ARM | 1 | Pc. | $8.00 | |
| 4 | A01257-09-00 | TENSIONER SPROCKET | RUBBER | 1 | Pc. | $10.00 |
| 5 | A01321-09-00 | CHAIN TENSIONER ARM BOLT | 1 | Pc. | $2.00 | |
| 6 | A01322-09-00 | TENSIONER SPRING | 1 | Pc. | $2.50 | |
| 7 | A01323-09-00 | TENSIONER ROD | 1 | Pc. | $7.00 | |
| 8 | A01299-09-00 | TENSIONING ROD HEAD | 1 | Pc. | $2.50 | |
| 9 | A01300-09-00 | CHAIN ROLLER | RUBBER | 1 | Pc. | $14.00 |
| 10 | A01303-09-00 | ROLLER GUIDE BOLT | 1 | Pc. | $1.50 | |
| 11 | A01304-09-00 | GUIDE SPROCKET | RUBBER | 1 | Pc. | $10.00 |
| 12 | A01305-09-00 | OIL PUMP SHAFT | 1 | Pc. | $6.00 | |
| 13 | A02455-09-00 | TENSIONER BOLT | M14X1.5 | 1 | Pc. | $2.50 |
| 14 | A00025-19-03 | BOLT | M5X12 | 3 | Pcs. | $1.50 |
| 15 | A01307-09-00 | TENSIONER SEAL | 1 | Pc. | $1.50 | |
| 16 | A00094-21-01 | WASHER | 8X14X1.5 | 1 | Pc. | $1.50 |
