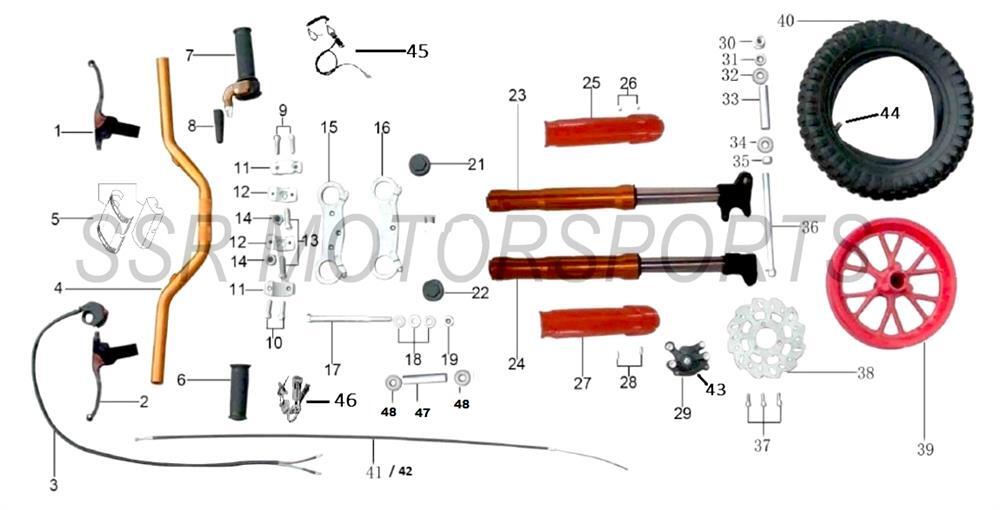

Front Components
Click parts on table to add
| # | Part # | Description | Price | Qty |
|---|---|---|---|---|
| 1 | A00268-05-00 | FRONT BRAKE LEVER W/ PERCH | $18.00 | 1 |
| 2 | A00269-05-00 | REAR BRAKE LEVER W/ PERCH | $18.00 | 1 |
| 3 | A00406-08-00 | STOP SWITCH | $18.00 | 1 |
| 4 | A00270-05-00 | HANDLEBAR | $21.00 | 1 |
| 5 | A00271-05-00 | CROSSBAR PAD W/ COVER | $14.00 | 1 |
| 6 | A00272-05-00 | LEFT GRIP | $10.00 | 1 |
| 7 | A00273-05-00 | THROTTLE ASSY | $18.00 | 1 |
| 8 | A00274-05-00 | THROTTLE CABLE COVER | $10.00 | 1 |
| 10 | A00152-19-02 | ALLEN BOLT M8X25 | $1.50 | 2 |
| 11 | A00129-15-00 | UPPER HANDLEBAR CLAMP | $10.00 | 2 |
| 12 | A00130-15-00 | LOWER HANDLEBAR CLAMP | $10.00 | 2 |
| 13 | A00154-19-02 | BOLT M10x35 | $1.50 | 2 |
| 14 | A00035-22-04 | FLANGE NUT M10 | $1.50 | 2 |
| 15 | A00132-15-00 | LOWER TRIPLE CLAMP | $21.00 | 1 |
| 16 | A00131-15-00 | UPPER TRIPLE CLAMP | $21.00 | 1 |
| 17 | A00133-15-00 | STEERING STEM BOLT M10X150 | $18.00 | 1 |
| 18 | A00134-15-00 | WASHER SET | $2.50 | 1 |
| 19 | A00135-15-00 | FLANGE LOCKNUT M10 | $3.50 | 1 |
| 22 | A00200-16-00 | FORK CAP | $10.00 | 1 |
| 23 | A00202-16-00 | LEFT FORK ASSY | $42.00 | 1 |
| 24 | A00203-16-00 | RIGHT FORK ASSY | $42.00 | 1 |
| 25 | A00675-02-01 | LEFT FORK PROTECTOR WHITE | $11.00 | 1 |
| 27 | A00676-02-01 | RIGHT FORK PROTECTOR WHITE | $11.00 | 1 |
| 28 | A00044-20-01 | SCREW M5x12 | $1.50 | 1 |
| 29 | A00630-04-00 | FRONT BRAKE CALIPER | $27.00 | 1 |
| 30 | A00036-22-03 | NUT | $1.50 | 1 |
| 31 | A00269-18-00 | AXLE SPACER | $2.50 | 1 |
| 33 | A00221-18-00 | SPACER | $2.50 | 1 |
| 34 | A00115-28-00 | WHEEL BEARING 6001RS | $6.10 | 1 |
| 35 | A00222-18-00 | SPACER | $2.50 | 1 |
| 36 | A00531-18-00 | FRONT WHEEL AXLE M12X165 | $7.00 | 1 |
| 37 | A00155-19-02 | SCREW | $1.50 | 3 |
| 38 | A00408-04-00 | FRONT BRAKE ROTOR | $18.00 | 1 |
| 39 | A00563-18-00 | FRONT WHEEL 1.75-10 | $42.00 | 1 |
| 40 | A00322-18-00 | TIRE 2.50-10 | $29.80 | 1 |
| 41 | A00275-05-00 | FRONT BRAKE CABLE | $11.00 | 1 |
| 42 | A00276-05-00 | REAR BRAKE CABLE | $18.00 | 1 |
| 43 | A00409-04-00 | BRAKE PAD SET | $18.00 | 1 |
| 44 | A00219-18-00 | INNER TUBE | $15.80 | 1 |
| 45 | A00474-08-00 | KILL SWITCH | $19.30 | 1 |
| 46 | A00419-08-00 | IGNITION SWITCH | $18.00 | 1 |
| 47 | A00356-15-00 | STEERING STEM SPACER | $11.00 | 1 |
| 48 | A00164-28-00 | STEERING STEM BEARING | $11.00 | 2 |
