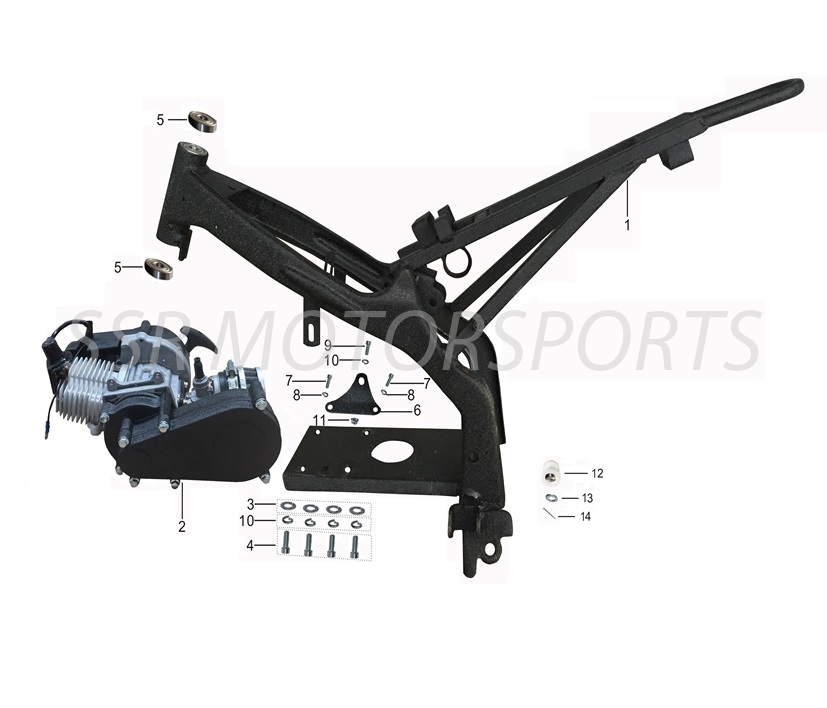

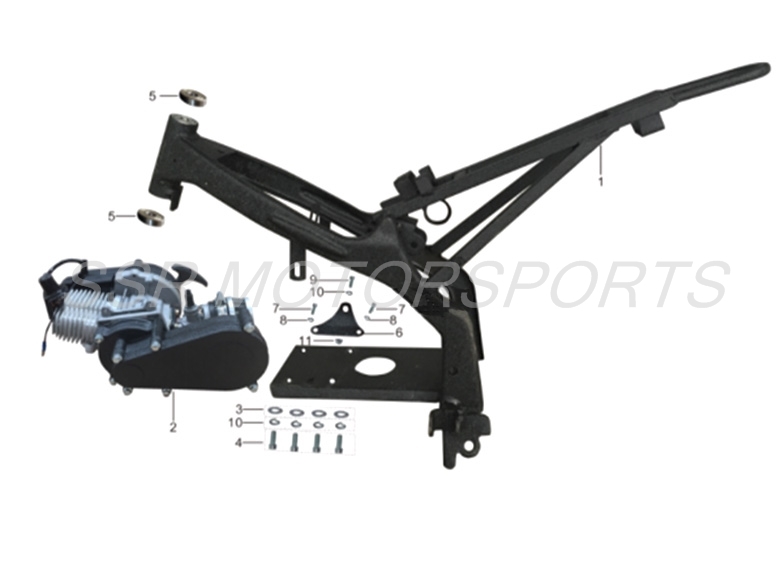

Frame/Engine
Click parts on table to add
| # | Part # | Description | Price | Qty |
|---|---|---|---|---|
| 1 | A00536-11-00 | FRAME | $85.00 | 1 |
| 2 | A02496-09-00 | ENGINE ASSY | $125.00 | 1 |
| 3 | A00104-21-01 | WASHER 6X18X1.5 | $2.00 | 4 |
| 4 | A00011-19-02 | ALLEN BOLT M6X16 | $2.00 | 4 |
| 5 | A00011-28-00 | BEARING 6200Z/Z | $8.80 | 2 |
| 6 | A00537-11-00 | ENGINE MOUNTING BRACKET | $8.00 | 1 |
| 7 | A00025-19-02 | ALLEN BOLT M5x12 | $2.00 | 2 |
| 8 | A00259-21-01 | LOCK WASHER M5 | $1.50 | 2 |
| 9 | A00406-19-09 | PAN HEAD ALLEN BOLT M6X20 | $2.00 | 1 |
| 10 | A00254-21-01 | LOCK WASHER M6 | $2.00 | 4 |
| 11 | A00332-22-00 | FLANGE LOCK NUT M6 | $1.50 | 1 |
