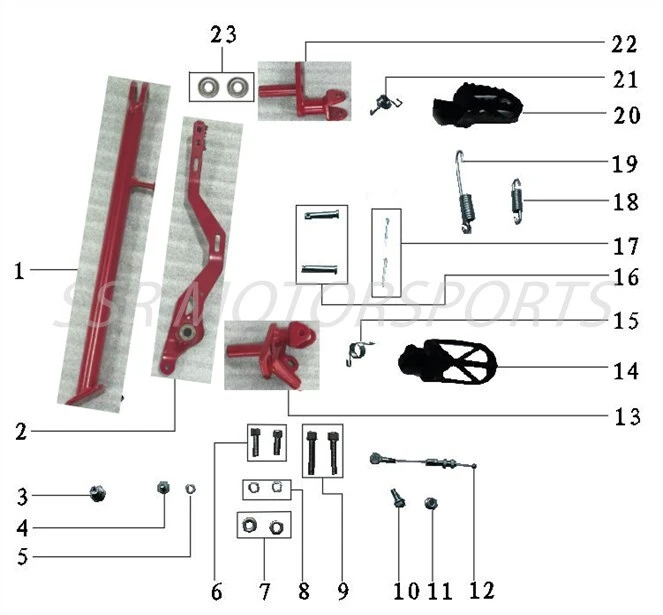

Rear Brake Pedal, Side Stand & Footpegs
Click parts on table to add
| # | Part # | Description | Price | Qty |
|---|---|---|---|---|
| 1 | A00660-11-00 | SIDE STAND L=280 (SR125R) | $26.30 | 1 |
| 1B | A00661-11-00 | SIDE STAND L=360 (SR125RB) | $26.30 | 1 |
| 2 | A00636-05-00 | REAR BRAKE PEDAL RED | $31.50 | 1 |
| 3 | A00001-19-31 | FLANGE STEP BOLT M10X22 | $2.50 | 1 |
| 4 | A00008-19-03 | FLANGE BOLT M6X12 | $2.00 | 1 |
| 5 | A00002-21-02 | LOCK WASHER M6 | $2.00 | 1 |
| 6 | A00015-19-01 | FLANGE BOLT M8X20 | $2.00 | 2 |
| 7 | A00013-21-01 | WASHER 8X16X1.5 | $2.00 | 2 |
| 8 | A00001-21-02 | LOCK WASHER 8X13X2 | $2.00 | 2 |
| 9 | A00014-19-01 | FLANGE BOLT M8X40 | $2.50 | 2 |
| 10 | A00002-19-01 | FLANGE BOLT M6X16 | $2.00 | 1 |
| 11 | A00005-22-04 | FLANGE LOCKNUT M6 | $2.00 | 1 |
| 12 | A00772-04-00 | BRAKE PEDAL CABLE | $8.00 | 2 |
| 13 | A00658-11-00 | LEFT FOOTPEG BRACKET | $12.30 | 1 |
| 14 | A00629-05-00 | LEFT FOOTPEG | $21.00 | 1 |
| 15 | A00630-05-00 | RIGHT FOOTPEG SPRING | $2.00 | 1 |
| 16 | A00620-05-00 | FOOTPEG PIVOT PIN | $2.00 | 2 |
| 17 | A00019-28-01 | COTTER PIN | $2.00 | 2 |
| 18 | A00633-05-00 | BRAKE PEDAL RETURN SPRING | $2.50 | 1 |
| 19 | A00634-05-00 | SIDE STAND SPRING | $2.60 | 1 |
| 20 | A00631-05-00 | RIGHT FOOTPEG | $21.00 | 1 |
| 21 | A00632-05-00 | LEFT FOOTPEG SPRING | $2.00 | 1 |
| 22 | A00659-11-00 | RIGHT FOOTPEG BRACKET | $12.30 | 1 |
| 23 | A00098-28-00 | BRAKE PEDAL BEARING | $5.30 | 2 |
