| Ref. No. |
Part # |
Description |
Qty |
| 21 |
YC110-171-0301-BK |
complète frame SPII 2020 BLACK |
1 |
| 2 |
YC110-181-0501-BK |
Chromoly steel frame body SPI / SPII / SPIII 2020 LACK 22 degrees |
1 |
| |
YC110-01-08-BK |
Cable tie ADJUSTABLE BLACK |
3 |
| 2 |
YC110-2201-02 |
YCF Chain tensioner component Nylon 2020 |
1 |
| 5 |
GB97-d10-W |
Flat washer d10mmxd17mmx2mm for Chain tensioner |
1 |
| 6 |
GB91-d2x25-W |
cotter pin d2.0x25mm for Chain tensioner |
1 |
| 14 |
YC110-1614-06 |
Aluminium rear frame part SPIII 2016 SILVER with YC110-1404-01 |
1 |
| 22 |
YC110-16-066-BK |
set of engine pads Black SPI/SPII/SPIII |
1 |
| |
YC110-0834-01 |
Nord Lock M for Frame pads |
10 |
| |
BT08-M8x25-W |
Hex.Bolt M8x25mm for subframe fixation |
4 |
| 8 |
BT08-M8x20-W |
Hex.Bolt M8x20mm for engine pads (top) |
4 |
| 9 |
BT08-M8x130-W |
Hex.Bolt M8x130mm for engine pads (top) |
1 |
| 10 |
BT08-M8x105-W |
Hex.Bolt M8x105mm for engine pads (botom) |
1 |
| 12 |
GB70.2-M8x20 |
screw M8x20mm |
2 |
| 11 |
GB6187-M8-W |
Self locking nut M8 for frame engine aluminium pads |
2 |
| |
GB6187-M8-W |
Self locking nut M8 |
2 |
| 17 |
YC110-16-051-BK |
foot pegs support left SPI/SPII/SPIII BLACK |
1 |

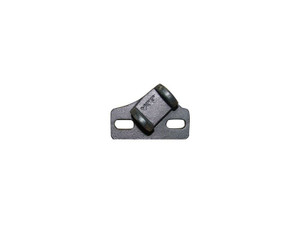

| 18 |
YC110-16-055-BK |
foot pegs support right SPI/SPII/SPIII BLACK |
1 |
| 20 |
GB70.2-M8x25 |
screw M8x25mm |
5 |
| |
GB70.2-M8x50 |
screw M8x50mm |
1 |
| 26 |
GB93-d8-W |
Spring washer d8mm |
5 |
| 27 |
GB97-d8-W |
flat washer d8mmxd16mmx1mm |
5 |
| 30 |
GB6187-M6-W |
Self-locking Nut M6 for mudflap fixation |
1 |
| 24 |
YC110-0460-01 |
Complete Rear shock absorber rubber protection |
1 |
| 28 |
BT08-M6x20-W |
Hex.Bolt M6x20mm for mudflap |
2 |
| 29 |
GB96-d6-W |
Washer d6mmxd18mm for mudflap |
2 |
| 30 |
YC110-03-01 |
Rubber washer d6mmxd18mmx4mm |
2 |
| 31 |
YC110-1404-01 |
Rubber for Subframe d8.2mmxd20.2mmx9mm |
2 |
| |
YC110-1635 |
Complete grease nozzle |
1 |
