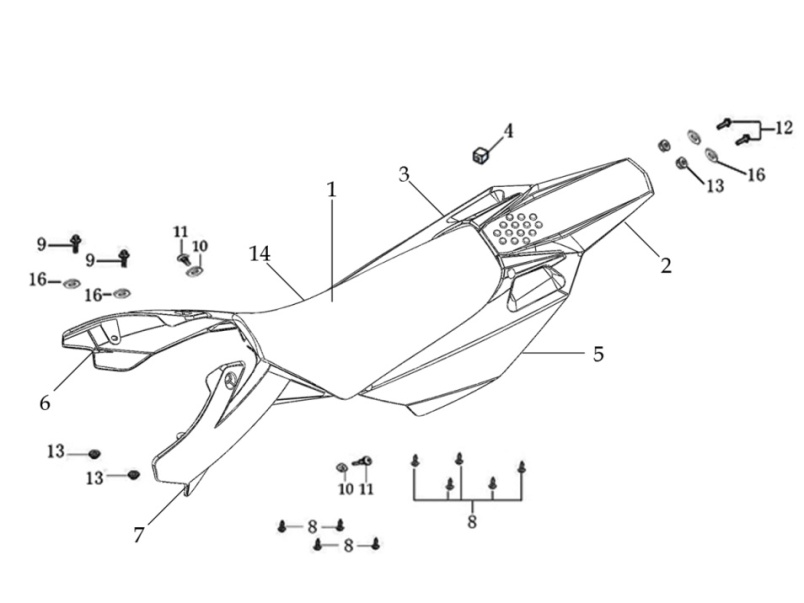

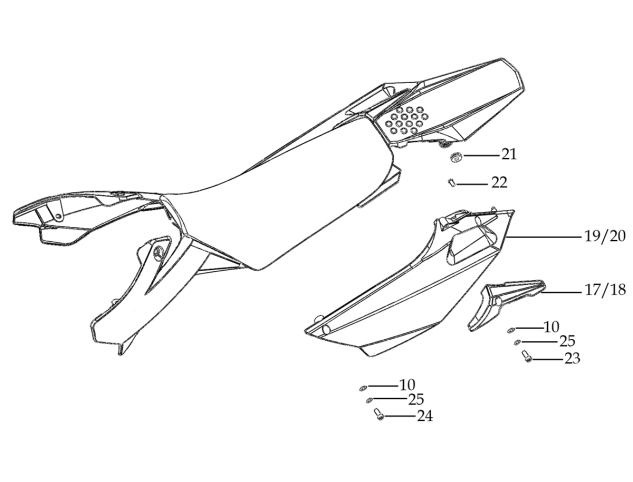

| Ref. No. |
Part # |
Description |
Qty |
| 1 |
PIR-YC110-1401-17 |
YCF Seat assy L=510mm PIRANHA LOGO |
1 |
| 2 |
YC110-14-018-GR |
YCF Rear fender 2016 GREEN with YC110-1404-01 2EA |
1 |
| 3 |
YC110-14-028-GR |
YCF right side plastic assy 2016 GREEN |
1 |
| 4 |
YC110-14-03 |
Cushion for right side plastic |
1 |
| 5 |

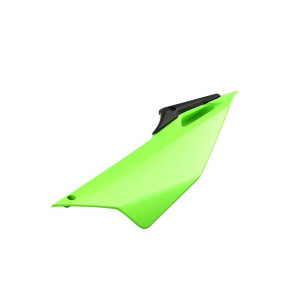

YC110-14-048-GR |
YCF left side plastic assy 2016 GREEN |
1 |
| |
GB819-M5x10-W |
Plus screw M5x10mm |
2 |
| 21 |
YC110-1404-01 |
Cushion for side plastic d8.2mmxd20.2mmx9mm |
2 |
| 6 |
YC110-14-059-GR |
Right shroud SP 2017 GREEN |
1 |
| 7 |
YC110-14-069-GR |
Left side shroud SP2017 GREEN |
1 |
| 8 |
GB845-ST4.8x16-G |
Screw for plastic kit ST d4.8mmx16mm for seat and plastics fixation |
8 |
| 8 |
GB845-ST4.8x20-G |
Screw for plastic Kit ST4.8x20mm |
1 |
| |
GB819-M4x10-W |
Plus screw M4x10mm for Shrouder lower part fixation |
8 |
| 9 |
BT08-M6x20-W |
Hex.Bolt M6x20mm for front shroud fixation |
2 |
| 10 |
YC110-02-13 |
Rubber washer d6mmxd14mmx3mm for shroud fixation on gas tank |
2 |
| 11 |
FB5787-M5x12-W |
hex. Bolt with flanged M5x12mm for shroud fixation on gas tank sides |
2 |
| |
GB96-d5-W |
flat washer d6 for shroud fixation on gas tank sides |
2 |
| |
GB6177-M6-W |
Hex. Flanged nut M6 for front shroud fixation |
2 |
| 12 |
BT08-M6x20-W |
Hex. Bolt e M6x20mm |
2 |
| 16 |
YC110-03-01 |
Rubber washer d6mmxd18mmx4mm for seat fixation on subframe |
2 |
| 24 |
GB96-d6 |
flat washer d6mm for seat fixation on subframe |
2 |
