| Reference |
Part# |
Description |
Qty |
| 8 |
YC110-136-0301-GY |
PILOT / SM150 Muffler& Exhaust pipe assy YCF 94db (1 spring)2020 |
1 |
| 1 |
YC110-13016-GY |
YCF Muffler 94db START L=295mm (1 springs) GREY |
1 |
| 17 |
YC110-13-301 |
Noise reducer (spark arrestor) YCF START |
1 |
| 15 |
YC110-13-32 |
Muffler end cap YCF |
1 |
| |
GB70.2-M5x12 |
Plus screw M5x12mm for muffler end cap |
3 |
| |
GB93-d5 |
Standard spring washer d5mm for muffler end cap |
3 |
| 2 |

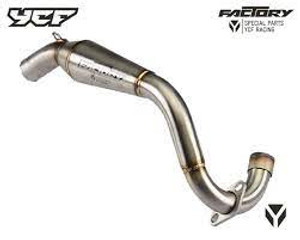

YC110-1302-31 |
Exhaust pipe with protection plate d28 mm PILOT 2020 End length L=120mm |
1 |
| 4 |
18291/152FMH |
Exhaust pipe washer d25.5mmxd32mmx4mm |
1 |
| |
GB6187-M6-W |
Self-locking Nut M6 for exhaust pipe fixation on engine |
2 |
| 12 |
YC110-1312-03 |
Protection for exaust pipe PILOT 2020 |
1 |
| |
BT08-M6x10-W |
Hex.Bolt M6x10mm for protection fixation on exhaust |
3 |
| |
GB97-d6-W |
flat washer d6mm |
3 |
| 7 |
YC110-13-06 |
Hoop for muffler YCF 2020 (FB13-d10xd14x23-W 一个+BT08-M8x40-W 一个) |
1 |
| 6 |
BT08-M8x40-W |
Hex.Bolt M8x40mm for muffler hoop fixation |
1 |
| 20 |
YC110-13-21 |
YCF Muffler spring with rubber |
1 |
