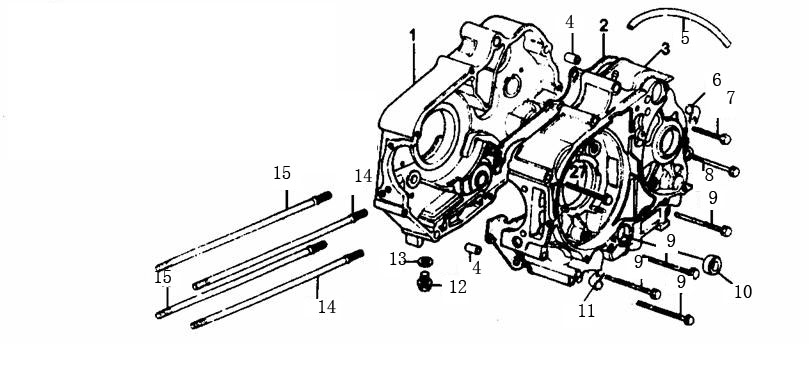

YCF Bigy 150 (Crankcase)
| Ref.No. | Part No. | Description | Quantity |
| 1 | 242A020PW | Crankcase Sub-Assy,RH | 1 |
| 2 | E04B005 | Gasket,Crankcase | 1 |
| 3 | 242A010PW | Crabkcase Sub-Assy,LH | 1 |
| 4 | 97010014 | Oil pump | 1 |
| 5 | D0011C024 | Air pipe | 1 |
| 6 | D00L191BCR | Clamp | 1 |
| 7 | 96006050BCR | Bolt M6×50 | 1 |
| 8 | 96006060BCR | Bolt M6×60 | 2 |
| 9 | 96006065BCR | Bolt M6×65 | 4 |

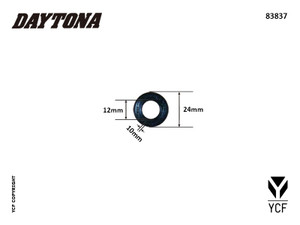

| 10 | D00C026 | Oil seal 11.6×24×10 | 1 |
| 11 | D00L014BCR | Pipe Clamp | 1 |
| 12 | D00E026BX | Drain plug | 1 |
| 13 | D00L022 | Washer | 1 |
| 14 | 206M002 | Bolt B,Cylinder | 2 |
| 15 | 206M001 | Bolt A,Cylinder | 2 |
