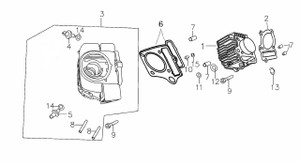

YCF Bigy 150 (Cylinder Assembly)


Ref.No. Part No. Description Quantity
1 2084A038PW CYLINDER BODY 1
2 208B010 CYLINDER BODY SEAL PACKING 1
3 208A000 CYLINDER HEAD ASSY 1
4 D00A001 SUCTION-VALVE PIPE 1
5 D00A002 EXHAUST VALVE PIPE 1
6 2082B008 CYLINDER HEAD SEAL GASKET 1
7 97010012 ASSEMBLING PIN 10 ×12 4
8 208M036 BOLT M6×38 2
9 GB5783 BOLT 3
10 D00L040 OIL SEAL 1
11 208-1-11 OIL SEAL 1
12 D00L033 RECTANGLE SEAL PING 1
13 D00L035 RECTANGLE SEAL PING 1
14 D00C047 O-Ring 9×1.6 2
15 208-1-15 SEAL LVASHER 1
