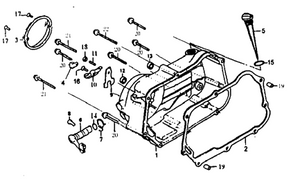

YCF Bigy 150 (Right Crankcase Cover)
| Ref.No. | Part No. | Description | Quantity |
| 1 | D00124A034PW | Right Crankcase Cover | 1 |
| 2 | E04B002 | Gasket.Crankcase Cover,RH | 1 |
| 3 | D015A039PWBHW2 | Clutch Cover | 1 |
| 4 | D00L039 | Wire Clamp | 1 |
| 5 | D00C038 | Dipstick | 1 |
| 6 | D01G010LBX | Operating Shaft,Clutch | 1 |
| 7 | A00H007BX | Spring | 1 |
| 8 | A001G011 | Set Pin | 1 |
| 9 | A00G042 | Control Plate | 1 |
| 10 | A00G041 | Press Plate | 1 |
| 11 | A00G054 | Screw | 1 |
| 12 | A00C012 | Oil Seal 12×21×4 | 1 |
| 13 | D00C016 | Oil Seal 13.7×24×5 | 1 |
| 14 | A00C061 | O-Ring Φ14×1.5 | 1 |
| 15 | D00C060 | O-Ring 18×3.5 | 1 |
| 16 | 81906016BX | ScrewM6×16 |
1 |
| 17 | 81906016BX | ScrewM6×16 | 2 |
| 18 | 617006000BX | Hex Nut M6 | 1 |
| 19 | 97008012 | Dowel Pin 8×12 | 2 |
| 20 | 96006040 | Bolt 6×40 | 5 |
| 21 | 96006080 | Bolt 6×80 | 2 |
| 22 | 96006065 | Bolt 6×65 | 1 |
