| Reference |
Part# |
Description |
Qty |
| 1 |
YC110-1001-1701 |

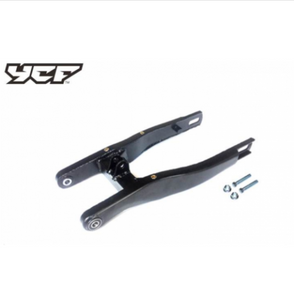

2020 Mono swing arm Steel 420mm d 15 mm with front part weld FOR 330 mm SHOCK ABSORBER |
1 |
| 2 |
YC110-10-015-BK |
Rear brake hose guide 2020 |
1 |
| 17-19 |
DIN7985-M6x16 |
Screw M6x16mm for Rear brake hose guide |
5 |
| 5 |
YC110-10-025 |
Chain slider YCF Aluminium swing arm 420mm PU |
1 |
| 6 |
6902-NTN |
NTN 6902 Bearingfor swing arm d15mmxd28mmx7mm |
4 |
| 24 |
YC110-1007-10 |
Central spacer swing arm Aluminium BIGY/PILOT d16mmxd20mmx149mm |
1 |
| 9 |
YC110-1009-01 |
Swing arm shaft with self lock nut M15 L=240mm |
1 |
| 11 |
YC110-11-074 |
Rear wheel axle d15mmx1.5mmx215mm with Self locking nut M14 |
1 |
| 13 |
GB5783-M8x40-W |
Exterior hex. Bolt M8x40mm |
2 |
| 14 |
FB6170-M8-W |
Hex. Nut M8 |
2 |
| 16 |
YC110-11-08 |
Block axle SILVER H=33mm |
2 |
| 18 |
YC110-1004 |
YCF chain guide assy for High class range BLACK |
1 |
| 32 |
GB70-M6x20 |
Stud screw M6x20mm |
1 |
| 33 |
GB70-M6x30 |
Stud screw M6x30mm for chain guide assy |
1 |
| 15 |
GB70.2-M5x16 |
Plus screw M5x16mm for chain guide assy |
1 |
| 14 |
FB6170-M8-W |
Hex. Nut M6 for chain guide assy |
2 |
| 26 |
420H-110T |
Chain 420H-110T, normal |
1 |
| 27 |
AR-420 |
Chain link H=17mm |
1 |
| 28 |
YC110-1028-02 |
Chain box protection 2020 |
1 |
| |
BT08-M6x12-W |
Hex.Bolt M6x12mm for Chain box protection |
1 |
| |
BT08-M6x16-W |
Hex.Bolt M6x16mm for Chain box protection |
1 |
